WI232+ - Advanced RS232 Serial to Wi-Fi Adapter - 802.11 b/g/n
WI232+ Serial RS232 to WiFi Adapter Image
WI232+ - Advanced RS232 Serial to Wi-Fi Adapter - 802.11 b/g/n
Product Images
WI232+ - Advanced RS232 Serial to Wi-Fi Adapter - 802.11 b/g/n: No Power Supply - DCE (female)
$124.00
5.0 stars 5.0 (4) See customer reviews
SKU: GC-WI232-PLUS-DCE-NOPS
MPN: GC-WI232-PLUS-DCE-NOPS
Manufacturer: Grid Connect Inc.
Stock Status: In stock
Power Supply
-
$124.00
-
$129.00
-
$129.00
-
$129.00
Connector
-
$124.00
-
$124.00
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
The WI232+ is a single-port serial to Wi-Fi adapter that lets you connect serial devices to 802.11b/g/n wireless networks quickly and easily. The WI232+ simplifies connectivity to devices where cabling is prohibited or mobility is required. This next generation of the legacy WI232 adapter provides enhanced software features, a factory reset button, new status LED and a smaller form factor.
Based on the Lantronix xPico™ WiFi® module, advanced security, robust data handling capabilities and high serial speeds are all built in. Using a method called serial tunneling, the WI232+ encapsulates serial data into packets and transports it over 802.11b/g/n wireless networks. By connecting two WI232+ units via a network, virtual serial connections can be extended across your facility or around the world.
Order Summary
SKU |
Power Supply |
Connector |
|---|---|---|
| GC-WI232-PLUS-DCE-110 | 110V | DCE (female) |
| GC-WI232-PLUS-DCE-220 | 220V | DCE (female) |
| GC-WI232-PLUS-DCE-TB | TB | DCE (female) |
| GC-WI232-PLUS-DCE-NOPS | No Power Supply | DCE (female) |
| GC-WI232-PLUS-DTE-110 | 110V | DTE (male) |
| GC-WI232-PLUS-DTE-220 | 220V | DTE (male) |
| GC-WI232-PLUS-DTE-TB | TB | DTE (male) |
| GC-WI232-PLUS-DTE-NOPS | No Power Supply | DTE (male) |
Features
- Web Page Configuration and Web API
- Simultaneous Soft AP and Client Mode
- Support Multiple TCP Connections
- LEDs: Power and Link
- Reset to factory default settings button
- Industrial Temperature Plastic Housing
- DB9 12" molded cable DTE (male) (DTE option only)
- DB9 12" molded cable DCE (female) (DCE option only)
- AC Power adapter included (110V and 220V options only)
- Custom Firmware/WebPages can be added
- OEM versions available
- FCC Certified
Documents and Drivers
Documentation
WI232+ Datasheet
WI232+ User Guide
WI232+ Quick Start Guide
Downloads
Current DeviceInstaller
Current Com Port Redirector
Specifications
Antennas
4.3 inch WiFi Antenna Omni-directional 'Rubber Duck' Antenna, 2.4 GHz, 2.5 dBi, Reverse SMA, 50 Ohm, 20W
Baud Rate
up to 921K
Certifications
RoHS2, CE (pending), UL (pending)
Characters T
7 or 8 data bits
Connector(s)
- Serial: DB9 - DTE (male). Null Modem adapter included (DTE Option)
- Serial: DB9 - DCE (female). Null Modem adapter included (DCE Option)
- Network: Antenna (RP-SMA)
Control Signals
DTR, DSR modem controls
Data Rate
300 bps to 921,600 bps
Dimensions
- Housing: 63.5 x 42.67 x 21.7 mm (2.5" x 1.58" x .794") - Case without Cable and Antenna
- Cable Length (including DB9 connector): 460.375mm (18.125 inches)
Firmware
Upgradeable OTA
Flow Control
XON/XOFF, RTS/CTS, None
Humidity
0% to 90% non-condensing
Included in Box
- WI232+
- Antenna
- Null Modem
- Power Supply (110V and 220V options only)
- Documentation CD
Indicators LED
- WLAN link
- Power
Interface(s)
- 802.11 b/g and 802.11n (single stream)
- WLAN Interface (2.4 GHz only)
- IEEE 802.11 d/h/i/j/k/w/r
- WPS2.0 Support
Management
- Web Server - Landing Page
- Field upgradable firmware (OTA)
MPN
GC-WI232-PLUS
Operation Modes
Simultaneous Soft AP and Client Mode
Ports
DB9 Connector
Power
- .99 W. +5 to +30VDC
- Wall supply Option 9VDC – 500ma

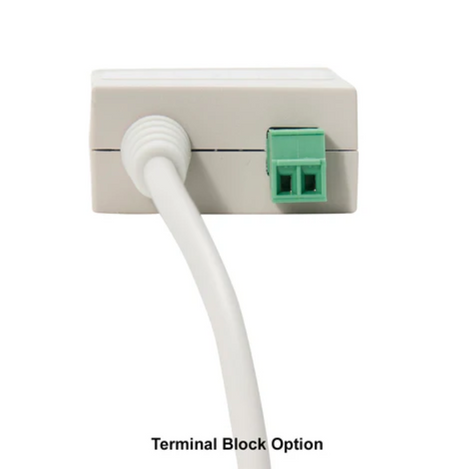

- Terminal Block Option (direct DC power)
- Pin 9 – DB9 connector (from serial device)
Product Weight
62.4 g (2.2 oz) - Approximate, Without Power Supply
Protocols
ARP, TCP/IP, UDP/IP, ICMP, SNMPv1, DHCP, DNS, and AutoIP
Security/Protection
256-bit AES Encryption
Serial Interfaces
374,373
Serial Types
372
Software
Virtual COM port software
Stop Bits
1 or 2
Temperature Range
-40°C to +85°C (-40°F to +185°F)
