Wi232 - Serial to Wireless 802.11b/g (NOT AVAILABLE)

$199.95

Leave a review

SKU: GC-WI232-DTE

MPN: GC-WI232

Manufacturer: Grid Connect Inc.

Stock Status: Out of Stock

Delivery: Not available
Qualifies for Free shipping

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

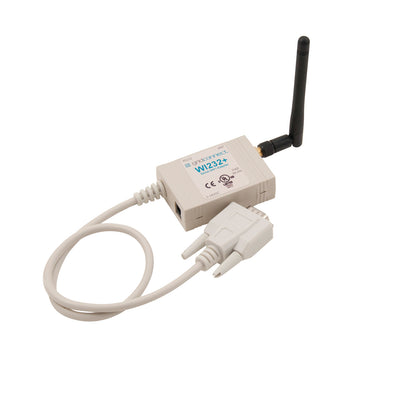

The next generation of this product is available: WI232+

---------------------------------------

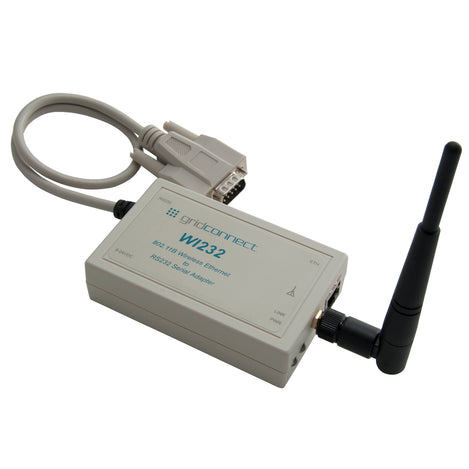

WI232 is a one-port device server that lets you connect serial devices to 802.11b/g wireless or 10/100M Ethernet networks, quickly and easily. FCC certified.

The WI232 can be used to for 3 different types of applications:

  • Serial (RS232) to WiFi (802.11b/g) - By merging wireless communications device server technology, the WI232 simplifies connectivity to devices where cabling is prohibited or mobility is required. Serial RS232 flexibility, robust data handling capabilities and high serial speeds are all built in.
  • >Serial (RS232) to Ethernet (802.3 10/100 BaseT) - The WI232 also features an Ethernet port, so if WiFi is not available, you can still connect your RS232 serial device to your Network!
  • Ethernet (802.3) to WiFi (802.11b/g) - The WI232 can also be used as an Ethernet to WiFi Bridge, allowing you to make your Ethernet enabled device to be WiFi 802.11b/g enabled!

Advanced security, robust data handling capabilities and high serial speeds are all built in. Using a method called serial tunneling, the WI232 encapsulates serial data into packets and transports it over 802.11b/g wireless networks. By connecting two WI232 units via a network, virtual serial connections can be extended across your facility or around the world.

The WI232 can be used in either of two wireless modes, Infrastructure Mode, or Ad-hoc Mode.  When in Infrastructure Mode, one or more WI232's can participate in any standard wireless network, created by WiFi Routers or Access Points:

When in Ad-Hoc Mode, a WiFi Router or Access Point are not needed.  Two WI232's can be connected wirelessly in a point-to-point configuration:

Features

  • Utilizes Lantronix WiPort Technology
  • FCC Certified
  • Custom Firmware/WebPages can be added
  • Industry standard 802.11b/802.11g wireless interface
  • WiFi Range 328 feet indoors
  • LEDs: 802.11b/g, Ethernet activity, Status, Power
  • Web Server, configuration and user webpages
  • DB9 12" molded cable DTE (male), female adapter included
  • AC Power adapter included
  • Plastic housing
  • OEM versions available for small minimum quantity
  • Includes CD with Manuals, PC Setup and Virtual COM Port Redirector Software

Documents and Drivers

WI232 Data Sheet

WI232 User Guide

WI232 Application Note

WI232 Quick Start

WI232 Product FAQ


Downloads:
WI232 (GC-WI232-DTE) Product CD (ZIP File)

Current DeviceInstaller (Link to Lantronix site)

Current Com Port Redirector (Link to Lantronix site)

Specifications

CHARACTERS T

7 or 8 data bits

CONNECTORS

  • Serial: DB9 - DTE (male). Null Modem adapter included
  • Network: Antenna (RP-SMA)

CONTROL SIGNALS

DTR/DCD, CTS, RTS

CPU

Based on the DSTni-EX enhanced 16-bit, 48MHz or 88MHz, x86 architecture

DATA RATES T

300 bps to 921,600 bps

DIMENSIONS

96 x 60 x 25 mm (3.75" x 2.34" x 1") - Case without Cable and Antenna

DISCONTINUED

480

FIRMWARE

Upgradeable via TFTP and serially

FLOW CONTROL

XON/XOFF, RTS/CTS

INCLUDED SOFTWARE

MS Windows-based DeviceInstaller software device installer and MS Windows-based COM Port Redirector

INDICATORS LED

  • 802.11 b/g activity
  • Ethernet activity
  • Status
  • Power

INTERFACES

Network: 802.11 b/g

MANAGEMENT

SNMP, Telnet, serial, internal web server, and Microsoft Windows-based utility for configuration

MEMORY

256KB SRAM and 2048KB flash

MPN

GC-WI232

PARITY

odd, even, none

PRODUCT WEIGHT

162 g (5.7 oz) - Approximate, Without Power Supply

PROTOCOLS

WPA, WEP, ARP, TCP/IP, UDP/IP, ICMP, SNMP, TFTP, Telnet, DHCP, HTTP, and AutoIP

SECURITYPROTECTION

  • IEEE 802.11i - PSK with AES-CCMP Encryption
  • WPA - PSK
  • TKIP Encryption
  • 64/128-bit WEP

SERIAL INTERFACES

373

SERIAL TYPES

372

STOP BITS

1 or 2

STORAGE CAPACITY

1.2 MB for web pages

STORAGE SPECIFICATIONS

Temperature: -40°C to +85°C (-40°F to +185°F)

TEMPERATURE RANGE

Operating: -40°C to +70°C
