xPico-MB - Modbus Network Module

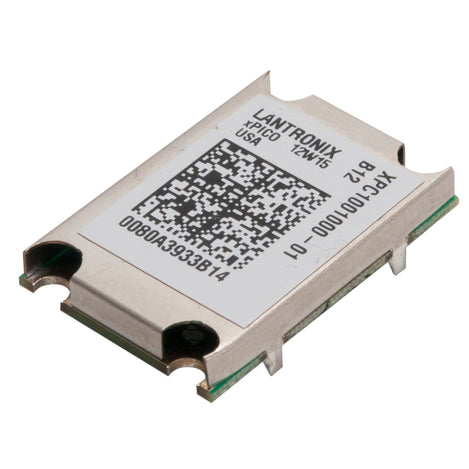

Xpico Modbus Network Device Server Module
xPico-MB - Modbus Network Module
Product Images
xPico-MB - Modbus Network Module
$28.52
SKU: GC-XPICO-MBTCP-MB
MPN: GC-XPICO-MBTCP-MB
Manufacturer: Grid Connect Inc.
Stock Status: In stock
We Have You Covered
Product Information
Product Description
The incredibly small and low cost xPico-MB, provides the power of an Xport-MB with the lower price point of a chip solution. It is perfect for integrating industrial Ethernet connectivity onto an existing design with a serial interface, as it adds full serial port control and supports bridging for Modbus TCP, ASCII, and RTU. In contrast with the Xport-MB, the xPico-MB has more flexible mounting options using a SMT Connector and external Ethernet interface.
Unlike a chip solution, the Xpico-MB product requires fewer engineering hours and includes a full IP stack, web server and a complete Modbus protocol bridge application.
To evaluate both the hardware and Modbus software of the xPico-MB module, use the xPico Evaluation Kit. Just swap the included xPico module with the xPico-MB module. To evaluate just the Modbus software, the xPico-MB is used in the Net232+ Modbus RS232 Adapter.
Grid Connect offers custom engineering services to customize the xPico-MB to your exact requirements. For more information on a custom xPico-MB solution please contact us.
Features
- Small Footprint (24 x 16.5mm) allowing for design flexibility
- Includes built in Modbus protocol bridge application, Web Server and Full IP Stack
- 8 Digital General Purpose I/O (GPIO) pins accessible via Modbus/TCP
- Serial Data Speeds up to 115 Kbps
- Extended Temperature Range: -40° to + 85° C
Documents and Drivers
Documentation
Modbus Protocol User Guide
xPico Integration Guide
Specifications
Characters T
7 or 8 data bits
Connector(s)
40-pin Board-to-Board SMT Connector
Control Signals
DTR/DCD, RTS/CTS
CPU
Based on the DSTni-EX Enhanced 16-bit, 48MHz or 88MHz x86 Architecture
Data Rate
300bps to 115,200 bps
Dimensions
24mm (L) x 16.5mm (W)
Interface(s)
Serial: CMOS (Asynchronous, 5V tolerant)
Internal Web Server
Storage Capacity: 384KB for Web Pages
Management
SNMP, Telnet, Serial, Internal Web Server, and Microsoft Windows based utility for web configuration
Memory
256KB SRAM, 512KB Flash
MPN
GC-XPICO-MBTCP-MB
Parity
Odd, Even, None
Programmable IO
8 PIO pins (software selectable)
Protocols
Modbus, TCP/IP, UDP/IP, ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, AutoIP
Stop Bits
1 or 2
Temperature Range
-40°C to +85°C (-40°F to +185°F)
Voltage
Input: 3.3VDC
