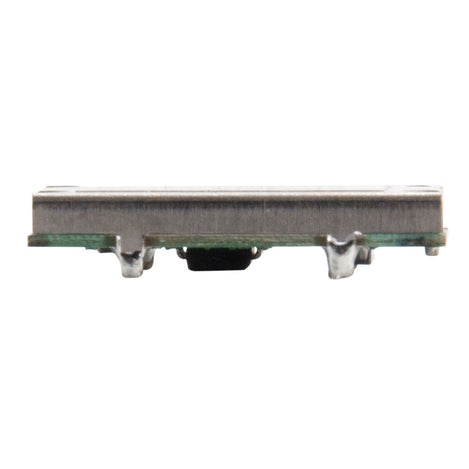

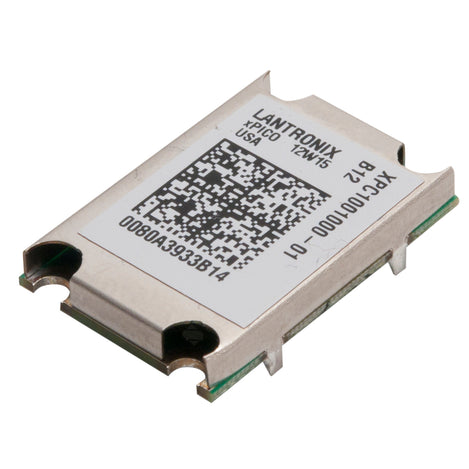

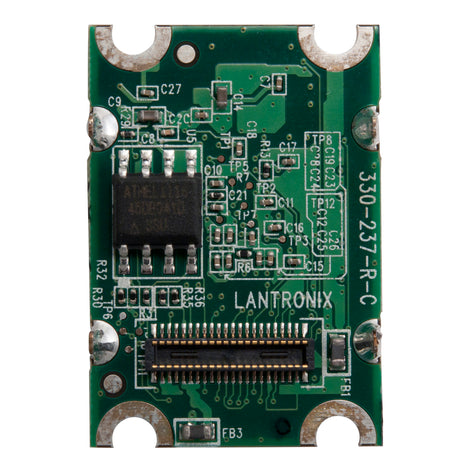

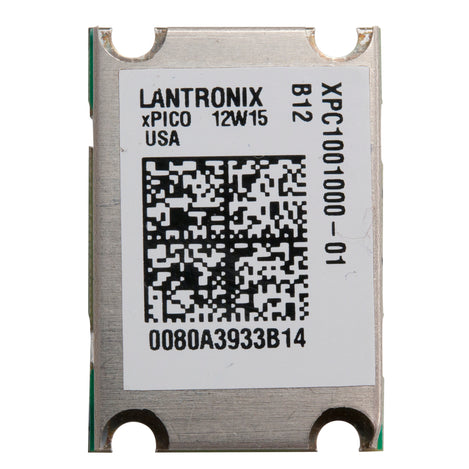

Product Images
xPico – Small Low Cost Embedded Serial Connectivity
$27.78
SKU: GC-XPICO
MPN: XPC100100B-01
Manufacturer: Lantronix
Stock Status: In stock
We Have You Covered
Product Information
Product Description

Seeking a compact networking module to add connectivity with minimal engineering? The xPico Module offers an ideal solution. As a leading embedded networking solution from Grid Connect and Lantronix, the xPico Module continues their tradition of excellence. Combining the capabilities of an XPort with the affordability of a chip solution, the xPico Module delivers powerful performance in a compact networking module.
The xPico Module facilitates embedded serial connectivity, seamlessly integrating Ethernet into designs with serial interfaces. Equipped with a full IP stack, built-in web server, and comprehensive device server application, the xPico Module ensures robust serial communication. The included software set provides superior connectivity while allowing for simple remote access into device data. For enhanced security in industrial networking, the xPico Module features built-in 256-bit AES encryption.
Expanding upon the XPort, the xPico Module offers additional pins for improved serial communication in your circuit designs. This adds full serial port control with pins for both DTR/DCD and RTS/CTS as well as 6 software selectable programmable I/O pins.
The xPico sets itself apart from existing embedded serial solutions in the market with its incredibly small size and low price. This design flexibility enables easy integration of Ethernet connectivity, minimizing the engineering effort typically required for chip solutions. The xPico Module's built-in applications reduce development effort, helping you minimize costs and accelerate time to market.
Expert Support
Grid Connect’s knowledgeable engineers provide complete technical support, including phone and online chat assistance, during regular business hours.
Customization Available
Grid Connect offers custom engineering services to customize the xPico to your exact requirements.
NDAA Compliant
This product is NDAA compliant, making it a trusted choice for use in government, military, and other security-sensitive applications. Its compliance ensures it meets U.S. regulations for secure and reliable industrial connectivity solutions.
Features
- Small Footprint (24 x 16.5mm) allowing for design flexibility
- Includes built in device server application, Web Server and Full IP Stack
- 256-bit AES Encryption standard
- Serial Data Speeds up to 921 Kbps
- Extended Temperature Range: -40° to + 85° C
- 5 Year Limited Warranty
Documents and Drivers
Documentation
Xpico Product Brief
Xpico User Guide
xPico Integration Guide
Downloads
Current DeviceInstaller
Current Com Port Redirector
Specifications
Certifications
ROHS
Characters T
7 or 8 data bits
Connector(s)
40-pin Board-to-Board SMT Connector
Control Signals
DTR/DCD, RTS/CTS
CPU
Based on the DSTni-EX Enhanced 16-bit, 48MHz or 88MHz x86 Architecture
Data Rate
300bps to 921,600Kbps
Dimensions
24mm (L) x 16.5mm (W)
Flow Control
XON/XOFF, RTS/CTS
Included Software
- MS Windows-based DeviceInstaller
- MS Windows-based Com Port Redirector
Interface(s)
Serial: CMOS (Asynchronous, 5V tolerant)
Internal Web Server
Storage Capacity: 384KB for Web Pages
Management
SNMP, Telnet, Serial, Internal Web Server, and Microsoft Windows based utility for web configuration
Memory
256KB SRAM, 512KB Flash
MPN
XPC100100B-01, XPC100100S-01
Network Interface
Ethernet 10Base=T or 100Base-TX (Auto-sensing)
Parity
Odd, Even, None
Product Weight
.15 Lbs
Programmable IO
6 PIO pins (software selectable)
Protocols
TCP/IP, UDP/IP, ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, AutoIP
Security/Protection
256-bit AES Encryption
Stop Bits
1 or 2
Temperature Range
-40°C to +85°C (-40°F to +185°F)
Voltage
Input: 3.3VDC
Warranty
5 Year Limited
