AC Voltage Sensor

$140.00

Leave a review

SKU: GC-AK-ACV-00

MPN: acv00

Manufacturer: AKCP

Stock Status: In Stock

Delivery: Ships same or next business day
Qualifies for Free shipping

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

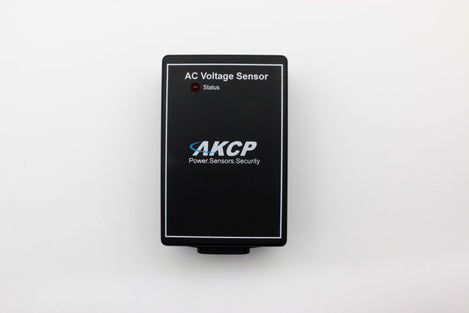

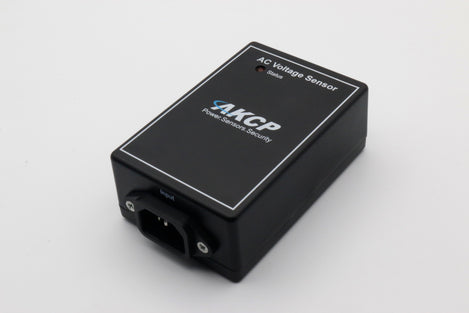

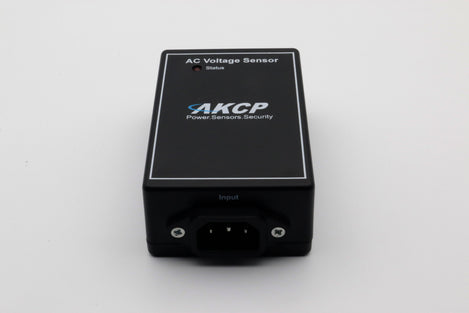

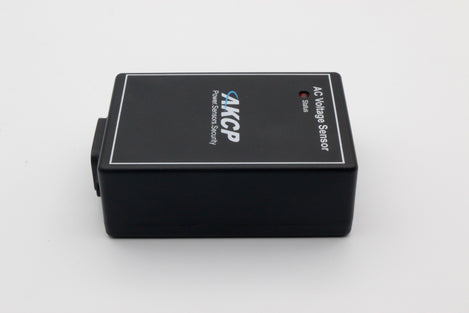

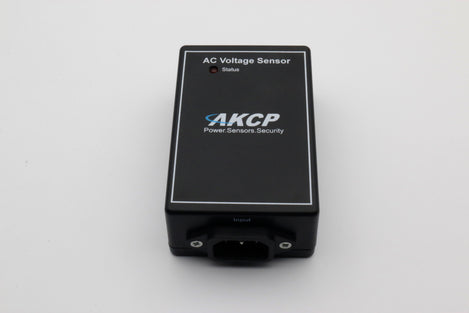

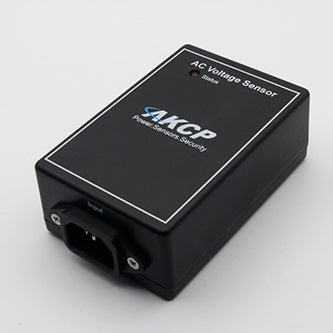

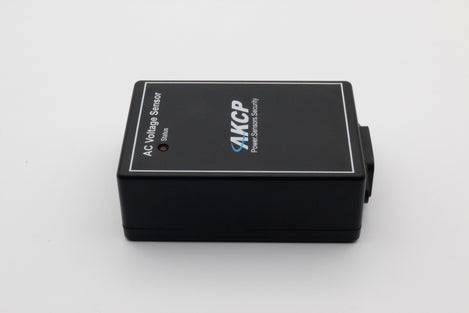

The AC Voltage Sensor detects the presence or absence of line voltage. This is useful to tell when the UPS is running on battery power. This sensor is designed for use worldwide.

The sensor plugs into any of our intelligent sensorProbes and SecurityProbes. The sensor can be placed up to 1,000 feet from the SensorProbe using standard CAT5 cable (5 ft cable provided).

The AC Voltage Sensor indicates an ALARM/NORMAL condition in software and also via an LED mounted on the sensor.  There is an SNMP interface for getting the alarm/normal status. SNMP traps are sent when critical conditions occur. SNMP polling via 'get' is available to retrieve existing status and configuration parameters. The Web browser interface is also available to display the status and configuration parameters.

When an alarm condition is activated the description and location of the fault can be sent via email, page or traps.

Features

  • CAT5 Enabled Sensor allows you to add up to 1000' of CAT5 cable to the sensor
  • LED indicator on sensor shows if voltage present
  • SensorProbe autodetects the presence of the voltage sensor
  • Up to 2 voltage detector per sensorProbe2, up to 8 on the sensorProbe8
  • Full autosense including disconnect alarm

Documents and Drivers

Documentation

AKCP AC Voltage Sensor Datasheet View (PDF)
AKCP Sensor Selection Summary View (PDF)

Specifications

CAT5 ENABLED

Allows you to add up to 1000' of CAT5 cable to the sensor

COMMUNICATIONS CABLE

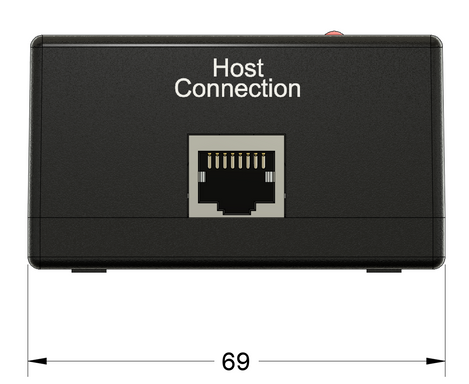

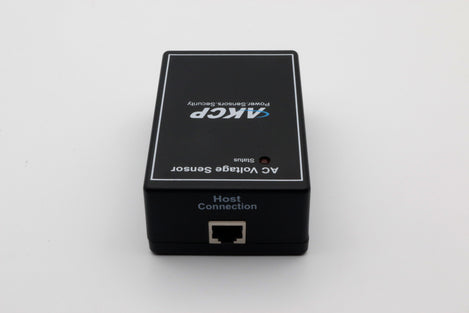

RJ-45 jack to sensor using UTP CAT5 wire.

INDICATORS LED

LED indicator on sensor shows if voltage present.

MEASUREMENT INDICATION

Alarm or Normal

MEASUREMENT RANGE

Detects voltage at 50V AC to 250 VAC.

MEASUREMENT RATE

Multiple readings every second.

MPN

acv00

POWER SUPPLY

Powered by the sensorProbe. No additional power needed.

PRODUCT POWER SUPPLY

Powered by the sensorProbe. No additional power needed.

TYPE

Sensor: Open/closed contact switch
