securityProbe 5ESV Advanced Monitoring System

$1,420.00

Leave a review

SKU: GC-AK-SEC5ESV

MPN: SEC5ESV

Manufacturer: AKCP Co Ltd.

Stock Status: Out of stock (more on the way)

Delivery: Order now and we'll deliver when available
Qualifies for Free shipping

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

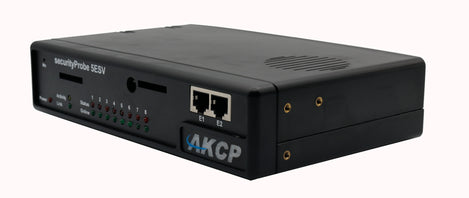

The AKCP securityProbe 5ESV Base Unit monitors and controls advanced environmental, access control, power and security monitoring systems. It is compatible with the full line of AKCP intelligent sensors offered by Grid Connect. Directly connect 8 intelligent sensors to the 5ESV or combine with the E-Sensor 8 (GC-AK-ESENSOR8) or the E-OPTO 16 (GC-AK-EOPTO16) and connect up to 500 intelligent sensors. Also, connect and control 4 high definition digital video cameras with the ability to remotely stream video to a smartphone.

Powered by an iMX25 processor running Linux, the securityProbe 5ESV is loaded with powerful system management tools. Configure large sophisticated applications with a customizable easy-to-use web-based user interface. Monitor the system quickly at a glance with advanced real-time sensor graphing capabilities. Create custom event notifications with a detailed message filtering interface and a number of alert options. The securityProbe 5ESV seamlessly integrates with many leading Network Management Systems (NMS) via SNMPv1 and encrypted SNMPv3.

The securityProbe 5ESV has 128 megabytes of built-in NAND Flash memory that can be expanded with the addition of a 2 gigabyte SD card. An array of interface ports are designed into the 5ESV including: Ethernet, RS485, Autosense RJ-45, USB 2.0, Mic In and Mic Out. Interface ports are used to connect any AKCP intelligent sensor, digital video cameras, an external GPRS/Bluetooth/Wi-Fi wireless networking device and AKCP expansion modules. The 5ESV is an advanced complete monitoring solution and is scalable to meet future system requirements.

Support: The knowledgeable and experienced engineers at Grid Connect provide complete technical support for the AKCP securityProbe family of monitoring devices. We offer phone support and on-line chat support during regular business hours.



SecurityProbe 5ESV Notification Example

SecurityProbe 5ESV Notification Example. Cameras and sensors plug into the securityProbe5ESV. Through sSecure Ethernet Link or GPRS. sensor threshold configurations and graphs and reporting functions can be viewed on any device. Notifications can be sent via SMS or MMS to smart phones.

Features

  • Complete Environmental, Access Control and Security Solution for up to 500 Intelligent Sensors
  • Easy-to-use Web Interface for Configuration, Display and Live Video
  • Connect, Control, Display and Record up to 4 High Definition Digital Cameras
  • Robust Integration with Industry Leading Network Management Systems (SNMPv1 and Encrypted SNMPv3)
  • Full Modbus Support (Master/Slave, RTU and TCP)
  • Compatible with all of the AKCP/Grid Connect Intelligent Sensors
  • Receive Email Event Notifications and Stream Video and Sensor Data to Cellphone
  • Extensive Event Filtering Capabilities
  • Flexible and Expandable with a large set of Interface Ports
  • Extendable up to 1,000 Feet with Daisy Chained Expansion Modules (E-Sensor 8/ E-OPTO 16)
  • Virtual Sensors Extend the Reach and Capabilities to Monitor SNMP Equipment
  • Built-in SD Card Slot for Storage (2 Gig Max)
  • Support for External GPRS/Bluetooth/Wi-Fi Wireless Adapters
  • Built-in and Customizable Sensor Graphing and Logging
  • Compatible with AKCP DIN and Rack Mount Trays
  • Free Firmware Updates

Documents and Drivers

Documentation

securityProbe 5ESV Brochure & Technical Specifications

Downloads

SecurityProbe5E Firmware 20200402 - Major Update
Major firmware update from AKCP extends the life of the securityProbe5E; it includes a few bug fixes and addresses several security vulnerabilities.
IMPORTANT NOTE: This firmware should ONLY be used on the securityProbe 5E, 5ES / 5ESV, X20 and the X60 “Standard” base units that use the newer iMX25 processor and NOT on the securityProbe 5E, the 5E-X20 or the 5E-X60 base units that use the older PXA processor. You can check the processor type in the unit's web UI >> Help >> About securityProbe.

Specifications

Audio Connection

  • Audio In: 2.5” Jack (Analog)
  • Audio Out: Ext. Speaker Out, 2.5” Jack (Analog); Mic Out, 2.5" Jack (Analog) - for modem application

CPU

AKCP I.MX25 Processor

Dimensions

21.6 x 13.8 x 4.6 cm (8.5 x 5.43 x 1.8 in)

Humidity

20% to 80% non-condensing RH

Indicators LED

Power, Network Connectivity, Sensor Online, Threshold Status

Interface(s)

  • (1) RJ-45 10/100 Mbps Ethernet Port
  • (8) RJ-45 Sensor Ports
  • (2) RJ-45 Expansion Ports
  • (4) Digital Video Ports USB 2.0
  • (1) USB 2.0 Port
  • (4) PTZ Two Pin Controllers
  • Audio In: 2.5” Jack (Analog)
  • RS485, 2 Pin Terminal Box (for MODBUS)

Memory

  • 128 M NAND Flash
  • SD card slot (2 Gig Max)

Mounting

Rack Mount (Brackets included)

Compatible with AKCP's DIN and Rack Mount Trays

MPN

SEC5ESV

MBTF

400,000 Hours

Operating System

95

Power

7.0 - 9.0 VDC, 3Amp

Power Consumption

Typical: 3.375W, 0.45A

Product Weight

1.1 kg - 2.4 lbs

Protocols

SNMPv1, SNMPv3, TCP/IP, HTTP, HTTPS, Telnet, PHP, Nagios

Security/Protection

Supports Encrypted SNMPv3

Temperature Range

-35ºC to 55ºC (-31º to 131ºF)
