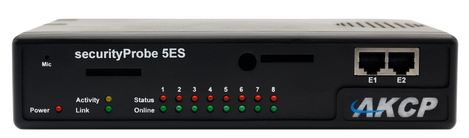

securityProbe 5E Standard
securityProbe 5E Standard
securityProbe 5E Standard
Manufacturer: AKCP Co Ltd.
We've Got You Covered
The securityProbe 5E Standard is the new cost effective way of getting all of the benefits of the securityProbe 5E, without the video. For large systems, using the securityProbe 5E and E-sensor8 8-port expansion modules, lowers your cost per sensor port when compared to using 3 or more SensorProbe8's - plus you get all of the advanced securityProbe5E features as well!
Using our range of Intelligent Sensors you can monitor the physical environment and receive alerts for intrusion, security breaches, high or low temperature, smoke, water leaks, power outages and more.
Up to 8 Intelligent Sensors can be connected to the securityProbe 5E Standard. When plugged in, sensors automatically configure themselves and go 'online'. Using the either the E-sensor8, or the E-opto16 expansion modules, up to 600 sensors can be connected to a single unit. Our easy-to-use port numbering system allows you to setup the securityProbe 5E Standard within minutes. hen online, the sensors use their 4 levels of threshold checking and report any status change.
Notifications and alarms can be dependent on the states of multiple sensors, and can be configured to escalate in severity over time. The notification system can alert you of a problem via email, SMS (text) messages and telephone calls (additional hardware required), or send a message to any commercial network monitoring system using SNMP traps. The securityProbe 5E Standard can automatically switch a relay on or off, wake-up or shutdown a remote server, send data via FTP, send a FAX, run your custom script and many more versatile functions.
The securityProbe 5E Standard can automatically push out the complete status of the unit and sensors via the Heartbeat Message feature. This can be setup to be sent through e-mail, SMS or SNMP traps. A HTTP get script can also be used, allowing the data to be pushed to a web server.
The securityProbe 5E Standard utilizes the Linux Operating System running on an iMX25 CPU. It features a 2 Gigabyte SD card to provide greater capacity.
The securityProbe 5E Standard provides advanced monitoring over your network. It is TCP/IP compliant and runs the lighttpd web server including https (SSL), Bash, Perl, Telnet, PHP, Email and Nagios.
The securityProbe 5E Standard has an easy-to-use web-based user interface for sensor configuration, data collection and extensive graphing. Complete SNMP functions such including SNMP v3 encryption are also supported. The web-page interface is written in PHP, thus allowing the end-user to make changes, such as translating the text into other languages.
The securityProbe 5E Standard also supports Modbus Master / Slave, Modbus RTU and Modbus TCP, creating a unique, easy to configure Modbus to SNMP gateway.
The securityProbe 5E Standard has a battery backed time of day clock for accurate time stamping of events.
- Notifications via Email, SMS/MMS, SNMP, and many more methods
- Monitor up to 600 Sensors using E-Sensor8 and E-Opto16 Expansion Units
- Compatible with the full selection of AKCP Intelligent Sensors
- Built in data logging and graphing
- Access Control Options via Door Control Unit (2 Per Unit, Up to 8 Per securityProbe 5E Standard)
- Connectivity options with GPRS/GSM Model, Bluetooth and WiFi USB Adapters
- Uses a Linux OS for stability and flexibility
- Modbus Support: Modbus Master/Slave, Modbus TCP, and Modbus RTU
- Virtual Sensor Support for monitoring Power, Network Devices, Modbus, and other SNMP devices.
- Integration with Network Management systems using SNMPv1 and Encrypted SNMPv3.
- Free Firmware Updates and Utilities provided by AKCP
Documents and Drivers
securtiyProbe 5E Standard Brochure
SecurityProbe5E Firmware 20200402 - Major Update
Major firmware update from AKCP extends the life of the securityProbe5E; it includes a few bug fixes and addresses several security vulnerabilities.
IMPORTANT NOTE: This firmware should ONLY be used on the securityProbe 5E, 5ES / 5ESV, X20 and the X60 “Standard” base units that use the newer iMX25 processor and NOT on the securityProbe 5E, the 5E-X20 or the 5E-X60 base units that use the older PXA processor. You can check the processor type in the unit's web UI >> Help >> About securityProbe.

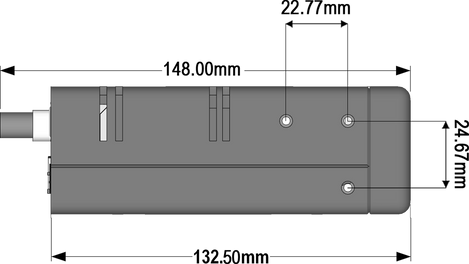

8.5" x 5.43" x 1.80
20% - 80% (Non-Condensing)

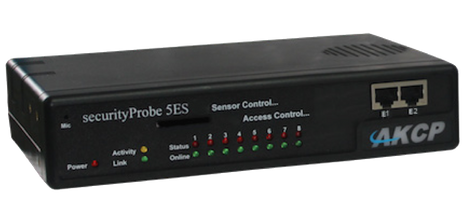

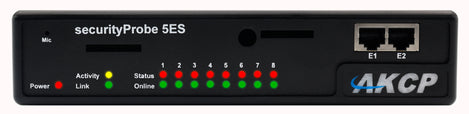

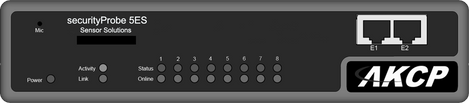

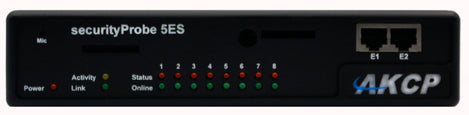

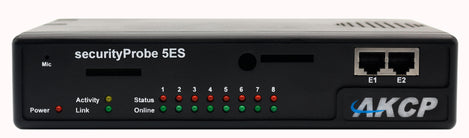

Power, Network Connectivity, Sensor online and Threshold status
Audio Output:Ext. Speaker Out, 2.5” jack (Analog); Mic Out, 2.5" jack (Analog) - for modem application

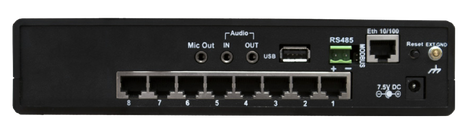

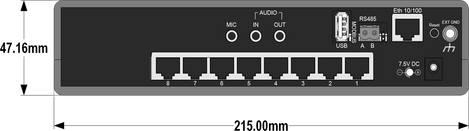

- 8x RJ-45 Sensor Ports; 1x USB port (Version1.1); Audio In (Analog) 2.5" jack; RS485, 2 Pin Terminal box, (used for Modbus)
- Expansion Ports: 4x RJ-45 Expansion Ports; 115.2K BPS Data Transfer Rate; Simultaneous functionality between Expansion Ports & RS485 port threshold status
1U Rack Mount Standard Rack mount brackets included
7.0 – 9 VDC, 3 Amps
Typical 6.150 Watt, 0.82A
-33°C to +55°C (-27.4°F to +131°F)
