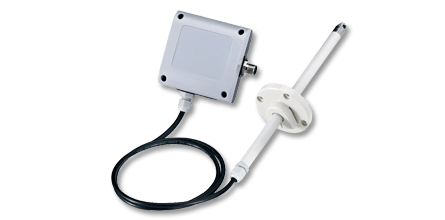

Air Velocity Transmitter Sensor

$348.00

Leave a review

SKU: GC-AK-AVT-00

MPN: AVT00

Manufacturer: AKCP Co Ltd.

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the continental US

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The AKCP Air Velocity Transmitter sensor is designed for systems that generate heat, and a steady flow of air is necessary to dissipate this heat in order to maintain system reliability and safety.

By placing this sensor in the path of the air stream, the user can monitor the status and the amount of the flowing air. The sensorProbe or securityProbe web interface shows this information using a percentage and graphical display. In addition, to an on/off indication, the analog values are graphed over a period of time. For example, if the air flow decreases the web interface will show an indication of change over time.

The sensor has its own SNMP OID for alarm/normal status and for getting the current analog value. SNMP traps are sent when critical. Polling via SNMP get is also available.

Features

  • On/off and % thresholds alarm signal of airflow
  • Airflow data graphically displayed of over time
  • Accurate, cost effective flow sensing
  • Includes Duct mounting bracket
  • Base unit auto detects the presence of the airflow sensor
  • Up to 2 airflow sensors per sensorProbe2, 8 per sensorProbe8 and securityProbe
  • Extendable cable length up to 60 feet using CAT5 extension cables

Documents and Drivers

Documentation

Air Velocity Transmitter Sensor Datasheet

Specifications

Air Flow Measurement

  • 0~10 m/s
  • ±3% FS accuracy

Communications Cable

RJ-45 jack to sensor using UTP CAT5 cable

Dimensions

  • 80 x 80 x 38 mm (3.15 x 3.15 x 1.50 inches)
  • Probe length : 224 mm

Humidity

Min. 20% – Max. 80% (Non-Condensing)

Material

Stainless Steel

Mounting

For Duct Mounting

Power

External 24VDC power supply

Power Consumption

Typical 3.6Watt, 150 mA

Sensor Type

Thermal Flow Chip

Temperature Range

0°C to +50°C (32°F to +122°F)

Working Range

6%~100% of F.S.
