$189.00

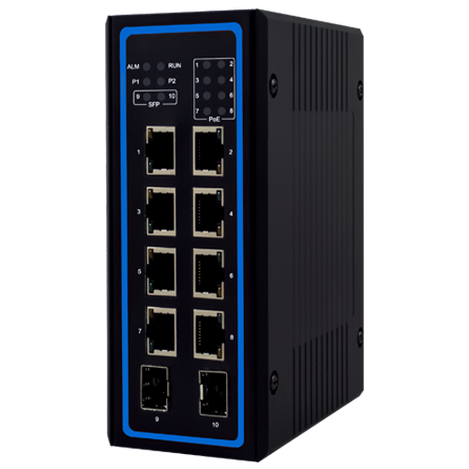

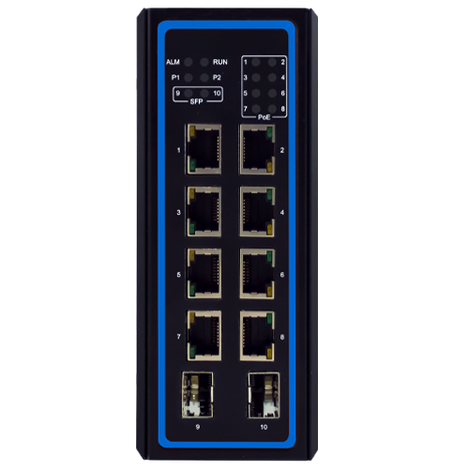

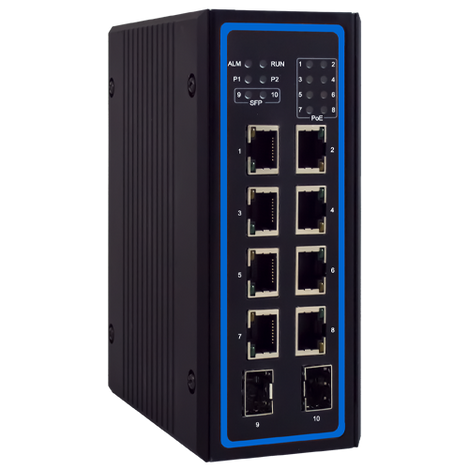

ATOP EHG6410 Industrial 10-port Unmanaged Gigabit Switch, Optional PoE
ATOP EHG6410 Industrial 10-port Unmanaged Gigabit Switch, Optional PoE
Product Images
ATOP EHG6410 Industrial 10-port Unmanaged Gigabit Switch, Optional PoE: 100/1000Mbps - No PoE
$479.00
SKU: GC-ATOP-EHG6410-2SFP-D
MPN: 1P1EHG6410000AG
Manufacturer: Atop Technologies Inc.
We Have You Covered
Product Information
Product Description
The EHG6410 model features 8 x 10/100/1000BASE-T(X), which supports a port configuration mix of up to 8 x non-PoE ports and either 4 x or 8 x PoE ports, as well as either an additional 2 x 100 BASE-FX / 1000 BASE-X ports with SFP slots, totaling 10 x ports altogether.
Full configuration options are available in the ordering information.
Industrial Grade Design
With its modern, slim, and flat design to minimize surface area usage, this switch series is ideal for demanding industrial applications that require compact solutions to deliver network performance.
Supporting a wide operating temperature range of -40°C to 75°C and being compliant with essential sections of UL/CB(IEC) 62368-1, and MIL-STD-810F, this switch series is a powerful compact device that can perform in various environments under a variety of conditions, such as power input voltage, shock, drop and vibration.
PoE Voltage Booster with PoE Ports
As part of its compact design, this switch series is available with an optional voltage booster for PoE end devices. Available on the 24V models, the PoE Voltage Boost raises the input voltage of power inputs from as low as 12V to provide Power over Ethernet to end devices. This removes the need for additional, separate power inputs, which can often be costly and space-consuming.
Order Summary
SKU |
SFP |
PoE Ports |
Includes PoE Booster |
Manufacturer Part # (MPN) |
---|---|---|---|---|
GC-ATOP-EHG6410-2SFP | 2 1000Mbps | 0 | No | 1P1EHG64100007G |
GC-ATOP-EHG6410-2SFP-D | 2 100/1000Mbps | 0 | No | 1P1EHG6410000AG |
GC-ATOP-EHG6410-4POE-2SFP-24V | 2 1000Mbps | 4 | Yes | 1P1EHG64100008G |
GC-ATOP-EHG6410-4POE-2SFP-D-24V | 2 100/1000Mbps | 4 | Yes | 1P1EHG6410000BG |
GC-ATOP-EHG6410-8POE-2SFP-24V | 2 1000Mbps | 8 | Yes | 1P1EHG64100009G |
GC-ATOP-EHG6410-8POE-2SFP-D-24V | 2 100/1000Mbps | 8 | Yes | 1P1EHG6410000CG |
Features
- 8 x 10/100/1000 BASE-T(X) ports or
- 8 x 10/100/1000 BASE-T(X) ports with 2 x 100/1000 SFP slots or
- 8 x 10/100/1000 BASE-T(X) ports with 2 x 1000 BASE-X SFP slots
- Optional PoE ports with booster function (12~57 VDC)
- IP30 aluminum with DIP-Rail / Wall mount (optional)
- Operating range of -40°C to +75°C
- CB/IEC60950-1&62368-1 and UL/cUL62368-1
Documents and Drivers
Documentation
ATOP EHG6410 Series Industrial 10-port Unmanaged Gigabit PoE 24V Switch Datasheet
ATOP EHG6410 Series Industrial 10-port Unmanaged Gigabit PoE 24V Switch Hardware Installation Guide
ATOP Industrial Ethernet Switches Product Selection Guide
Specifications

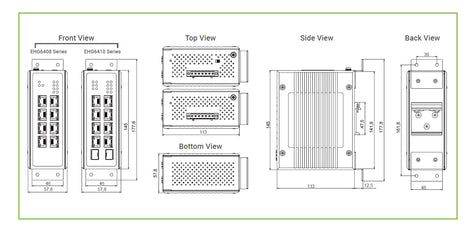

Dimensions
54 x 145 x 113 mm
Housing
IP30 metal housing
Humidity
5% to 95%, 55°C (Non-condensing)
Indicators LED
P1, P2, Fault, SFP1-2, PoE LED
Input Current
- PoE booster (-24V): 12~23VDC, max 7A
- 24~57VDC, max 6A
Input Voltage
12~57 VDC
Mounting
DIN-Rail , Wall mount (optional kit)
MPN
1P1EHG64100001G, 1P1EHG64100004G, 1P1EHG64100002G, 1P1EHG64100005G, 1P1EHG64100003G, 1P1EHG64100006G
Power Consumption
- Max 12~23VDC, max total 60W
- Max 24~57VDC, max total 120W
Product Weight
700g
Temperature Range
Operating:
- Non-PoE models: -40°C to +75°C (-40°F to +167°F)
- PoE models: 12~23VDC, 60W, -40°C to +70°C (-40°F to +158°F) 24~57VDC, 120W,-40°C to +70°C (-40°F to +158°F)
Storage:
- -40°C to +85°C (-40°F to +185°F)
Voltage
PoE Voltage Booster: Yes (Max support 120W), by optional model
