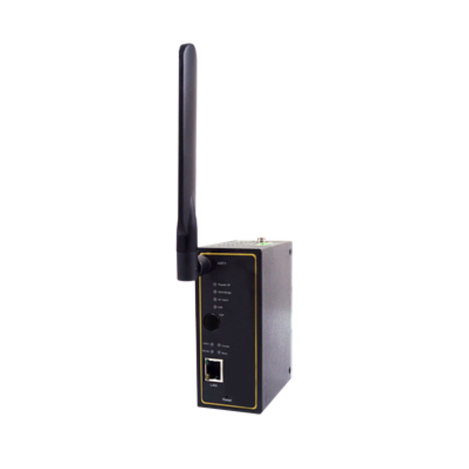

AW5500C Industrial Access Point


Leave a review


MPN: 1P1AW5500C0001G

Manufacturer: Atop Technologies Inc.

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the US

We Have You Covered

Price Match delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor StampThe AW5500C is an industrial Access Point able to withstand harsh conditions typically found in many industries and applications.

Designed with security in mind, this device has state of the art encryption as well as having the ability to create a virtual network among wireless clients; this level of communication between clients can be easily and intuitively controlled by imposing restrictions on data and excluding malware at the same time.

AW5500C is a strong wireless network manager delivering optimum performance in your network. Supporting “WPS & Wi-Fi Direct” technology, Wi-Fi usage is an ease-of-use connectivity, and delivers an industry-wide peer-to-peer solution based on broadly deployed Wi-Fi technologies.


  • Designed for IEEE802.11 b/g/n networks
  • Upgrade via Management Utility or Web User Interface
  • Client Isolation
  • Different operating modes and topology options (WDS Bridge and AP Client)
  • FCC (United States), ETSI (Europe), and NCC (Taiwan) certified wireless  equipment
  • Support WPS(Wi-Fi protected setup)
  • Support Wi-Fi Direct (Peer-to-Peer)

Documents and Drivers


AW5500C Industrial Access Point Datasheet

AW5500C Industrial Access Point User Guide

AW5500C Industrial Access Point Hardware Installation Guide



Wireless: SMA(R) Female

Power: 3-Pin 5.08mm Lockable Terminal Block


Input: 0.65 A @ 9 VDC


47 x 110 x 90 mm (1.85 x 4.33 x 3.54 in)




IP30 SPCC housing


5%~95%, 55°C (Non-condensing)


DIN-Rail , Wall mount (optional kit)

Network Interface


  • IEEE 802.3 for 10BaseT
  • IEEE 802.3u for 100BaseT(X)

Connector ports: 1x 10/100 BASE-TX RJ-45

Power Consumption

Approximately 5.85 W (Max)


ICMP, TCP, UDP, DHCP Server/Client, DNS, SNMP, NTP, SMTP, HTTP, IPv4, 802.1x, RADIUS, STP, WPS, Syslog


Network: Client Isolation, Firewall / Filtering, Turn off Radio

Wireless: WEP, WPA, WPA2, TKIP, AES, 802.1x

Temperature Range

Operating: -10°C to 60°C (14°F to 140°F)

Storage: -40°C to 85°C (-40°F to 185°F)


Input: 9 - 48 VDC


500g (1.10 lbs)
