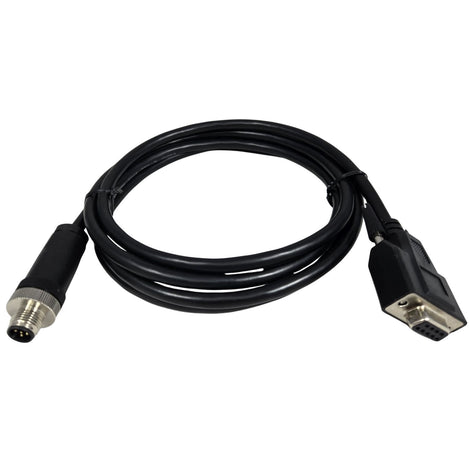

CAN bus cable M12 connector - 2 meter cable
CAN bus cable M12 connector - 2 meter cable
Product Images
CAN bus cable M12 connector - 2 meter cable
$39.00
SKU: GC-CAN-CAB-M12-2M-GC
MPN: GC-CAN-CAB-M12-2M-GC
Manufacturer: Grid Connect Inc.
Stock Status: In stock
Delivery: Ships same or next business day
Free shipping to the continental US on orders over $100
We Have You Covered
Skip To Footer
Product Information
Product Description

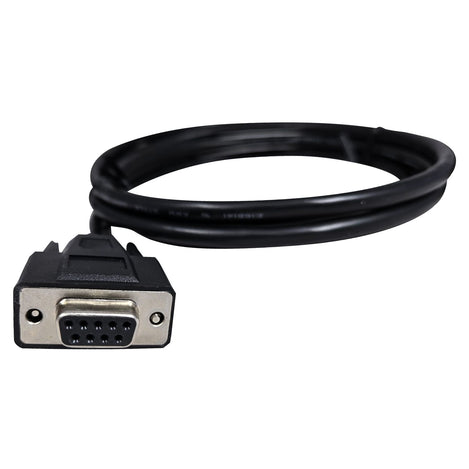

This DB9 to M12 cable provides direct access to the CAN bus network for CANedge or CLX000 data loggers, while also supplying power and ground to the device.
Pinout Information
| DB9 (female) | Function | M12 (male) |
|---|---|---|
| 1 | N/C | |
| 2 | CAN-L | 5 (NET-L) |
| 3 | GND | 3 (NET-C) |
| 4 | N/C | |
| 5 | N/C | |
| 6 | N/C | |
| 7 | CAN-H | 4 (NET-H) |
| 8 | N/C | |
| 9 | VCC | 2 (NET-S) |
Features
- MARINE: Suitable for NMEA 2000® maritime applications (boats, ships)
- CANOPEN: Suitable for CANopen applications (e.g. machinery)
- OVERMOLDED: Quality over mold ensures top flexibility & durability
- SOLID CABLES: Rugged quality 2m cable with 22 AWG (0.5 mm2) thickness
- STANDARD DB9: Fits CAN loggers & all adapters (CiA 303-1 DB9 pinouts)
Documents and Drivers
Documentation
Compare CAN to M12 Cables
Specifications
Connectors

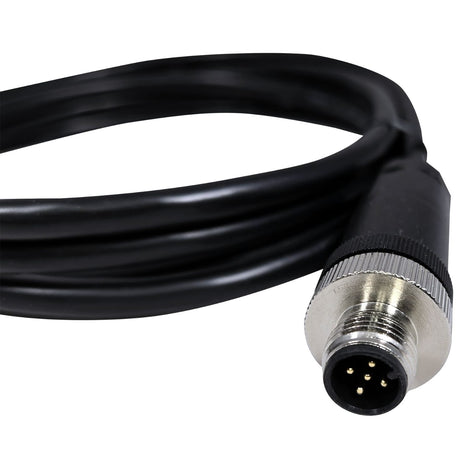

9-pin D-sub (DB9) female to M12 9-pin male
Adapter DB9 pins
In accordance with CiA 303-1
Cable length
2 meter
Cable thickness
22 AWG (0.50 mm2)
Weight
200 g (0.44 lb)
Temperature
-20°C to + 80°C (-4°F to +176°F)
