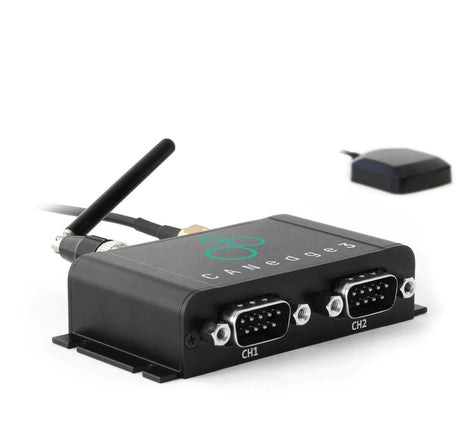

CANedge3 - CAN/LIN Data Logger, Cellular, GNSS/IMU: 8 GB SD Card

$759.95

Leave a review

SKU: GC-CSS-CANEDGE3-8GB-GNSS/IMU

MPN: #186 CANedge3 8GB + GNSS/IMU

Manufacturer: CSS Electronics ApS

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping

SD Card

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The quick to setup CANedge3 logger records timestamped CAN data (CAN/CAN FD) to an extractable 8 GB or 32 GB industrial SD card.  Data is pushed securely via 3G/4G to your own server with OTA update support. With GNSS/IMU data such as position, speed, altitude, and acceleration are included.

Ideal for telematics, R&D field tests, diagnostics and predictive maintenance.

Combine innovative design with cutting-edge components.

  • 2 x CAN (incl. CAN FD) + 2 x LIN channels
  • Months of data wit extractable 8 or 32 GB industrial SD card
  • Popular binary MDF4 log file format
  • Advanced message filtering & transmit functionality
  • Start/stop logging triggers based on CAN ID & databytes
  • Silent mode, bit rate auto-detection, cyclic logging
  • Data compression & encryption (e.g. for GDPR, CCPA)
  • Support for CAN/LIN error frame logging
  • Fast boot time. Safely disconnect during use (power safe)

The CANedge3 provides a modern alternative with Software/APIs 100% free & open source with no subscription fees or vendor lock-in.

  • Log data to the SD and auto-upload via global 3G/4G
  • Use your own server (self-hosted or cloud)
  • Includes Super SIM
  • Simply add your SIM/server details to the config
  • Configure file split size/period to control upload frequency
  • 100% secure: HTTPS, credential encryption and more
  • Manage via over-the-air updates (firmware & configuration)
  • Power e.g. sensor-to-CAN modules via the 2nd port
  • Zero fees. Zero lock-in. Interoperable. Open source tools

 Enrich you data with cutting-edge GNSS/IMU functionality

  • Perfect for use cases like vehicle telematics
  • Add 40+ GNSS/IMU signals to your 2 x CAN/LIN data
  • Full GNSS support (GPS, Galileo, BeiDou, GLONASS)
  • Built-in gyroscope (roll, pitch, yaw) and accelerometer (X, Y, Z)
  • High precision via sensor fusion - even in GNSS hostile areas
  • Signals encoded as 'internal' CAN frames (separate channel)
  • Configurable message inclusion/frequency (up to 5 Hz)
  • DBC file included for easy decoding to human-readable form
  • Optionally sync the CANedge RTC via precise GNSS time
  • Flexible deployment via external GNSS or LTE/GNSS antenna

 The software toolbox includes:

  • Editors: Easily modify your device config (online/offline)
  • CANcloud: Manage connected CANedge3 devices & data
  • S3 drive: Mount your S3 server as a 'local drive'
  • Converters: Convert data to Vector ASC, PEAK TRC, CSV, ...
  • asammdf GUI: DBC decode, plot and export your data
  • Python API: Automate your data processing & integrations
  • Dashboards: Visualize data in custom browser dashboards



Order Summary



SKU

SD Card

Manufacturer Part # (MPN)

GC-CSS-CANEDGE3-8GB-GNSS/IMU 8 GB SD Card
#186 CANedge3 8GB + GNSS/IMU
GC-CSS-CANEDGE3-32GB-GNSS/IMU 32 GB SD Card #188 CANedge3 32GB + GNSS/IMU

Features


  • EASY SETUP: Log data out-the-box. Standalone - no PC required. Power via CAN connector
  • PRO SPECS: Extractable 8-32 GB SD. 2xCAN/LIN. CAN FD. Zero data loss. 50 µs RTC. Error frames. MF4
  • COMPACT: Only 8 x 5 x 2 CM. 100G. Aluminium enclosure. 4 LEDs. Configurable 5V power out (CH2)
  • CONFIGURABLE: Advanced filters. Transmit lists. Triggers. Cyclic logging. Silent mode. Encryption
  • GNSS + 3D IMU: Built-in GNSS/IMU. 3X accuracy via sensor fusion. Position, speed, acceleration & more
  • INTEROPERABLE: Free & open source software/API. MF4 to ASC/CSV. DBC support. Python. Dashboards

Documents and Drivers

Documentation

CANedge3 2xCAN/LIN with 4G Cellular and GNSS/IMU Product Manual

Specifications

Accuracy

  • Position: 2.0 m CEP (Circular Error Probable)
  • Heading: 0.3 deg | Pitch: 0.4 deg | Roll: 0.6 deg (68% at 30 m/s)
  • Velocity: 0.08 m/s

Antennas

3G/4G LTE antenna and GPS antenna included

Certifications

LARA R6001D: PTCRB, GCF, FCC/ISED, RED, NCC, RCM, Giteki, AT&T

Channels

  • 2 x CAN channels (incl. CAN FD support)
  • 2 x LIN channels

Connector(s)

2 x Standard D-sub 9 (DB9) connectors

Dimensions

Compact aluminum enclosure: 75 x 47 x 20 mm (2.95 x 1.85 x .79 in)

Indicators LED

Logger status via 6 external LEDs: Power, CH1, CH2, Memory, LTE, GNSS

Input

+7V to +32V DC via the Channel 1 DB9 (e.g. from the vehicle/machine power supply)

Module

Professional-grade u-blox NEO-M9V sensor module (92-channel) with built-in gyroscope and accelerometer

Power Consumption

Very low (~1 W in normal operation, ~2.5 W during 3G/4G transfer) - no risk of battery drainage

Protocols

Log raw data from CAN based protocols (J1939/FMS, CANopen, NMEA 2000, OBD2, CAN FD, UDS, ...)

Real Time Clock

  • CAN frames are date & timestamped with 50 microsecond resolution (battery backup)
  • The RTC can be configured to match local time zones (default: UTC)
  • The RTC can be auto-synced via 3G/4G LTE or a CAN message (e.g. from the internal GNSS timestamp)

Standards

  • ISO 11898: Compliant with CAN (up to 1 Mbit/s) and ISO & Bosch CAN FD (up to 4 Mbit/s payload rate)
  • Compliant with LIN 2.0 up to 20 Kbit/s (support for Classic & Enhanced checksum format)

Temperature Range

-25°C to +70°C (-13°F to +158°F)

Weight

100 Grams
