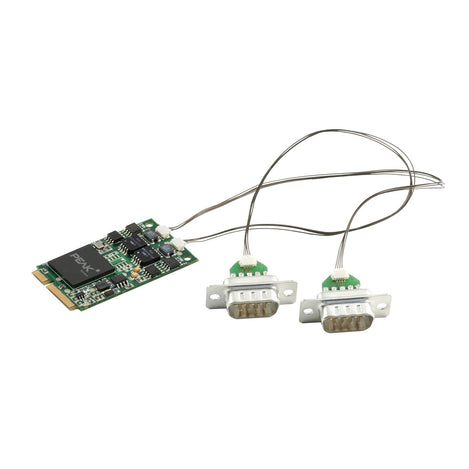

CAN Bus Card Mini PCI Express (PCAN-miniPCIe)
CAN bus Mini PCI Express Side
CAN bus Mini PCI Express Top
CAN Bus Card Mini PCI Express (PCAN-miniPCIe)
Product Images
CAN Bus Card Mini PCI Express (PCAN-miniPCIe): 1 Channel / 300V Isolated
$295.00
SKU: GC-CAN-MINI-PCI-E-1
MPN: IPEH-003048
Manufacturer: Peak System Technik
Stock Status: In stock
Select Channels
-
$295.00
-
$375.00
We Have You Covered
Product Information
Product Description
Connect your embedded PC or laptop to the CAN bus using the mini PCI Express interface inside your PC. The 1 and 2 channel versions both have galvanic isolation up to 300 Volts between the computer and CAN sides.
Package Contents
- PCAN-miniPCIe card
- Connection cable including D-Sub plug for each channel
- Device drivers for Windows® 10, 8.1 and Linux (32/64-bit)
- CAN monitor PCAN-View for Windows®
- Programming interface PCAN-Basic for developing applications
- Programming interfaces for standardized protocols from the automotive industry
- Manual in PDF format
Order Summary
SKU |
Select Channels/Isolation |
Manufacturer Part # (MPN) |
---|---|---|
GC-CAN-MINI-PCI-E-1 | 1 Channel / 300V Isolated | IPEH-003048 |
GC-CAN-MINI-PCI-E-2 | 2 Channels / 300V Isolated | IPEH-003049 |
Features
- 1 or 2 CAN channels
- Space-saving dimensions or the PCI Express Mini slot
- High speed transceiver, isolated up to 300V
- DB9 connectors using connecting cables
- Baud rates up to 1Mbps
Documents and Drivers
Documentation
PCAN-miniPCIe User Manual
Downloads
Device Driver Setup - Windows® 11
Installation package with device drivers and tools for PC interfaces. Includes tools: PEAK-Settings, CAN monitor PCAN-View, LIN monitor PLIN-View Pro, Virtual PCAN-Gateway
Device Driver Setup - Outdated Windows Versions
PCAN-miniPCIe Linux Drivers
PEAK-System PCAN DOWNLOAD SUPPORT
Specifications
Baud Rate
CAN: max. 1 Mbit/s
Certifications
CE
Channels
1 or 2
Connector(s)
DB9 Male using connecting cables, 20 cm cable length
Dimensions
30 x 51 x 4 mm
Interface(s)
- PC: PCI Express Mini Slot
- CAN: ISO 11898-2, complies with CiA-recommendation DS 102
Isolation
300 VDC
MPN
IPEH-003048, IPEH-003049
Pinout
C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)
Power Consumption
1.5VDC / 180mA max., 3.3VDC 330mA max
Product Weight
7 grams (board), 16 grams (board with DB9 connector)
Software
- Driver: Supports Windows 11 & 10
- Tools: PCAN-View for Windows®
Specifications
CAN: 2.0A (Standard format) and 2.0B (extended format)
Temperature Range
-40°C to +85°C (-40°F to +185°F)
Transceiver
CAN: NXP PCA82C251
