CAN PC Plotter Add-in for PCAN Explorer 6

$213.00

SKU: GC-CAN-PLOTTER6

MPN: IPES-006087

Manufacturer: Peak System Technik

Stock Status: In stock

Delivery: One business day. An email will contain your download information
Qualifies for Free shipping to the continental US
ORDERING NOTE:
Please include the following information in the Comment Section on the Cart Page:
- PCAN-Explorer 6 license ID to which this product will be added
- Point of Contact's email address for download if different from the ordering email address

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The CAN PC Plotter Add-In for PCAN-Explorer 6 offers a powerful solution for engineers seeking real-time visualization of CAN bus data.
Designed to integrate seamlessly with PCAN Explorer 6, this software add-in facilitates comprehensive analysis of signal courses.

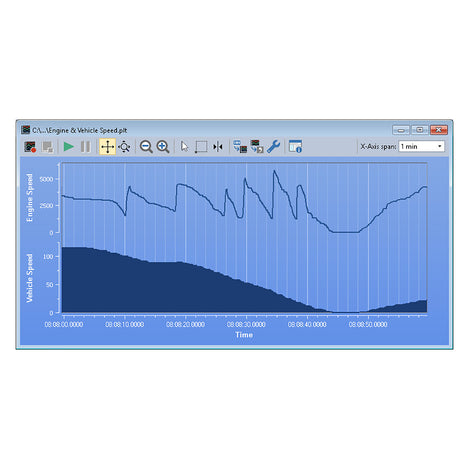

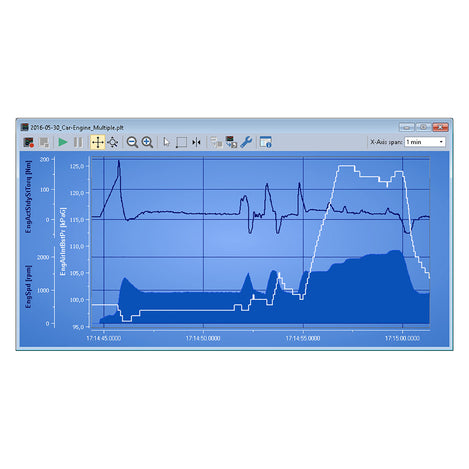

Users can monitor incoming and outgoing CAN messages, virtual variables, and macro calculation results with unlimited recording channels.
The tool supports multiple Y-axes, providing flexibility in data representation.

Interactive features include zoomable and scrollable axes, both during and after recording sessions.
Time axes can be labeled with absolute or relative timestamps, enhancing the clarity of data interpretation.

For documentation and further analysis, the current view can be saved in various image formats such as EMF, PNG, BMP, or JPEG.
Additionally, recordings can be exported to CSV files, and data from PCAN-Explorer’s tracer, PCAN-Trace, or PCAN-View can be imported seamlessly.

The add-in also features cursor display for precise plot measurements and supports logarithmic scales, reversible Y-axes, and comprehensive formatting options for curves, axes, and layout.

Features

  • Real-time display of signal courses
  • Unlimited recording channels and Y-axes
  • Zoomable and scrollable X and Y-axes during recording
  • Time axis labeling with absolute or relative timestamps
  • Save current view as EMF, PNG, BMP, or JPEG
  • Export recordings to CSV files
  • Import data from PCAN-Explorer tracer, PCAN-Trace, or PCAN-View
  • Cursor display for plot measurements
  • Support for logarithmic scales and reversible Y-axes
  • Comprehensive formatting options for curves, axes, and layout
