Contactless Current Meter Sensor
Contactless Current Meter Sensor
Product Images
Contactless Current Meter Sensor
$125.00
SKU: GC-AK-CCM
MPN: CCM
Manufacturer: AKCP Co Ltd.
Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the US
This sensor REQUIRES an AKCP sensorProbe controller.
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
The AKCP Contactless Current Meter doesn't require having to access an individual wire which is what most current transformers require. This non-invasive meter sensor allows you to monitor current (and power if you have a reference voltage) in 2 core or 3 core cables.
This meter sensor has an unique current measurement technology making measuring individual IT rack current and power simpler, and at a lower cost. You can even check how close you are to tripping breakers, and in calculating live PUE numbers.
Product REQUIRES an AKCP sensorProbe controller.
Features
- No downtime for installation
- No electrician required
- Input for PUE calculations
- Rack level current monitoring
- Accurate +/- 5%
- Input for AKCP sensorCFD (sold separately)
Documents and Drivers
Documentation
Contactless Current Meter Sensor Datasheet
Specifications
Accuracy
- +/- 5% when factory calibrated on cable of same type
- +/- 10% on non-factory calibrated cable
Cable Length
50ft using standard CAT5/6 UTP cable
Dimensions

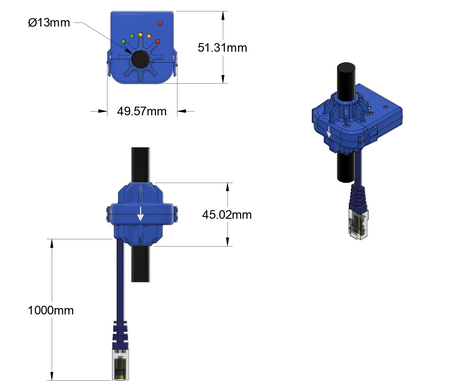

49mm x 45mm x 51mm WxHxD (1.93in x 1.77in x 2in)
Communications Cable
RJ-45 jack to sensor using UTP CAT5e cable
Humidity
Min. 20% – Max. 80% (Non-Condensing)
Indicators LED
- LED indication for power
- LED array for calibration
Input(s)
Magnetic field sensing of current in multicore cable
Mounting
Cable Mounted
Power
Powered by the controller unit. No additional power needed
Power Consumption
Typical 7.25mWatt, 1.45mA
Temperature Range
-35°C to +80°C (-31°F to +176°F)
