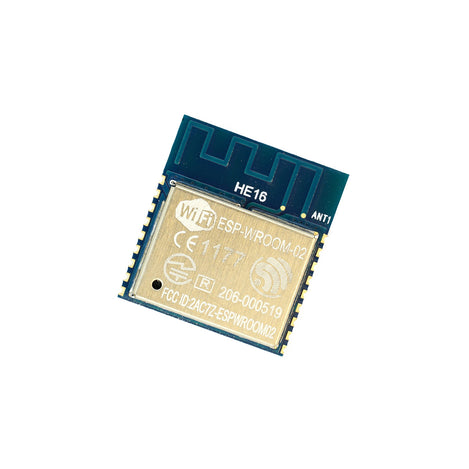

ESP-WROOM-02 - Wi-Fi 802.11 Module
ESP-WROOM-02 - Wi-Fi 802.11 Module
The ESP-WROOM-02 module is a highly integrated WiFi 802.11 b/g/n module that consumes extremely low power while providing a wireless internet connection for embedded devices. With a very small form factor (18mm by 20mm), this wireless module easily assimilates into resource limited devices. These features make it a great choice for OEMs to connect their IoT (Internet of Things) applications.
Embedded with the ESP8266EX chip, the ESP-WROOM-02 module is a 32-bit low power micro-controller (MCU) that integrates with TCP/IP network stacks; the included 10-bit ACD interfaces with HSPI, SDIO, UART, PWM, I2C and I2S. Programs and firmware can be stored in the integrated SPI flash with 2MB or 4MB capacity.
The embedded ESP8266EX chip gives the ESP-WROOM-02 module a wake up and transmit packet speed of less than 2ms which makes it a great solution for applications including IoT. Examples are:
- Home automation and home security
- Smart lights and plugs
- Home appliances
- Sensors and detectors
- Security alarms
- Monitor and scales
- Mesh Networks
- Industrial Wireless Control
- Wearable Electronics
- WiFi Location-aware Devices
- WiFi Position System Beacons
Manufacturer Part # (MPN)
||4MB||ESP32-WROOM-02 (4 MB)|
- Wi-Fi 802.11 b/g/n
- Integrates with the ESP8266EX chip
- Internal PCB antenna
- 2 MB or 4 MB SPI flash memory
- Tensilica L106 32-bit RISC processor
- 26-MHz crystal oscillator
- Secure (encrypted) over the air (OTA) upgrades
- SRRC, FCC, CE (RED), IC, NCC, KCC, TELEC (MIC) certified
- Programmable RAM/ROM interface (iBus)
- Programmable Data RAM interface (dBus)
- AHB interface accesses the register
Documents and Drivers
ESP-WROOM-02 PCB Design and Module Placement Guide
ESP8266 Quick Start Guide
ESP8266 AT Bin
Internal On-Board PCB antenna
- RF: SRRC, FCC, CE (RED), IC, NCC, KCC, TELEC (MIC)
- Green: RoHS, REACH
- Wi-Fi: Wi-Fi Alliance
18 mm x 20 mm x 2.8 mm
- Upgrade: UART Download / OTA (via network)
- Download and write firmware via host
Wi-Fi: 2.4 GHz ~ 2.5 GHz (2400M ~ 2483.5M)
- UART/HSPI/I2C/I2S/IR Remote Control
2 MB or 4 MB
- Average Current: 80 mA
- Minimum Current: 500 mA
- Wi-Fi: 802.11 b/g/n
- Network: IPv4, TCP/UDP/HTTP/FTP
- Security: WPA/WPA2
- Encryption: WEP/TKIP/AES
-40ºC to 85ºC (-40ºF to 185ºF)
Operating: 2.7V ~ 3.6V
