ESP32-WROOM-32 - Combo Wi-Fi/BT/BLE Module: 4MB Flash

$3.27

4.7 stars 4.7 (3) See customer reviews

SKU: GC-ESP32-WROOM-32-N4

MPN: ESP32-WROOM-32-N4

Manufacturer: Espressif Systems

Stock Status: In stock

Delivery: Ships same or next business day
Shipping is Free on orders over $75

8MB Stock Sale: Limited quantity available.

16MB Sold out: Comparable product ESP32-WROOM-32D

Flash Memory

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

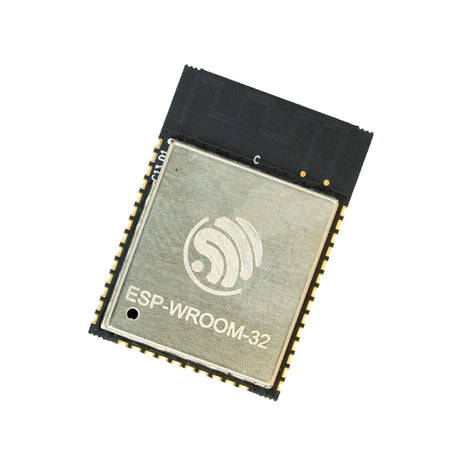

Authorized North America Distributor StampThe Espressif ESP-WROOM-32 is an extremely powerful Wi-Fi, Bluetooth (BT), and Bluetooth Low Energy (BLE) combination module that utilizes the versatile ESP32-DOWDQ6 chip. The device offers a PCB antenna and comes fully-equipped with 2 CPU cores that can be controlled and powered individually, as well as with an adjustable clock frequency (80 MHz to 240 MHz). The CPU can be powered off in order to use the low power co-processor to constantly monitor the peripherals for changes or crossing of thresholds.


Some of the powerful peripherals integrated within the ESP32 include:

  • Capacitive touch sensors
  • Hall sensors
  • SD card interface
  • Low noise sense amplifiers
  • Ethernet
  • High speed SDIO/SPI
  • UART
  • I²S
  • I²C

The ESP-WROOM-32 is optimized for efficiency with its electronic integration, connectivity, range, and power consumption. The device offers a built-in TLS 1.2 with hardware acceleration and freeRTOS with LWIP for an operating system. The SDK is open-source, allowing the user to create their own operating systems and platforms.

Perfect for wearable electronic or battery powered applications, the ESP32 chip uses less than 5µA and can support data rates of up to 150 Mbps and 20 dBM output power at the antenna, allowing for a wide physical range.

With the secure and encrypted over the air (OTA) upgrade support a developer is able to continually upgrade their products after release with minimal cost.

Common applications include:

  • Internet of Things (IoT) solutions
  • Wearable electronics
  • Home automation
  • Music streaming
  • MP3 decoding
  • Sensor networks
  • Voice encoding



Compare ESP-WROOM-32 Series



Order Summary



SKU

Flash Memory

Manufacturer Part #

GC-ESP-WROOM-32-N4

 4MB ESP32-WROOM-32-N4

GC-ESP-WROOM-32-8M (SALE) - Limited Quantities Available

 8MB ESP32-WROOM-32-N8

GC-ESP-WROOM-32-16M - Sold Out

Recommend: GC-ESP-WROOM-32D-16M

 16MB ESP32-WROOM-32 (16 MB)

Features

Features of the ESP-WROOM-32

  • Combo Wi-Fi, Bluetooth (BT), and Bluetooth Low Energy (BLE) module
  • Integrates with the ESP32-D0WD chip
  • Fully certified with integrated PCB antenna
  • Two independently controlled CPU cores with adjustable clock frequency from 80MHz to 240MHz
  • Sleep current is less than 5 μA, making it suitable for battery-powered and wearable-electronics applications
  • 4-layer FCC, CE ( RED ), IC, TELEC, SRRC, NCC, and KCC-compliant design
  • Classic Bluetooth for legacy connections, supporting:
    - L2CAP
    - SDP
    - GAP
    - SMP
    - AVDTP
    - AVCTP
    - A2DP (SNK)
    - AVRCP
  • Including BLE GATT-based profiles, such as BlueFi, SPP-like, etc.
  • Bluetooth Low Energy (BLE) connects to smart phones, broadcasting low-energy beacons for easy detection
  • Custom firmware development via SDK

Documents and Drivers

Documentation

ESP-WROOM-32 Datasheet View (PDF)
ESP32 Datasheet View (PDF)

Downloads
ESP-WROOM-32 Reference Design V1.1 - (recommended for developers who design modules themselves) Download (ZIP)
ESP-WROOM-32 Reference Design V1.0 - (recommended for mass-produced modules) Download (ZIP)
ESP-WROOM-32 AT Bin Download (ZIP)

Specifications

ANTENNAS

Internal On-board PCB Antenna Option

CERTIFICATIONS

FCC / CE-RED / IC / TELEC / KCC / SRRC / NCC

DIMENSIONS

18mm x 25.5mm x 3.1mm

FIRMWARE

  • Upgrade: UART Download / OTA (via network)
  • Download and write firmware via host

FREQUENCY BAND

2.4GHz-2.5GHz (2400M-2483.5M)

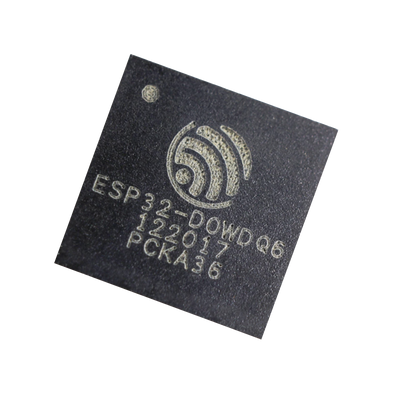

INTEGRATED CIRCUIT (IC)

ESP32-DOWDQ6

INTERFACE(S)

  • Wi-Fi mode: station/SoftAP/SoftAP+station/P2P
  • SD Card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR
  • GPIO, capacitive touch sensor, ADC, DAC, LNA pre-amplier

MEMORY

4 MB, 8 MB, or 16 MB Flash

MPN

ESP32-WROOM-32

PINS

38 pins

POWER

Average: 80 mA

PROTOCOLS

Wi-Fi: 802.11 b/g/n/d/e/i/k/r (802.11n up to 150 Mbps)
Wi-Fi: A-MPDU and A-MSDU aggregation and 0.4 guard interval support
Bluetooth: Bluetooth v4.2 BR/EDR and BLE specification
Network: IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT

RELATED PRODUCTS HEADING

Related chips and modules

SECURITY/PROTECTION

Security: WPA/WPA2/WPA2-Enterprise/WPS
Encryption: AES/RSA/ECC/SHA

SENSOR(S)

  • Hall sensor
  • Temperature sensor

SOFTWARE

  • Supports Cloud Server Development

TEMPERATURE RANGE

Operating: -40ºC to 85ºC (-40ºF to 185ºF)

TIMERS

On board clock: 26 MHz crystal, 32 kHz crystal

VOLTAGE

Operating: 2.7 ~3.6V
