Bluetooth RS232 Serial GRIDBluFly Pair
Bluetooth RS232 Serial GRIDBluFly Pair
Product Images
Bluetooth RS232 Serial GRIDBluFly Pair: 220V - Europe (Except U.K.) - DCE (2 Female)
$170.00
SKU: GRIDBFP-2DCE-220
MPN: GRIDBFP-2DCE-220
Manufacturer: Grid Connect Inc.
Stock Status: In stock
Power Supply
-
$170.00
-
$170.00
-
$142.00
-
$170.00
Connector
-
$170.00
-
$170.00
-
$170.00
We Have You Covered
Product Information
Product Description
The GRIDBluFly Pair, also known as BluFly Pair, can be configured to make a Bluetooth Class 1 wireless connection to replace or extend an RS232 cable. Range can be up to 300ft.
The two BluFly devices first need to be paired so they will transfer serial data between them. Set 1 device as the master (client) and the other as the slave (peripheral), and then set the configuration switches.
Once the two devices have paired, change Auto Discover to off for both devices to prevent the devices from inadvertently pairing with other devices on the next power on.
No software changes or drivers required!
Order Summary
SKU |
Connectors |
Power Supply |
Manufacturer Part # (MPN) |
---|---|---|---|
GRIDBFP-2DCE-110 | DCE (2 Female) | 110V - U.S./North America | GRIDBFP-2DCE-110 |
GRIDBFP-2DCE-220 | DCE (2 Female) | 220V - Europe | GRIDBFP-2DCE-220 |
GRIDBFP-2DCE-NOPS | DCE (2 Female) | No Power Supply | GRIDBFP-2DCE-NOPS |
GRIDBFP-2DCE-USB | DCE (2 Female) | USB Power Cable | GRIDBFP-2DCE-USB |
GRIDBFP-2DTE-110 | DTE (2 Male) | 110V - U.S./North America | GRIDBFP-2DTE-110 |
GRIDBFP-2DTE-220 | DTE (2 Male) | 220V - Europe | GRIDBFP-2DTE-220 |
GRIDBFP-2DTE-NOPS | DTE (2 Male) | No Power Supply | GRIDBFP-2DTE-NOPS |
GRIDBFP-2DTE-USB | DTE (2 Male) | USB Power Cable | GRIDBFP-2DTE-USB |

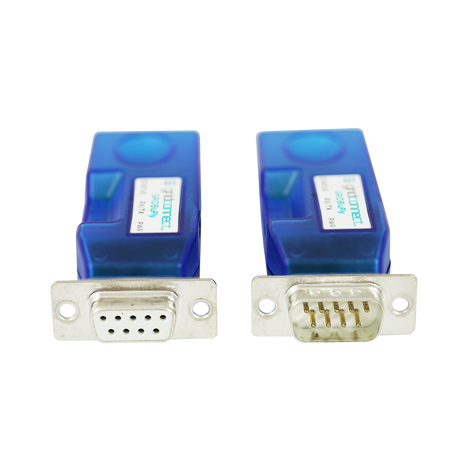

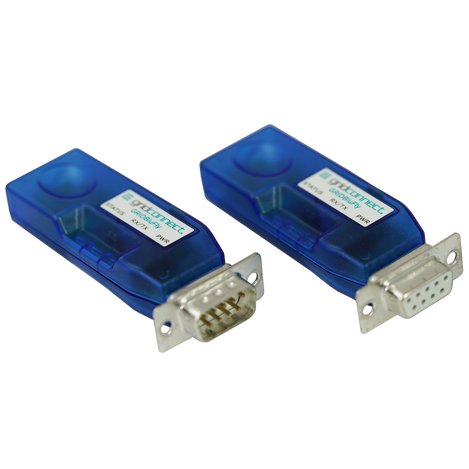

GRIDBFP-DTE-DCE-110 | Both (1 Male/1 Female) | 110V - U.S./North America | GRIDBFP-DTE-DCE-110 |
GRIDBFP-DTE-DCE-220 | Both (1 Male/1 Female) | 220V - Europe | GRIDBFP-DTE-DCE-220 |
GRIDBFP-DTE-DCE-NOPS |
Both (1 Male/1 Female) | No Power Supply | GRIDBFP-DTE-DCE-NOPS |
GRIDBFP-DTE-DCE-USB | Both (1 Male/1 Female) | USB Power Cable | GRIDBFP-DTE-DCE-USB |
Features
- High speed RS232, with standard baud rates from 1200 to 921,600.
- Parity Even, Odd, or None, 7/8 Data Bits, 1 Stop Bit.
- Hardware flow control via RTS, CTS (local serial connection only).
- Modem control output (DTR) tied to flow control output (RTS) optional.
- Settings can be easily changed via local serial port connection.
- Mid-range Power (Class 1, 12dBm TX, 300’, 90m) Bluetooth™ radio
- Serial Port Profile (SPP) used for direct connect to Classic BT clients.
- Custom GATT profiles for BLE clients (peripheral role only).

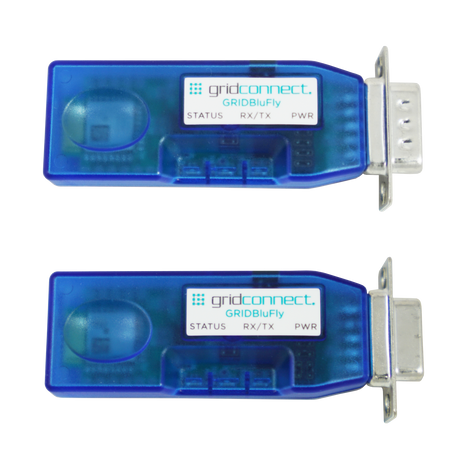

- Green (connection), Yellow (TX/RX) and Green (Power) LEDs.
- Low power operation requires only 5VDC at 40ma when connected.
- Smallest possible form factor.
- DB9 Male or DB9 Female connector standard.
Documents and Drivers
Documentation
GRIDBluFly User Guide
GRIDBluFly Comparison with FireFly
Specifications
Antenna
2.4GHz RF PCB trace
Baud Rate
Baud Rates other than 9600 or 115200 must be selected in command mode.
Connection Modes
Master, Slave, Trigger Master, Auto-Connect
Connector(s)

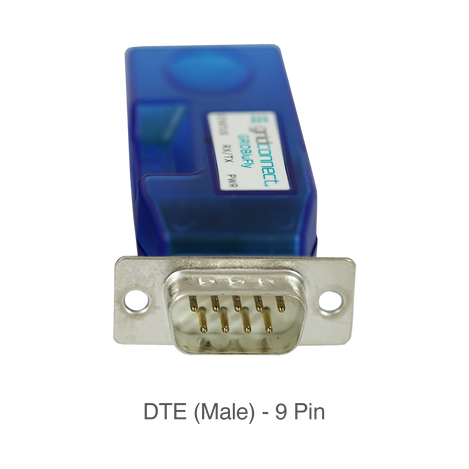

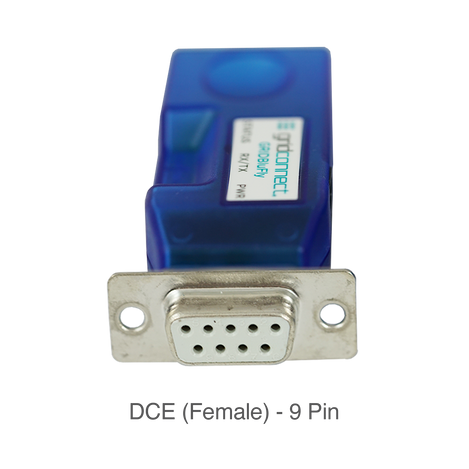

Serial: DB9 - DTE (male) or DCE (female)
Control Signals
CTS, RTS (local serial connection only)
Data Bits
7/8 Bits
Dimensions
- Outer diameter: 3.50mm (.14in)
- Inner diameter: 1.35mm (.05in)
- Length: 8 - 8.25mm (.31-.32in)
Flow Control
Hardware (RTS/CTS) or None
Parity
Even, Odd, or None
Indicators LED
- Transmit/Receive (TX/RX) Data
- Power
- Connection Status
MPN
GRIDBFP-2DCE-110, GRIDBFP-2DCE-220, GRIDBFP-2DCE-NOPS, GRIDBFP-2DCE-USB, GRIDBFP-2DTE-110, GRIDBFP-2DTE-220, GRIDBFP-2DTE-NOPS, GRIDBFP-2DTE-USB, GRIDBFP-DTE-DCE-110, GRIDBFP-DTE-DCE-220, GRIDBFP-DTE-DCE-NOPS, GRIDBFP-DTE-DCE-USB
Power
- Power Jack: 5VDC – 16VDC
- Input: (typically +5V)5-16VDC
Profiles
SPP only, Custom GATT profiles for BLE clients
Stop Bits
1
Temperature Range
0°C to 70°C (32°F to 158°F)
