IP Connected Slim Line Wall Speaker/Intercom: IP7

$615.00

Leave a review

SKU: GC-IPIC-SPKR-IP5-FD

MPN: SPKR-IP5-FD

Manufacturer: Digital Acoustics

Delivery: Ships within 7-14 business days
Qualifies for Free shipping

Firmware Feature

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

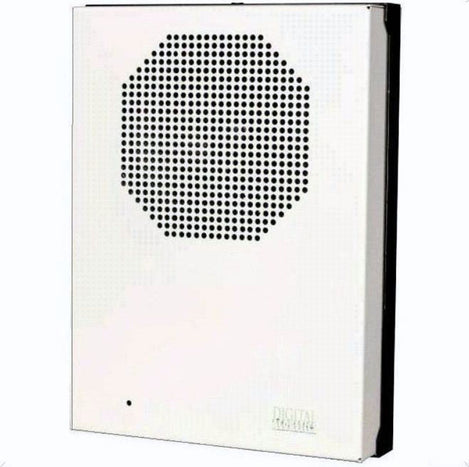

The Digital Acoustics Low-profile, Two-way Wall Speaker (SPKR-IP5-FD) is a completely self-contained unit with a powerful 8-watt amplifier and built-in microphone and echo-cancellation for clear two-way audio. The speaker is designed for PA, General Announcements and Emergency Notification for indoor environments.

These Two-way Wall Speakers are simple to install (connect to your existing Ethernet network) and provide a cost effective PA solution for any setting including Classrooms, Retail Spaces, Warehouses, Corporate Offices, and more

Ideal as a classroom speaker and talk-back intercom, the SPKR-IP5 is perfect for use in

  • Schools,
  • Colleges,
  • Universities, and
  • Training centers



The IP7 Firmware Feature enables compatibility with Digital Acoustics TalkMaster FOCUS software and/or to SIP based phone systems.

The S3 Firmware Feature enables  an IP Endpoint to connect to a SIP based Phone System.

The S3/InformaCast Firmware feature enables the IP Endpoint to connect to Singlewire's InformaCast software and to SIP based Phone systems. Please note that InformaCast only supports outbound paging even on products that have two-way capabilities.

    Order Summary



    SKU

    Firmware Feature

    Manufacturer Part # (MPN)

    GC-IPIC-SPKR-IP5-FD IP7 SPKR-IP5-FD
    GC-IPIC-SPKR-IP5-FD-S3 SIP Only SPKR-IP5-FD-S3
    GC-IPIC-SPKR-IP5-FD-IC InformaCast SPKR-IP5-FD-S3-IC

    Features

    Features of the Slimline Wall Speaker/Intercom



    • Integrated 8 Watt IP Audio Amplifier
    • Microphone for two-way talk-back with Echo Cancellation
    • Power-over-Ethernet (PoE)
    • Multicast Protocol enables seamless, low-bandwidth audio
    • Hardened surface-mount design for demanding indoor environments
    • Deploy with TalkMaster™ Focus, VoIP telephones, custom software, or third-party applications
    • Single CAT 5/5e/6 cable installation
    • One SPKR-IP5-FD can be used for paging and two-way talk back for rooms up to 30’x30
    • Heavy duty steel with white epoxy powder coated finish

    Documents and Drivers

    Documentation

    SPKR-IP5 Slim Line Wall Mount Speaker/Intercom Datasheet View (PDF)

    Specifications

    CERTIFICATIONS

    CE, FCC, RoHS compliant

    ENCLOSURE

    Heavy duty steel with white epoxy powder coated finish

    FREQUENCY RESPONSE

    100 Hz -10 kHz (EIA 462A)

    LOUDSPEAKER POWER RATING

    10 watts (EIA 462A)

    MPN

    SPKR-IP5-FD, SPKR-IP5-FD-S3, SPKR-IP5-FD-S3-IC

    SPEAKER SIZETYPE

    5 ¼ “, 8 ohm
