This product is discontinued and no longer available.

Mercury 10″ PRO Kit - Multi-Protocol Diagnostics: No cellular modem

Leave a review

SKU: GC-MERCURY-10-PRO-KIT

MPN: 101-823320-US

Manufacturer: Anybus Diagnostics

Modem Option

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor StampThe Mercury PRO kit is a multi-protocol troubleshooting and maintenance tool for integrators, engineers and technicians. It combines the popular PROFIBUS ProfiTrace tool with Industrial Ethernet tools in one convenient package.

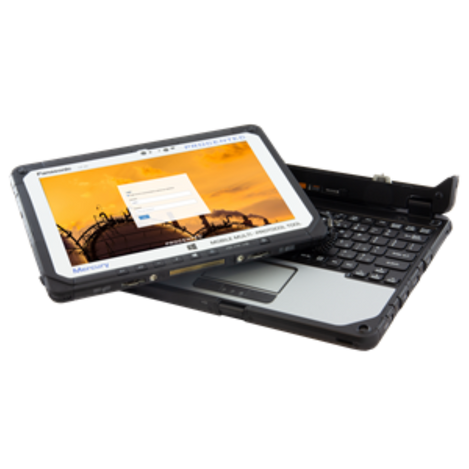

The Mercury is a portable 2 in 1 device, converting between tablet and laptop easily. It includes the modern Osiris software to easily check and diagnosis issues within PROFIBUS, EtherNet/IP and other industrial Ethernet networks. PROFIBUS networks can still be checked with the traditional ProfiTrace tools or with the PROFIBUS tools included in Osiris software.

The 10” screen of the Mercury provides easy to view topologies, tables and graphs. The dashboard is customizable. With the 4G option, there are no worries about internet access when visiting client’s facilities.

Learn more about installation, basic functionalities and benefits in the video below.



Browser Requirements

  • Must support HTML5 and JavaScript
  • Supported browsers and minimum versions are
    - Chrome version 46 or higher (Optimal Performance)
    - Edge version 25 or higher
    - Firefox version 42 or higher
    - Safari version 5 or higher

Mercury 10" pro kit includes:
  • 1 x Mercury 10” tablet (w/4G Modem if 4G option selected)
  • 1 x US Power Supply
  • 1 x 360 degree strap
  • 1 x Carrying Case
  • 1 x RJ45 to RJ45 3 Meter Cable
  • 1 x RJ45 to M12 3 Meter Cable
  • 1 x PROFICORE USB Cable
  • 1 X ProfiCore Ultra 2
  • 1 X ProfiCore TAP Connectors
  • 1 X ProfiTrace 2 Software
  • 1 x ProfiTrace SCOPE ware
  • 1 x ProfiCaptain
  • 1 X Netilities
  • OSIRIS Software Standard Package pre-installled and tested

Order Summary



SKU

Modem Option

Manufacturer Part # (MPN)
GC-MERCURY-10-PRO-KIT No cellular modem 101-823320-US (DISCONTINUED)
GC-MERCURY-10-PRO-4G-KIT 4G cellular modem 101-823330-US DISCONTINUED)

Features

  • Not vendor or protocol specific
  • Network Topology
  • Customizable dashboard
  • Network Quality Factor
  • Alarms
  • Resistant to all environmental factors

Documents and Drivers

Documentation

Mercury Brochure

Osiris Software on Atlas, Mercury and PC User Manual

Specifications

Cable Length

Ethernet cable maximum: 100 m

Connector(s)

  • USB: 1x USB 3.0, 1x USB 2.0
  • Expansion Slot: Micro SD/SDXC Memory Card
  • Ethernet: RJ-45

Core

Intel® Core™ i5-7Y57 vPro™ processor

Dimensions

203 x 18 x 132 mm

Humidity

Maximum 98% relative air humidity

Interface(s)

  • Bluetooth: Version 4.1 + EDR Class 1
  • WLAN: Intel® Dual Band Wireless-AC 8265

Memory

RAM: 4 GB (Max. 8 GB)

Mounting

Handheld (handstrap and stylus supplied)

MPN

101-823320, 101-823330

Operating System

Windows 10 Pro

Protocols

  • Supported: OPC UA, PROFINET, PROFINET I&MO
  • Supported (detect only): PROFINET, Modbus TCP, Ethernet/IP
  • Used: ARP, ICMP, DCP, SNMP, PROFINET I&M0

Security/Protection

IP 65 (MIL STD 810G and IEC 60529)

Speed

Ethernet: 10/100/1000 Mbps

Storage Capacity

128 GB Solid State Drive (Serial ATA)

Temperature Range

  • Operating: -29°C to 60°C (-20°F to 140°F)
  • Storage: -51°C to 71°C (-60°F to 160°F)
