Network Connected IP Speaker Ceiling Tile: IP7

$777.00

Leave a review

SKU: GC-IPIC-SPKR-IP-CS

MPN: SPKR-IP-CS

Manufacturer: Digital Acoustics LLC

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the US

Firmware Feature

We Have You Covered

Price Match delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

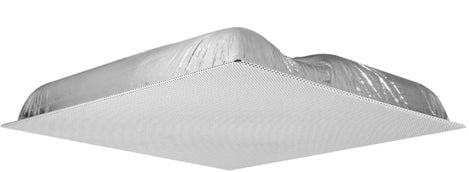

The SPKR-IP-CS ceiling tile speaker is designed for placement in a 2x2 foot lay-in tile ceiling and provides a clean unobtrusive paging speaker or talk-back speaker/intercom. It is PoE powered and network connected for use with Digital Acoustics TalkMaster FOCUS based systems or Informacast software.

When used for paging, the speaker can cover approximately a 500 sq ft area (based on 10' ceiling) making it great for indoor IP paging and emergency notifications. With its internal microphone, this speaker can also be used as a talk-back speaker to create a full or half duplex intercom.

There are additional external connections for a microphone, call button and power.

The IP7 Firmware Feature enables compatibility with Digital Acoustics TalkMaster FOCUS software and/or to SIP based phone systems.

The S3 Firmware Feature enables  an IP Endpoint to connect to a SIP based Phone System.

The S3/InformaCast Firmware Feature enables the IP Endpoint to connect to Singlewire's InformaCast software and to SIP based Phone systems. Please note that InformaCast only supports outbound paging even on products that have two-way capabilities.

Order Summary



SKU

Firmware Feature

Manufacturer Part # (MPN)

GC-IPIC-SPKR-IP-CS IP7 SPKR-IP-CS
GC-IPIC-SPKR-IP-CS-S3 SIP Only SPKR-IP-CS-S3
GC-IPIC-SPKR-IP-CS-IC InformCast SPKR-IP-CS-S3-IC

Features

  • SIP and TalkMaster FOCUS compliant
  • Integrated 8 watt amplifier
  • Integrated microphone for 2-way audio
  • Status LED
  • Standard 2.0 ft x 2.0 ft ceiling tile form

Documents and Drivers

Documentation

SPKR-IP-CS​ Ceiling Tile Speaker Datasheet

SPKR-IP-CS​ Ceiling Tile Speaker Reference Manual

SPKR-IP-CS​ Ceiling Tile Speaker Getting Started Guide

SPKR-IP-CS​ Ceiling Tile Speaker SIP Getting Started Guide

Specifications

Audio Resolution

G.711 uLawor 8-bit PCM

Audio Sample Rate

  • 8K (Voice band)
  • 22K (Background Music)

Certifications

CE, FCC, RoHS compliant

Core

ICC-512 50 MIPS System on a Chip

Dimensions

23.75” (600mm) x 23.75” (600mm) x 3.875” (98mm)

Frequency

Audio: 90-4kHz (Voice band), 90-11khz (Background Music)

Humidity

10~90%

Indicators LED

USB

Internal Amplifier

8 watts @ 8 Ohms

MPN

SPKR-IP-CS, SPKR-IP-CS-S3, SPKR-IP-CS-S3-IC

Network Interface

10/100 Ethernet (Auto detection, Auto MDIX)

Power

  • PoE (802.3af). Requires 15.4 watts from PSE.
  • Optional external power 12VDC at 1.2 Amps

Protocols

  • Network: DHCP, HTTP, TCP, UDP/RTP, ICMP, IGMP Multicast, SIP
  • 8K uLaw. Background music at 22K uLaw

Temperature Range

  • Operating: -30°C to +70°C (-22°F to 158°F)
  • Storage: -40°C to 85°C (-40°F to 185°F)
