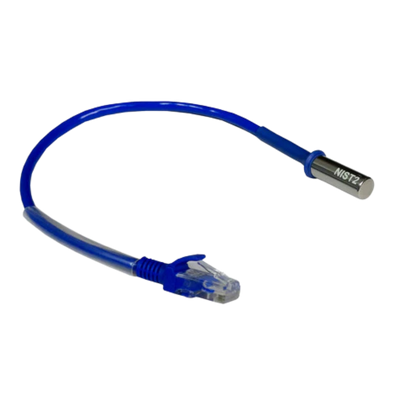

NIST3 Temperature Sensor
NIST3 Temperature Sensor
Product Images
Stock Status: In stock
We Have You Covered
Product Information
Product Description
The NIST3 temperature sensor has built in calibration check and fail-over capability. Built in calibration check uses 3 NIST calibrated sensors working in 3 pairs. The primary sensor value is checked by the secondary sensor once a second for accuracy. I f a range greater than the stated accuracy is detected, an alert is given that the sensor is out of calibration. The sensor will automatically fail-over and continue monitoring with a seamless graph of data.
Suitable for situations where a high accuracy, calibrated sensors are needed with backup for critical monitoring applications.
NOTE: NIST3 sensors only compatible with any SP+ (sensorProbe+) base units.
Order Summary
SKU |
Cable Length
|
Manufacturer Part # (MPN) |
---|---|---|
GC-AK-TMP01-NIST3 | 1 Foot Fixed Length |
TMP01-NIST3 |
GC-AK-TMPxx-NIST3 | Custom (call to order) | TMPxx-NIST3 |
Features
- Added Protection
The stainless steel tubing helps to protect the temperature sensor from everyday use in busy server room environments. - Water-Resistant Sensor Housing
The stainless steel tube reduces the risk of sensor failures caused by water damage. - Easier To Install
Temperature sensors ship with cables and temperature sensor clips for easy installation in server cabinets. - Reduced Complexity
Custom-length cables suitable for any installation. Contact us for information - Semiconductor, microprocessor-controlled type temperature sensor
- Can be extended up to 900ft (274m) with standard CAT5 cable
- Own SNMP OID for data collection over a network
- 0.5ºC resolution
Documents and Drivers
Documentation
NIST3 Temperature Sensor Datasheet
Specifications
Cable Length
- TMPxx - SPX+ - extendable 1000 feet (300 meters) with low capacitance shielded UTP cable
- TMPxx - SP2+ / SP1+ - extendable 600ft (180 meters) with low capacitance shielded UTP cable
- TMP01 - 1 foot fixed length
Calibration
- NIST traceable Calibration Certificate
- Built in calibration check, alerts when sensor needs re-calibration
Communications cable
RJ-45 jack to sensor using UTP CAT5e/6 cable
Dimensions
56 x 55 x 33.3 mm (2.2 x 2.17 x 1.31 inch)
Measurement Accuracy
sensorProbe+ series
- ±0.2°C accuracy from -10°C to +75°C
- ±0.5°F accuracy from +14°F to +167°F
Measurement Range
-55°C to +75°C (-67°F to +167°F)
Measurement Resolution
sensorProbe+ series
- 0.1°C increments
- 0.2°F increments
Power
Powered by the base units. No additional power needed
Power Consumption
Typical 7.25mWatt, 1.45mA
Sensor Type
Semiconductor, microprocessor controlled
