$235.00

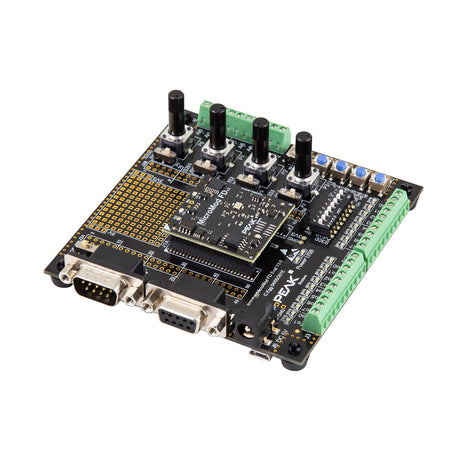

PCAN-MicroMod FD Evaluation Kit
PCAN-MicroMod FD Evaluation Kit
Product Images
PCAN-MicroMod FD Evaluation Kit
$514.00
Regular price: $549.00
SKU: GC-CAN-MICROMOD-FD-DK
MPN: IPEH-003082
Manufacturer: Peak System Technik
Stock Status: In stock
We Have You Covered
Product Information
Product Description
The PCAN-MicroMod FD Evaluation Kit includes the PCAN-MicroMod FD Module and Evaluation Board. The kit allows CAN and CAN FD networks to be customized with the integration of I/O functionality and gives the user access to the Micro-Mod resources for circuit testing and configuration checks.
The configurations are transferred to the MicroMod CPU via the CANbus with the provided Windows® software. An independent CAN node is created with each configuration. The software includes I/O mapping to CAN IDs and function blocks for processing data for both analog and digital I/O signals.
PCAN-MicroMod FD Evaluation Board includes:
- PCAN-MicroMod FD Module
- PCAN-MicroMod FD Evaluation Board
- USB Connector Cable
- PCAN-MicroMod FD Configuration for Windows® 10, 8.1, 7
- CAN Interface PCAN-USB FD
- 2m CAN Cable with Termination
Features
- NXP LPC54618 microcontroller with Arm® Cortex® M4 core
- Pick-offs for all pins of the PCAN-MicroMod FD
- Low-side switches for the digital outputs
- CAN bus connection via D-Sub, 9-pin (CiA® 303-1)
- Complies with CAN specifications 2.0 A/B and FD
- Switchable CAN termination of 120 Ohm
- DIP switches for status change of the digital inputs
- Protected digital inputs
- Voltage supply 5 V via Micro-USB connection or power supply unit
- LEDs for digital inputs and outputs
- 4 potentiometers for analog inputs
- Soldering fields for individual additional wiring
- RS-232 connection with V.24 signal levels for direct access to the microcontroller
- 4-bit rotary coding switch for setting the module ID
- Configuration via the CAN bus with the Windows software PCAN-MicroMod FD Configuration
- Firmware upload via CAN, USB, or RS-232; switchable via 3 buttons
- Reset button for restarting the board
Documents and Drivers
Documentation
PCAN-MicroMod FD CPU User Manual
PCAN-MicroMod FD Evaluation Board Manual
Downloads
PCAN-MicroMod FD Configuration
PCAN-Flash
PEAK-System PCAN Download Support
Specifications
Channels
1 CAN FD channel
Connector(s)
- Supply socket for barrel plug 5.5 mm outside / 2.5 mm inside
- Micro USB socket
CPU
NXP LPC54618, Arm® Cortex® M4 core
Data Rate
- Nominal bitrates: 20 kbit/s - 1 Mbit/s
- CAN FD bitrates: 20 kbit/s - 10 Mbit/s
Dimensions
100 mm x 102 mm
Firmware
Configuration via reserved CAN ID 7E7h
Humidity
15% - 90% (not condensing)
Indicators LED
Digital inputs and outputs
Input/Output
Inputs:
- Digital Inputs: 8
- Analog Inputs: 8, 0 - 3 V
Outputs:
- Digital Outputs: 8
- Frequency Outputs: 2
MPN
IPEH-003081
Power Consumption
max. 300 mA
Power Supply
5 V DC
Product Weight
- With PCAN-MicroMod FD Module: 92 g
- Without PCAN-MicroMod FD Module: 83 g
Specifications
ISO 11898-2, CAN 2.0 A/B and CAN FD
Temperature Range
- Operating: 0ºC to 85ºC (32ºF to 185ºF)
- Storage: -40ºC to 100ºC (-40ºF to 212ºF)
Transceiver
Microchip MCP2558FD
