PCAN-MiniDisplay - Visualize & Record CAN Data
PCAN-MiniDisplay - Visualize & Record CAN Data
Product Images
PCAN-MiniDisplay - Visualize & Record CAN Data: No Case
$347.00
SKU: GC-CAN-MINI-DISPLAY
MPN: IPEH-002262
Manufacturer: Peak System Technik
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com
Display Case
-
$347.00
-
$447.00
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description

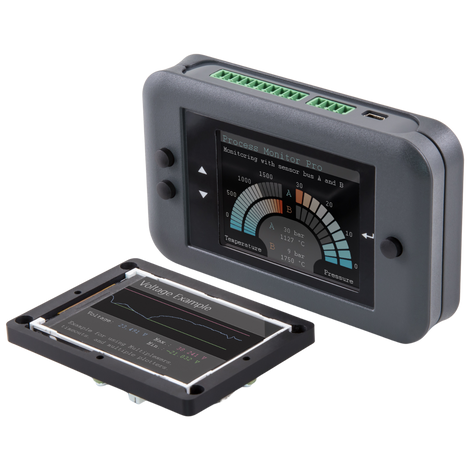

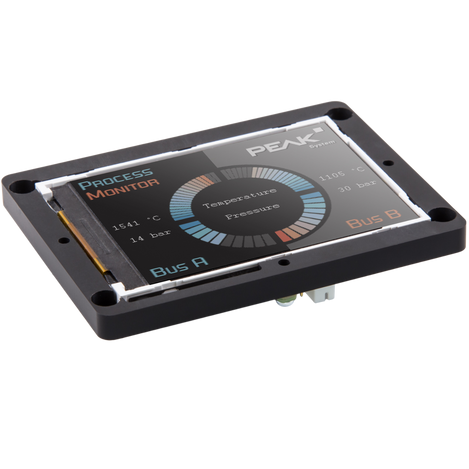

The PCAN-MiniDisplay is an interface that is used for recording and visualizing CAN data. There is a built-in, high-speed single-wire CAN connector that allows the user to create a connection to the CAN bus. Any received CAN data that can be graphically represented is configured before the device is used and is shown on the TFT display.

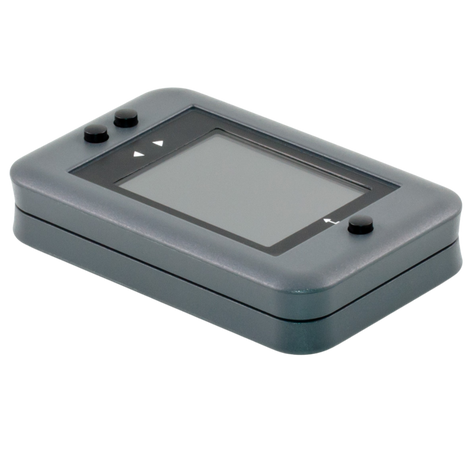

An optional durable, built-in plastic casing for the PCAN-MiniDisplay is available. This case has deep-seated push buttons that can be used to develop and evaluate specific application configurations. The user has the ability to switch between various configurations while using the PCAN-MiniDisplay.
Content in Box
PCAN-MiniDisplay Includes:
- PCAN-MiniDisplay
- Cables for power supply, CAN and digital inputs
- 512 MB memory card installed
- Conversion software PEAK-Converter for Windows 10, 8.7, 7, Vista (32/64-bit)
- Manual
- PCAN-MiniDisplay in plastic housing including mating connectors
- 512 MB memory card installed
- Conversion software PEAK-Converter for Windows 10, 8.7, 7, Vista (32/64-bit)
- Manual
Order Summary
SKU |
Display Case |
Manufacturer Part # (MPN) |
|---|---|---|
| GC-CAN-MINI-DISPLAY | No Case | IPEH-002262 |
| GC-CAN-MINI-DISPLAY-CASE | Add Display Case | IPEH-002262-KSM01 |
Features
- CAN connection via a High-speed CAN and a Single-wire CAN channel (ISO 11898-2, SAE J2411)
- Complies with CAN specifications 2.0 A/B
- TFT display with 320 x 240 pixel resolution
- Slot for microSD memory card (max. 32 GByte)

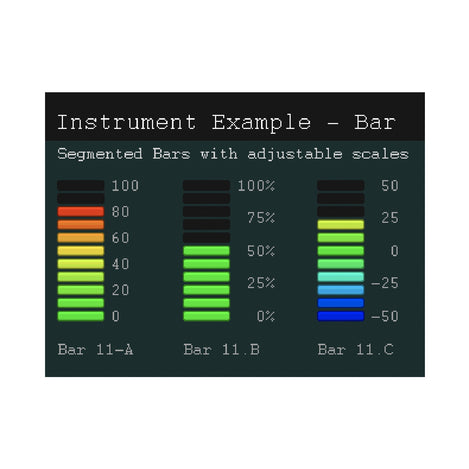

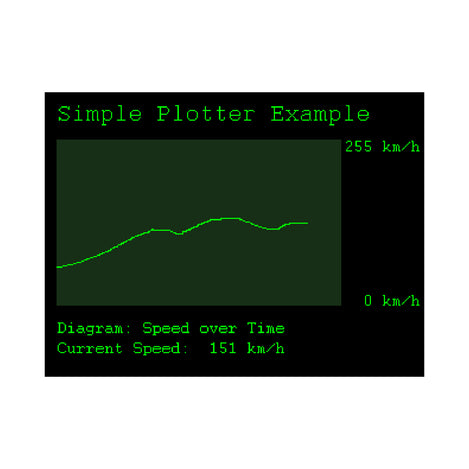

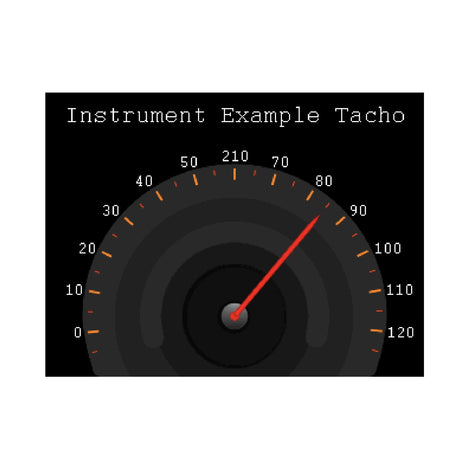

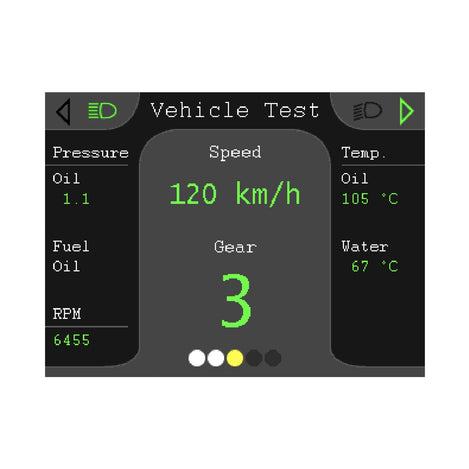

- Freely configurable visualization of CAN data via text files
- Running configurations from the memory card
- Optional auto-start of a single configuration using a default name
- Recording of incoming CAN messages to the internal memory card
- Conversion of trace data to various output formats using Windows® software
- Filtering of CAN IDs per CAN channel
- Wake-up function via CAN
- Voltage supply from 7 to 30 V
PCAN-miniDisplay Case Option Features:
- 3 push button menu driven navigation
- Ability to switch between multiple display configurations
Documents and Drivers
Documentation
PCAN-MiniDisplay User Manual
Downloads
PCAN-MiniDisplay Package
PEAK Converter 2
PEAK-System PCAN DOWNLOAD SUPPORT
Specifications
Connector(s)
- CAN connection via a High-speed CAN and a Single-wire CAN channel (ISO11898-2, SAE J2411)
- USB port for access to the memory card using a PC
Dimensions
70 x 50 mm
Enclosure
Optional plastic housing
Included in Box
PCAN-MiniDisplay Includes:
- PCAN-MiniDisplay
- Cables for power supply, CAN and digital inputs
- 512 MB memory card installed
- Conversion software PEAK-Converter for Windows 10, 8.7, 7, Vista (32/64-bit)
- Manual
PCAN-MiniDisplay Case Option Includes:
- PCAN-MiniDisplay in plastic housing including mating connectors
- 512 MB memory card installed
- Conversion software PEAK-Converter for Windows 10, 8.7, 7, Vista (32/64-bit)
- Manual
MPN
IPEH-002262, IPEH-002262-KSM01
Temperature Range
-20 to 70 °C (-4 to 158 °F)
