PCAN-PCI/104-Express FD Card: 1 Channel

$359.00

Regular price: $365.00

Leave a review

SKU: GC-CAN-PCI-104-E-FD-1

MPN: IPEH-004080

Manufacturer: Peak System Technik

Delivery: Ships within 7-14 business days
Qualifies for Free shipping

Number of Channels

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

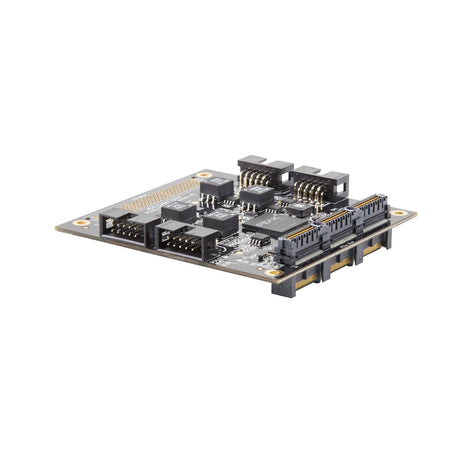

The PCAN-PCI/104-Express FD card provides an interface connection between your CAN/CAN FD network and a PCI/104-Express system. The card uses a 9-pin D-Sub connector with galvanic isolation of 500 Volts, and supports up to 4 cards stacked together.

The FD card follows the new CAN FD (Flexible Data) standards with higher bandwidth for data transfer and offers a maximum of 64 data bytes per CAN FD frame. The device is also backward compatible to CAN 2.0 A/B standards allowing it to function in existing CAN networks.

The PCAN-PCI/104-Express FD includes:

  • PCAN-PCI/104-Express FD Card
  • Slot Bracket with D-Sub Connector(s) for the CAN bus
  • PCAN View for Windows®
  • PCAN Basic for Developing Application
  • Programming Interfaces for Standardized Protocols



Order Summary



SKU

Number Of Channels

Manufacturer Part # (MPN)
GC-CAN-PCI-104-E-FD-1 1 Channel IPEH-004080
GC-CAN-PCI-104-E-FD-2 2 Channels IPEH-004081
GC-CAN-PCI-104-E-FD-4 4 Channels IPEH-004082

Features

  • PCI/104-Express card, 1 lane (x1)
  • Complies with CAN specifications 2.0 A/B and FD
  • CAN FD support for ISO and Non-ISO standards switchable
  • CAN FD bit rates for the data field (64 bytes max.)
  • CAN bit rates from 20 kbit/s up to 1 Mbit/s
  • 9-pin D-Sub Connector (CiA® 303-1)
  • Microchip CAN transceiver MCP2558FD
  • Galvanic isolation up to 500 V (each CAN channel)
  • PCIe data transfer via bus master DMA
  • DMA memory access operations with 32- and 64-bit addresses
  • Induced error generation for incoming and outgoing CAN messages

Documents and Drivers

Documentation

PCAN-PCI/104-Express FD User Manual

Downloads

Device Driver Setup - Windows® 11 & 10
Installation package with device drivers and tools for PC interfaces. Includes tools: PEAK-Settings, CAN monitor PCAN-View, LIN monitor PLIN-View Pro, Virtual PCAN-Gateway

Device Driver Setup - Outdated Windows Versions

Device driver for Linux

PEAK-System PCAN Download Support

Specifications

Baud Rate

CAN FD : max 12 Mbit/s

Connector(s)

  • CAN: D-Sub (m), 9-pin (CiA® 303-1)
  • PCIe/104: PCI Express x1 (1 Lane), Pin assignment according to specification CiA® 303-1

Controller(s)

FPGA implementation

Data Bits

  • CAN bit rates: 20 kbit/s - 1 Mbit/s
  • CAN FD bit rates: 20 kbit/s - 12 Mbit/s

Dimensions

90.2 mm x 95.9 mm

EMC Directive

  • Directive 2014/30/EU
  • DIN EN 55024:2016-05
  • DIN EN 55032:2016-02

Humidity

15% to 90% (non-condensing)

Isolation

up to 500 V, separate for each CAN channel

MPN

IPEH-004080, IPEH-004081, IPEH-004082

Power Consumption

  • 1 Channel: max 220 mA
  • 2 Channel: max 230 mA
  • 4 Channel: max 270 mA

Power Supply

5 V

Product Weight

  • 1 Channel: 44 g
  • 2 Channel: 50 g
  • 4 Channel: 56 g

ROHS Directive

  • Directive 2011/65/EU
  • DIN EN 50581 VDE 0042-12:2013-02

Software

Supports Windows 11 & 10

Specifications

  • CAN FD ISO 11898-1: 2015
  • ISO 11898-2 (High-speed CAN)
  • CAN FD non-ISO
  • CAN 2.0 A (standard format) and 2.0 B (extended format)

Temperature Range

  • Storage: -40°C to +125°C (-40°F to +257°F)
  • Operating: -40°C to +85°C (-40°F to +185°F)

Termination

via solder bridges, disabled at delivery

Transceiver

MCP2558FD
