PCAN-PCI Express FD: Single Channel

$305.00

Leave a review

SKU: GC-CAN-PCI-E-FD-1

MPN: IPEH-004026

Manufacturer: Peak System Technik

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the continental US

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

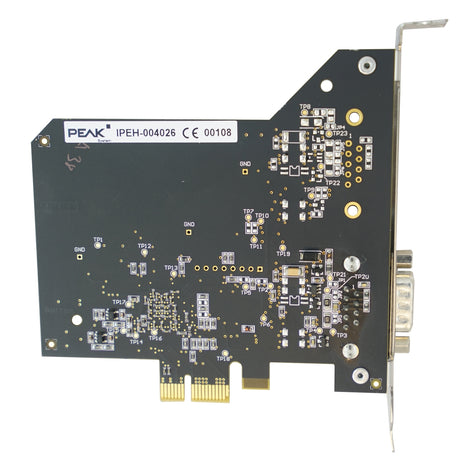

The PCAN-PCI Express FD with single channel, connects a PC using a PCI Express slot to a CAN FD or CAN network. Using galvanic isolation, the device is able to achieve up to 500 Volts between the computer and CAN interface. The 2-channel version is pictured.

The CAN interface card was developed to the CAN FD standards, providing higher bandwidth data transfers. This allows up to 64 data bytes per CAN FD frame with transmission bit rates up to 12 Mbit/s during the data payload part of the frame.

The CAN FD is downward-compatible to CAN 2.0 A/B standard and can be used with existing networks.

Features

  • PC plug-in card (PCIe x1) for PCI Express slots
  • PCIe data transfer via bus master DMA
  • DMA memory access operations with 32- and 64-bit addresses
  • Extended operating temperature range -40 to 85 °C (-40 to 185 °F)
  • 1 High-speed CAN channel (ISO 11898-2)
  • Complies with CAN specifications 2.0 A/B and FD
  • CAN FD bit rates for the data field (64 bytes max.) from 25 kbit/s up to 12 Mbit/s
  • CAN bit rates from 25 kbit/s up to 1 Mbit/s
  • Galvanic isolation on the CAN connection up to 500 V, separate for each CAN channel
  • CAN termination can be activated through a solder jumper, separately for each CAN channel
  • Measurement of bus load including error frames and overload frames on the physical bus
  • Induced error generation for incoming and outgoing CAN messages
  • 5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
  • CAN FD support for ISO and Non-ISO standards switchable

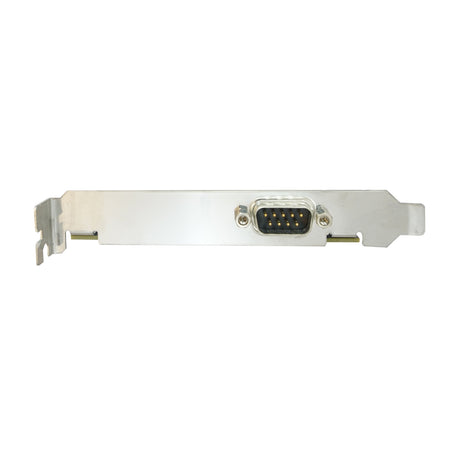

  • CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 303-1)
  • FPGA implementation of the CAN FD controller
  • NXP TJA1044GT CAN transceiver

Documents and Drivers

Documentation

PCAN-PCI Express FD User Manual

Downloads

Device Driver Setup - Windows® 11 & 10
Installation package with device drivers and tools for PC interfaces. Includes tools: PEAK-Settings, CAN monitor PCAN-View, LIN monitor PLIN-View Pro, Virtual PCAN-Gateway

Device Driver Setup - Outdated Windows Versions

Device Driver Setup - Outdated Windows Versions

PCI-Express FD Package

PEAK-System PCAN DOWNLOAD SUPPORT

Specifications

Connector(s)

  • PCI Express x1 (1 lane)
  • D-Sub (m), 9 pins Pin assignment according to specification CiA® 303-1

Controller(s)

FPGA implementation

Dimensions

121 x 114 mm (H x W)

EMC Directive

  • Directive 2014/30/EU
  • DIN EN 55024:2016-05
  • DIN EN 55022:2011-12

Highspeed CAN

1 High-speed CAN Channel (ISO 11898-2)

Humidity

15 - 90 %, not condensing, relative

Interface(s)

  • PCAN-Basic
  • CAN FD

MPN

IPEH-004026

Power Supply

Max. 200 mA, Max. 50 mA

Product Weight

55 g

Protocols

  • CAN FD ISO 11898-1:2015
  • CAN FD non-ISO
  • CAN 2.0 A/B

Software

Supports Windows 11 & 10

Temperature Range

  • Storage: -40 to 125 °C ( -40 to 257 °F)
  • Operating: -40 to 85 °C (-40 to 185 °F)

Transceiver

NXP TJA1044GT
