PCAN-Router FD - CAN FD & CAN Router: DB9 Connector

$296.00

Leave a review

SKU: GC-CAN-ROUTER-DB9-FD

MPN: IPEH-002214

Manufacturer: PEAK-System

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping

Best price guaranteed!* Learn more.


Call now for volume and discounted price match information.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

Connector

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

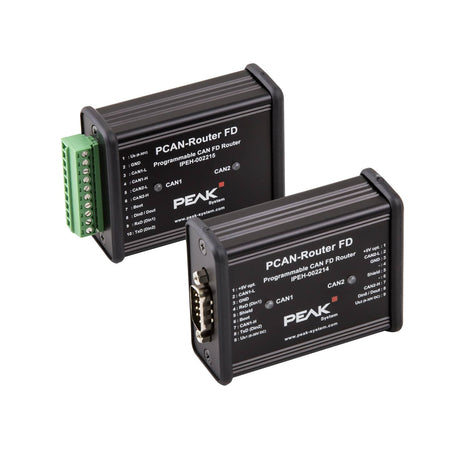

The PCAN-Router FD allows for the conversion between CAN FD and CAN, making it extremely simple to integrate CAN FD applications into existing CAN 2.0 networks. Used to establish connections between any two CAN FDs or CAN busses, this router is a universal, programmable controller based on the powerful ARM Cortex M4F microcontroller.

This module is openly programmable, allowing the user to control the module’s behavior and data routing between both of the CAN FD channels. Firmware can be created and transferred to the module with a CAN connection. The user can create firmware with the programming library and GNU compiler for C and C++ programming.

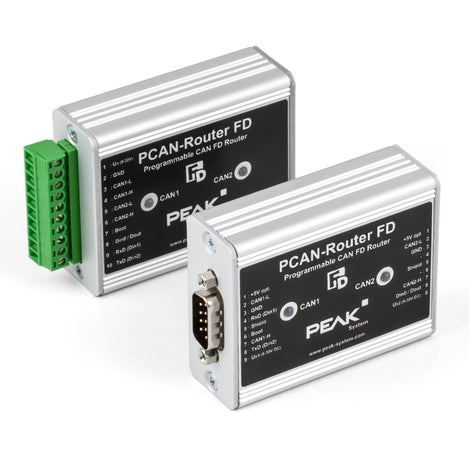

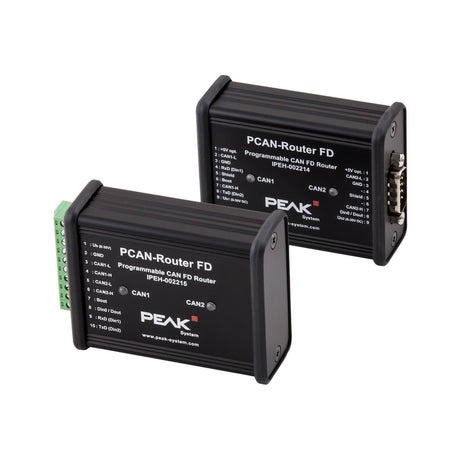

The PCAN-Router FD comes with demo firmware and a corresponding source code. The unit is in an aluminum profile casing and can be shipped with two D-Sub connectors or a screw-terminal strip as needed.

NOTE: To configure or transfer firmware via CAN, a PEAK-System CAN interface is required.

Order Summary



SKU

Connector

Manufacturer Part # (MPN)

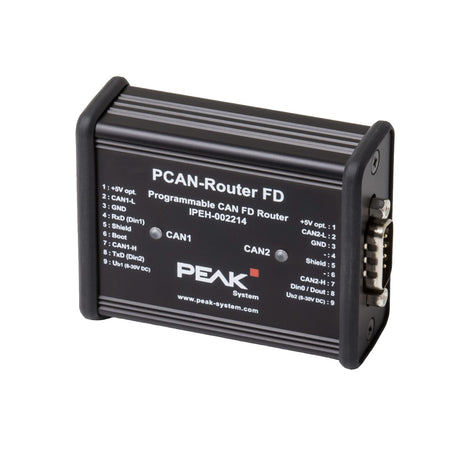

GC-CAN-ROUTER-DB9-FD DB9 Connector IPEH-002214

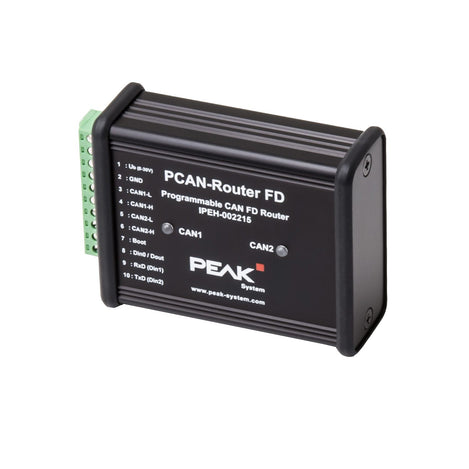

GC-CAN-ROUTER-PHX-FD Terminal Block Connector IPEH-002215

Documents and Drivers

Documentation

PCAN-Router FD User Manual View (PDF)

Downloads

PCAN-Router FD Package Download (ZIP)


CAN Download Support:


View the available Peak System downloads:

Specifications

CAN FD

567

CHANNELS

Two high-speed CAN channels (ISO 11898-2) with

  • CAN transmission rates from 25 kbit/s up to 1 Mbit/s
  • CAN FD transmission rates for data field (64 bytes max) from 25 kbit/s up to 12 Mbit/s
  • Comply with CAN specifications 2.0 A/B and FD
  • CAN FD support for ISO and Non-ISO standard
  • NXP TJA1044GT CAN transceiver

CONNECTOR(S)

  • 2, 9-pin D-Sub RS-232 connector option
  • 1, 10-pole screw-terminal strip (Phoenix) option

CPU

NXP LPC40778 microcontroller (ARM Cortex M4 with FPU, 120MHz)

DATA RATE

40 kbit/s to 12 Mbit/s

ENCLOSURE

Aluminum casing

FIRMWARE

  • New firmware can be loaded via CAN interface
  • Requires Peak CAN interface to transfer firmware via CAN

FLASH MEMORY

4 to 8 MByte

INCLUDED IN BOX

  • PCAN-Router FD in aluminum casing
  • Terminal Block option: mating connector (Phoenix)
  • Windows® development software (toolchain with GCC ARM Embedded, flash program)
  • Library with programming examples
  • Manual in PDF format

INDICATORS LED

2 2-color LEDs

MEMORY

On chip 4 kbyte EEPROM

MPN

IPEH-002214, IPEH-002215

TEMPERATURE RANGE

Operating: -40ºC to 85ºC (-40ºF to 185ºF)

TRANSCEIVER

CAN TJA1043T
