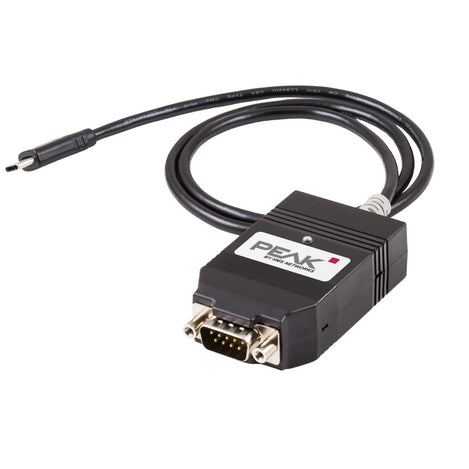

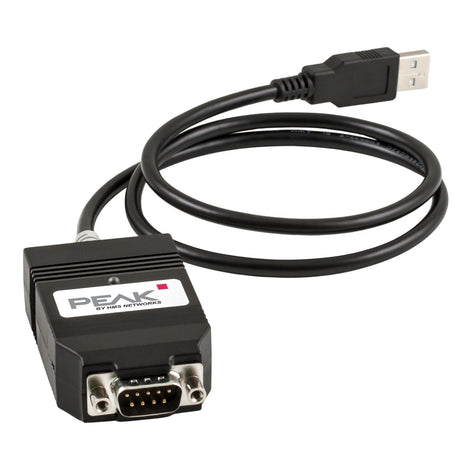

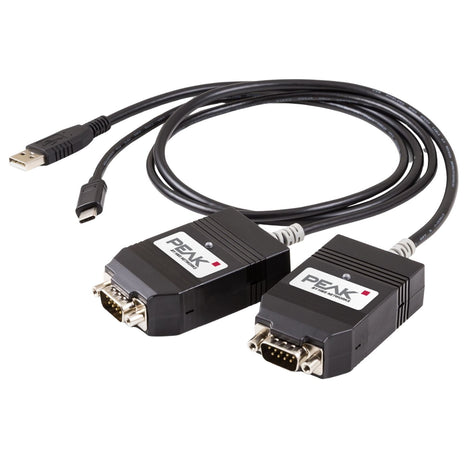

CAN USB FD Adapter (PCAN-USB FD)

$347.00

SKU: GC-CAN-USB-FD

MPN: IPEH-004022

Manufacturer: Peak System Technik

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the continental US

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Designed for engineers and developers who require reliable USB-to-CAN connectivity with fast data rates and robust isolation for industrial use.

PCAN-USB FD (IPEH-004022) is a high-performance CAN USB adapter engineered to support both CAN FD and CAN 2.0 protocols. Ideal for applications that demand precise and efficient communication, it serves as a bridge between a PC and a CAN network via USB 2.0.

This compact device features galvanic isolation up to 500 V, ensuring stable performance even in demanding environments. With data transfer speeds up to 12 Mbps for CAN FD and 1 Mbps for classic CAN, it meets the speed requirements of modern automation and diagnostic systems.

Developers working in automotive, industrial automation, and embedded system fields will find the PCAN-USB FD particularly suited for real-time monitoring and data logging. The package includes drivers for Windows and compatibility with SocketCAN for Linux, giving flexibility across platforms.

Each unit comes with the trusted PCAN-View software, allowing users to visualize and analyze CAN traffic instantly. Whether you're integrating with existing systems or developing control firmware, this tool provides the insight and access you need.

Installation is straightforward, and the adapter supports popular protocols like ISO 11898-2. From performance evaluations to field diagnostics, the PCAN-USB FD adapter enhances data communication effortlessly.



Compare top CAN USB Adapters

Features

  • Supports both CAN FD and CAN 2.0 (ISO 11898-2)

  • Galvanic isolation up to 500 V for secure operation

  • USB 2.0 high-speed interface for fast data throughput

  • Data rates: up to 12 Mbps (FD) and 1 Mbps (CAN 2.0)

  • Includes PCAN-View software and Windows drivers

  • SocketCAN support for Linux environments

  • Compact and robust design with status LEDs

  • Ideal for automotive, industrial, and testing applications

  • Preloaded with pinout for Peak adapter compatibility

  • Uses NXP PCA82C251 CAN transceiver

Documents and Drivers

Documentation

PCAN-USB FD User Manual

Downloads

Device Driver Setup - Windows® 10 through 11
Installation package with device drivers and tools for PC interfaces. Includes tools: PEAK-Settings, CAN monitor PCAN-View, LIN monitor PLIN-View Pro, Virtual PCAN-Gateway

Device Driver Setup - Outdated Windows Versions

Device driver for Linux
Device drivers for PEAK CAN interfaces running on Kernel 2.6 and higher.

PEAK-System PCAN DOWNLOAD SUPPORT

Specifications

Baud Rate

  • CAN: 40 kbit/s - 1 Mbit/s
  • CAN FD: 40 kbit/s - 12 Mbit/s

CAN FD

567

Connector(s)

  • Computer: USB plug type A
  • CAN: D-Sub (m), 9 pins; Pin assignment according to specification CiA® 102

Controllers

FPGA implementation

Dimensions

  • Case: 75 x 43 x 22 mm
  • Cable: about .75 m

EMC Directive

  • EN 55024: 2011-09
  • EN 55022: 2011-12
  • EC directive 2004/108/EG

Enclosure

IP20, Plastic Casing

Interface(s)

  • CAN: Transmission Standards: CAN FD, ISO 11898-2 (High-speed CAN)
  • CAN: Time Stamp Resolution: 1 μs
  • CAN: Termination: Switchable, disabled at delivery
  • USB: High-speed USB 2.0 (compatible with USB 1.1 and USB 3.0)

Isolation

Galvanic isolation up to 500 V

MPN

IPEH-004022

Pinout

CiA® 102 (CAN-L = 2, GND = 3 & 6, CAN-H = 7)

Power Consumption

Max. 100 mA

Product Weight

68 g

Software

  • Device drivers for Windows® 10 & 11
  • PCAN-View CAN monitor for Windows®
  • PCAN-Basic programming interface

Specifications

CAN FD 1.0 and CAN 2.0 A/B

Supported OS

  • Supports Windows 11 & 10
  • Windows Server

Temperature Range

  • Storage: -40°C to +100°C (-40°F to +212°F)
  • Operating: -40°C to +85°C (-40°F to +185°F)
  • Transport: -40°C to +100°C (-40°F to +212°F)

Humidity

15 - 90 %, not condensing

Transceiver

NXP TJA1044GT

Voltage

+5 V DC (via USB port)
