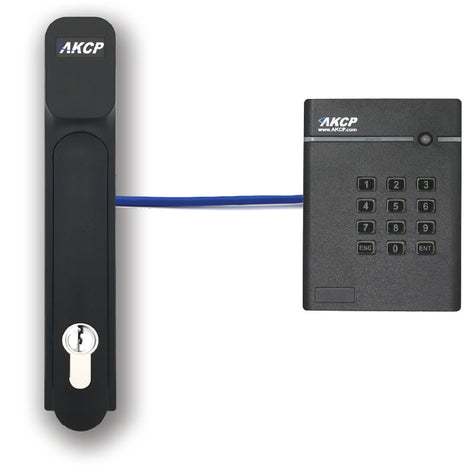

RFID Swing Handle Lock Sensor With Dual Authentication: 1 Handle

$395.00

Leave a review

SKU: GC-AK-SHL-DA

MPN: SHL-DA

Manufacturer: AKCP Co Ltd.

Delivery: Ships within 7-14 business days
Qualifies for Free shipping

Handles

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp The Swing Handle Lock with Dual Authentication, allows you to require either both a PIN number and an RFID card, or only a PIN number, in order to access the lock. The PIN number and RFID card provides dual authentication.  The PIN number only, allows remote cabinet access without the need to distribute RFID cards.  A one time access PIN can be assigned.

The SHL-DA can also have third party MiFare and HID card readers plugged in for those using encrypted RFID cards. A maximum of 2 SHL-DA can be connected to a single SPX+ or SP2+.

The Swing Handle Lock is compatible with a wide range of industry standard computer cabinets, making it a simple to install and upgrade your data center. Equipped with an RFID reader, you can control and monitor access to your computer cabinets from a centralized software platform (AKCPro Server).

Keep an audited trail of who entered what cabinet and when, how long they were there,  and be alerted if cabinets are left unlocked. Additional security sensors can monitor side panels. A manual keylock override is provided, and also monitored for use.

Bundle packages with two handles can be ordered for controlling access to both front and rear of the cabinet.

Order Summary



SKU

Handles

Manufacturer Part # (MPN)

GC-AK-SHL-DA 1 Handle DA
GC-AK-SHL-DA-01 2 Handle Bundle DA-01

Features


  • Backlit AKCP logo displays lock status (normal, access granted, access denied)
  • RFID Proximity card reader
  • Single CAT5 cable connection provides communication and power
  • Industry standard size. Fits most computer cabinets from major manufacturers
  • Manual  keylock override gives access in the event of power failure

Documents and Drivers

Documentation

RFID Swiing Handle Lock Sensor With Dual Authentication Datasheet

Specifications

Access Control

Up to 500 users Authentication : Card or Card+PinCode

Cable Length

Maximum: Run length is 12 feet (5 meters) with approved low capacitance shielded cable or UTP

Communications Cable

RJ-45 jack to sensor using UTP CAT5e/6 cable

Dimensions

210.6 x 37.0 x 43.8 mm (8.29 x 1.46 x 1.72 in)

Humidity

Ambient: 10%-90%

Indicator LED

RGB Color LED : Lock status and Access Control status

Power

Powered by the sensorProbe+ familiy units. No additional power needed

Power Consumption

  • Typical 800 mWatt, 160 mA
  • Peak 1.75 Watt, 350 mA

Proximity Reading Range

0-5cm

Supported Card Reader

  • + AKCP Keypad EM Reader
  • + 3rd Party Readers : miFare, HID, EM Proximity with CardID wiegand output on 26bits, 30bits 32bits

Supported Cards

  • AKCP EM Reader :
  • EM-Card, 125Khz Proximity cards, 26bits
  • K4100/EM4100/EM4200/T5577

Temperature Range

Ambient: -25°C to +75°C (-13°F to +167°F)

Voltage

Working: DC 5V
