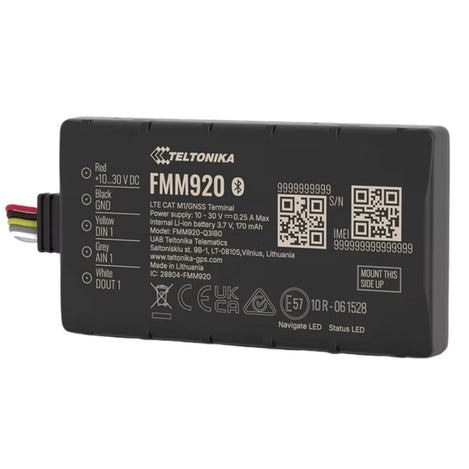

FMM920 - Compact Bluetooth basic tracker, 4G LTE Cat M1
FMM920 - Compact Bluetooth basic tracker, 4G LTE Cat M1
Product Images
FMM920 - Compact Bluetooth basic tracker, 4G LTE Cat M1
$79.50
SKU: GC-TTEL-FMM920
MPN: FMM92034US01
Manufacturer: Teltonika Telematics
Delivery: Ships within 7-14 business days
Free shipping to the continental US on orders over $100
We Have You Covered
Skip To Footer
Product Information
Product Description
A compact, low-profile tracking module integrating Bluetooth® connectivity, high-gain internal GNSS and GSM antennas, and an onboard backup battery. Designed for reliable deployment across demanding fleet and asset tracking environments. This model is compact, reliable, accurate and enduring. With its interfaces, it has more than enough for basic tracking.
- Connectivity: 4G LTE CAT M1
- GNSS: High Gain Internal
- Wireless: Bluetooth®
- Battery: Backup integrated
4G LTE Cat M1 cellular interface
The FMM920 operates on the 4G LTE Cat M1 standard, providing significantly higher bandwidth and reduced latency while maintaining improved spectrum efficiency suited to high-density IoT deployments.
Digital I/O
The Digital Input supports real-time monitoring of ignition state, door position, or alarm button status monitoring. The Digital Output provides a configurable control line for remote vehicle immobilization.
Analog Input
The Analog Input channel extends the device's sensing capability beyond basic telemetry, supporting signal acquisition from temperature probes, humidity sensors, and liquid level transducers — accommodating a wide range of field instrumentation and operational monitoring requirements.
GNSS & GSM
FMM920 is a tracking terminal with GNSS and GSM connectivity, that is able to collect device coordinates and transfer them via GSM network to a server. This device is perfectly suitable for applications requiring the location of remote objects.
Application scope
The FMM920 is well-suited for integration into diverse fleet configurations and transportation verticals. Its interface set covers the core requirements of track & trace and fleet management without over-specifying for basic use cases. Field performance of the predecessor platform has validated this device as a perfect choice for basic track & trace and fleet management.
Features
- Eco driving scenario for all-round better driving - Achieve efficient fuel consumption, prolong vehicle life and increase road safety
- Slim design to fit the tightest spaces - 12 mm-height device can be easily fitted in the tightest spaces
- Extensive remote monitoring possibilities - Blocking engine remotely among the numerous available fleet control measures
- Extended product usage scenarios - Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement
Documents and Drivers
Documentation
FMM920 Datasheet
FMM920 Quick Manual
Specifications
MODULE
Name
FMM920-Q3IB0: Quectel BG95-M3 with Teltonika TM2500
Technology
LTE Cat M1/NB-IoT/GSM/GPRS/GNSS/BLUETOOTH® LE
GNSS
GNSS
GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver
33 tracking channels / 99 acquisition channels
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Hot start
< 1 s
Warm start
< 25 s
Cold start
< 35 s
CELLULAR
Technology
LTE Cat M1/NB-IoT/GSM
2G bands
BG95-M3: B2/B3/B5/B8
4G LTE Cat M1 bands
Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
Data transfer
LTE: Max. 588 Kbps (DL) / Max. 1119 Kbps (UL); GPRS: Max. 107 Kbps (DL) / Max. 85.6 Kbps (UL)
Data support
SMS (text/data)
POWER
Input voltage range
10–30 V DC with overvoltage and reverse polarity protection
Internal backup battery
170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Power consumption @ 12V
< 2 mA Ultra Deep Sleep / < 3 mA Deep Sleep / < 8 mA Online Sleep / < 12 mA GPS Sleep / < 28 mA Nominal
Bluetooth® TECHNOLOGY
Specification
4.0 + LE
Supported peripherals
EYE beacon and sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE beacons and sensors support
PHYSICAL SPECIFICATION
Dimensions ( L x W x H)
79 x 43 x 12 mm (3.1 x 1.7 x 0.47 in)
Weight
54 g (0.12 lb)
OPERATING ENVIRONMENT
Operating temperature (without battery)
-40°C ~ 85°C (-40°F ~ 185°F)
Storage temperature (without battery)
-40°C ~ 85°C (-40°F ~ 185°F)
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP54
Battery charge temperature
0 °C ~ 45°C (32°F ~ 113°F)
Battery discharge temperature
-20°C ~ 60°C (-4°F ~ 140°F)
Battery storage temperature
-20°C ~ 45°C (-4°F ~ 113°F)(1 month) / -20°C ~ 35°C (-4°F ~ 95°F) (6 months)
Operating temperature (with battery)
-20°C ~ 40°C (-4°F ~ 104°F)
INTERFACE
Digital Inputs
1
Digital Outputs
1
Analog Inputs
1
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
2.0 Micro-USB
LED indication
2 status LED lights
SIM
Micro-SIM
Memory
128 MB internal flash memory
FEATURES
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration & firmware update
FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology)
SMS
Configuration, Events, DOUT control, Debug
GPRS commands
Configuration, DOUT control, Debug
Time Synchronization
GNSS, NITZ, NTP
Fuel monitoring
LLS (Analog), OBDII dongle
Ignition detection
Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
CERTIFICATIONS
Regulatory
FMM920-Q3IB0: CE/RED, E-Mark, RCM, RoHS, REACH, Anatel
