PCAN-MicroMod FD - I/O OEM Module

$138.00

Leave a review

SKU: GC-CAN-MICROMOD-FD-CPU

MPN: IPEH-003080

Manufacturer: Peak System Technik

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping
Best price guaranteed!* Learn more.
Call now for volume and discounted price match information.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

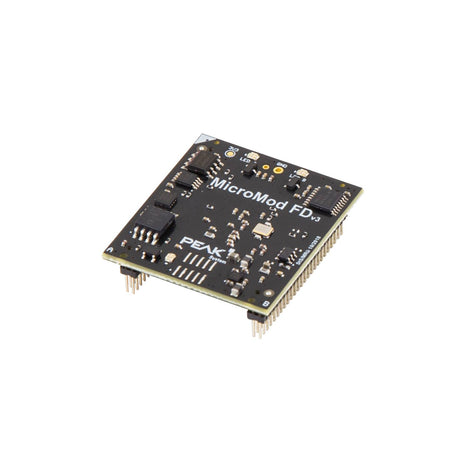

The PCAN-MicroMod FD Module is a compact device that integrates I/O functionality into CAN and CAN FD networks allowing for customized OEM designs.

With the provided Windows® software, configurations are transferred to the CPU via the CAN bus creating an independent CAN node. The software includes I/O mapping to CAN IDs and function blocks for processing data for both analog and digital I/O signals

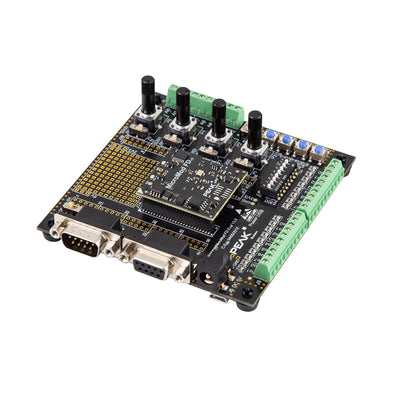

The Micro-Mod CPU is a plug-in board with a double pin strip, each strip containing 50 pins, and a NXP LPC5618 microcontroller. An evaluation board and CAN PC interface are required for connection and allows up to 32 Micro-Mod CPUs per CAN/CAN FD network.

Features

  • 2 double pin strips of 50 pins each, 50 mil pitch (1.27 mm)
  • NXP LPC54618 microcontroller with Arm® Cortex® M4 core
  • Complies with CAN specifications 2.0 A/B and FD
  • High-speed CAN connection (ISO 11898-2)
  • Microchip CAN transceiver MCP2558FD
  • 8 analog inputs:
  1. Measuring range unipolar 0 to 3 V
  2. Resolution 12 bits, sample rate 1 kHz
  • 8 digital inputs
  • 8 digital outputs
  • 2 frequency outputs
  • Measuring range unipolar 0 to 3 V
  • Resolution 12 bits, sample rate 1 kHz

Documents and Drivers

Documentation

PCAN-MicroMod FD CPU User Manual

Downloads

PCAN-MicroMod FD Configuration

PCAN-Flash

PEAK-System PCAN Download Support

Specifications

Channels

1 CAN FD channel

Connector(s)

  • 2 double pin strips, 50 pins each side
  • 50 mil (1.27 mm) Grid

CPU

NXP LPC54618, Arm® Cortex® M4 core

Data Rate

  • Nominal bitrates: 20 kbit/s - 1 Mbit/s
  • CAN FD bitrates: 20 kbit/s - 10 Mbit/s

Dimensions

33 mm x 36 mm x 13 mm

Firmware

Configuration via reserved CAN ID 7E7h

Humidity

15% - 90% (not condensing)

Input/Output

Inputs:

  • Digital Inputs: 8
  • Analog Inputs: 8, 0 - 3 V unipolar, resolution 12 Bit, sample rate 1 kHz



Outputs:

  • Digital Outputs: 8
  • Frequency Outputs: 2

MPN

IPEH-003080

Power Consumption

max. 180 mA

Power Supply

3.3 V DC

Product Weight

9 g

Specifications

ISO 11898-2, CAN 2.0 A/B and CAN FD

Temperature Range

  • Operating: -40ºC to 85ºC (-40ºF to 185ºF)
  • Storage: -40ºC to 100ºC (-40ºF to 212ºF)

Transceiver

Microchip MCP2558FD
