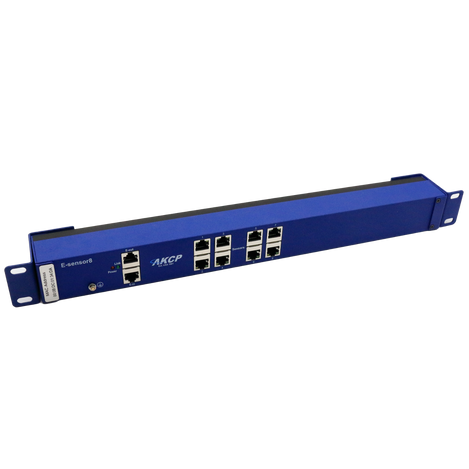

AKCP E-Sensor8 8-Port Sensor Expansion Unit: 1U

$394.00

Leave a review

SKU: GC-AK-E-IS8N

MPN: E-IS8N

Manufacturer: AKCP Co Ltd.

Delivery: Ships within 2-3 weeks
Qualifies for Free shipping to the continental US

Rack Mount

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

When your AKCP securityProbe or sensorProbeX+ runs out of sensor ports, the E-Sensor8 gives you 8 more — without adding complexity to your monitoring setup. Connect it to your base unit over standard CAT5 cable at distances up to 1,000 ft (300 m), then daisy-chain additional units as your environment grows. Each expansion unit in the chain maintains that same 1,000 ft spacing, so coverage scales with your facility.

All 8 ports support AKCP intelligent sensors and deliver configurable output signals (0 VDC or 5 VDC) per port. Three LED types give you at-a-glance status: power, expansion port connectivity, and per-sensor online/threshold state. A single IP address manages up to 600 total sensor points across your entire chain.

The E-Sensor8 is available in 2 form factors: a 1U rack mount version (E-IS8N), or a DIN rail mount (E-IS8N-DIN). Built with low-power surface mount components, it carries an MTBF of 400,000 hours.

Note: Compatible with AKCP intelligent sensors. Not compatible with SP+ smart sensors or TMP NIST2/3.

Package Includes

  • 1x E-Sensor8 expansion unit
  • 1x 5 foot long CAT-5 cable for connecting to base unit
  • 1x External 5.5V 3A power adapter (100V~240V - 0.22A)

Dimensions

DIN Rail Mount

E-IS8N-DIN measures 277.65mm h x 43.8mm w
1U Mount
E-IS8N measures 458.74 mm x 44mm


Order Summary


SKU

Rack mounting

Manufacturer Part # (MPN)
GC-AK-E-IS8N-DIN DIN Rail E-IS8N-DIN
GC-AK-E-IS8N 1U E-IS8N

Features

  • Adds 8 RJ-45 intelligent sensor ports to AKCP securityProbe or sensorProbeX+ base units
  • Connects via standard CAT5 cable up to 1,000 ft (300 m) from the base unit
  • Daisy-chainable with other E-sensor8 and E-opto16 modules - up to 1,000 ft between each unit
  • Supports up to 500 AKCP intelligent sensors on one securityProbe5ES; up to 150 on one sensorProbe+ (max 4 expansion units)
  • Monitors up to 600 total sensor points from a single IP address
  • Configurable output signals (0 VDC / 5 VDC) on any of the 8 RJ-45 ports
  • 3-type LED indication: power status, expansion port connectivity, sensor online and threshold state
  • Available in 1U rack mount (E-IS8N) or short DIN rail mount (E-IS8N-DIN)
  • Ships with a 5-ft CAT5 cable and external 5.5 VDC / 3A power adapter (100–240V input)

Documents and Drivers

Documentation

8 Port Sensor Expansion Unit Datasheet

Specifications

Dimensions

  • 1U - 458.74 x 44 mm (18.06 x 1.73 in) WxH
  • DIN rail - 43.8 mm x 277.65 mm (1.72 x 10.93 in) WxH

Sensor inputs

8× RJ-45 intelligent sensor ports

Expansion I/O

  • 1× E-In (RJ-45)
  • 1× E-Out (RJ-45)

Output signals

Configurable 0 VDC / 5 VDC on any sensor port

Network interface

2× RJ-45 expansion ports - 115.2K bps data transfer rate

Max cable run

1,000 ft (300 m) between base unit and expansion unit; same spacing between daisy-chained units

Max sensor capacity

  • 500 sensors per securityProbe5ES
  • 150 per sensorProbe+ (max 4 units)

Max monitored points

600 total from a single IP address

Power

External 5.5 VDC / 3A adapter; input: 100–240V, 1A; typical draw: 5.025W / 0.67A

Status LEDs

Power, expansion port link, sensor online and threshold

Operating temperature

-35°C to +80°C (-31°F to +176°F)

Humidity

20%–80% non-condensing

Compatibility

AKCP intelligent sensors - not compatible with SP+ smart sensors or TMP NIST2/3
