CAN PC/104 Plus Adapter (PCAN-PC104-PLUS): 4 Channels / 500V Isolated

$499.00

Leave a review

SKU: GC-CAN-PC104PL-4

MPN: IPEH-002099

Manufacturer: Peak System Technik

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the US
Call now for volume and discounted price match information.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

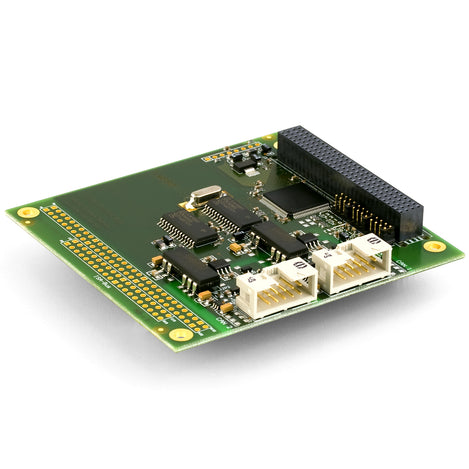

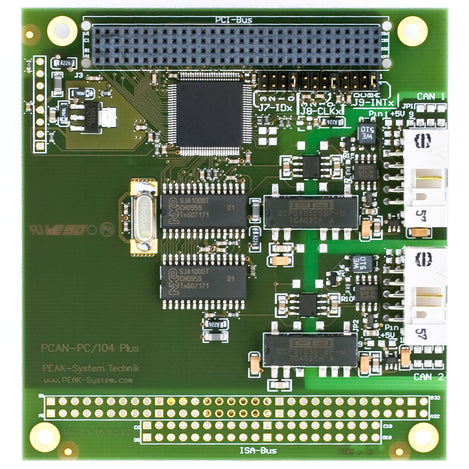

The CAN PC/104 Plus card is a high-performance solution for connecting High-Speed CAN networks with a PC/104 Plus (Based on the PCI Bus Architecture) system. This card is equipped with the SJA1000 CAN controller and the 82C251 driver. Up to four cards can be stacked within one system. The position of the card in the stack is set with jumpers.

Connection to the CAN bus is via a 10-pin upright connector. A cable from the 10 pin connector to a slot bracket with a 9-pin D-SUB connector (pin assignment in accordance with standard recommendation CiA DS 102-1) is provided. The opto-decoupled version (optional) guarantees galvanic isolation of up to 500 volts between the PC/104-Plus and the CAN using an integrated DC/DC converter and optocoupler.

The PCAN-PC/104-Plus card includes software for Windows® and sample source-code for do-it-yourself programming. Driver sources for LINUX are also available.



Order Summary



SKU

Number of Channels

Isolation/No Isolation

Manufacturer Part # (MPN)

GC-CAN-PC104PL-1-ISO 1 Channel 500V Isolated IPEH-002096
GC-CAN-PC104PL-1 1 Channel No Isolation IPEH-002094
GC-CAN-PC104PL-2-ISO 2 Channel 500V Isolated IPEH-002097
GC-CAN-PC104PL-2 2 Channel No Isolation IPEH-002095
GC-CAN-PC104PL-4 4 Channel 500V Isolated IPEH-002099

Features

  • Baud rate settings up to 1 Mbit/s
  • 1, 2, or 4 Channel versions available
  • 500V Opto-Decoupled Isolation available
  • 120-pin connection for the PCI bus
  • Up to four cards can be used in one system
  • Electrical adjustment to slot position via jumper
  • Philips CAN controller SJA10000 with 16 MHz frequency
  • CAN transceiver 82C251
  • Hardware reset possible via software
  • CAN bus connection in accordance with CiA DS 102-1

Documents and Drivers

Documentation

PCAN-PC/104-PLUS 1 & 2 Channel User Manual

PCAN-PC/104-PLUS 4 Channel User Manual

Downloads

PCAN-PC/104-PLUS Windows Drivers, PCAN-VIEW, PCAN-BASIC DLL/APIs

PCAN-PC/104-Plus Linux Drivers

PEAK-System PCAN Download Support

Specifications

Baud Rate

CAN: max. 1 Mbit/s

Certifications

CE, RoHS

Conenctor(s)

10-pin Upright Connector

Controller(s)

CAN: NXP / Philips SJA1000

Dimensions

96 x 91 x 15 mm

Directive

  • EN 55024:2003-10
  • EN 55022:2007-04
  • EC directive 89/336/EEC

Interface(s)

  • PC: PC/104-Plus (version 2.0), 32 bit PCI-bus, for 3.3V and 5V
  • CAN: ISO 11898-2, complies with CiA-recommendation DS 102

IO and IRQ

Automatically assigned via "plug n play"

Isolation

500 VDC (optional)

MPN

IPEH-002094, IPEH-002095, IPEH-002096, IPEH-002097, IPEH-002099

Pinout

C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)

Power Consumption

  • 1 channel - max. 150 mA
  • 2 channel - max 280 mA
  • 1 channel isolated - max 260 mA
  • 2 channel isolated - max 490 mA
  • 4 channel isolated - max 300 mA

Product Weight

  • 1 channel - 46g
  • 2 channel - 50g
  • 1 channel isolated - 47g
  • 2 channel isolated - 53g
  • 4 channel isolated - 56g

Software

  • Driver: Windows® 7, Vista, XP; Linux
  • Tools: PCAN-View for Windows®

Specifications

CAN: 2.0A (Standard format) and 2.0B (extended format)

Storage Specifications

Temperature: -40°C to +125°C (-40°F to +257°F)

Temperature Range

  • Operating: -40°C to +85°C (-40°F to +185°F )
  • Humidity: 15% to 90% (non-condensing)

Transceiver

CAN: NXP / Philips PCA82C251
