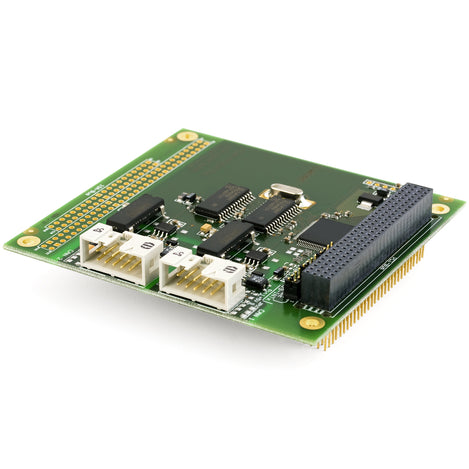

CAN PC/104 Plus Adapter (PCAN-PC104-PLUS)
CAN PC104 Plus

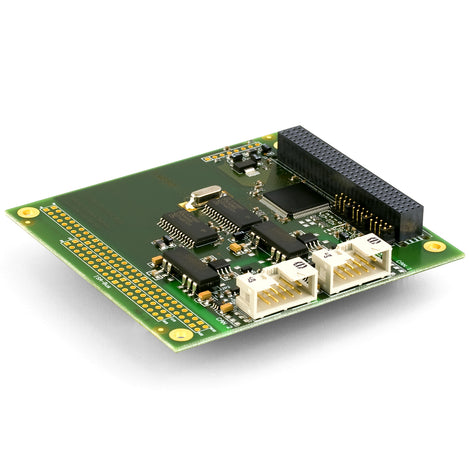

CAN PC104 Plus Angle

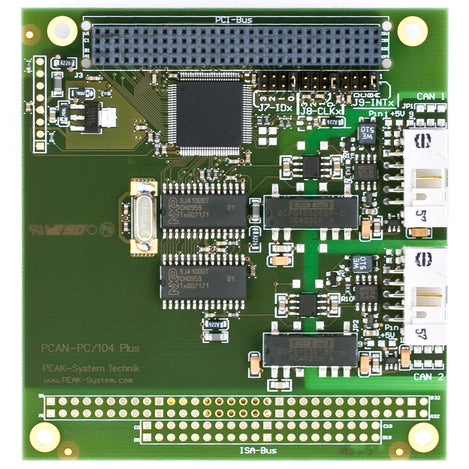

CAN PC104 Plus Top
CAN PC/104 Plus Adapter (PCAN-PC104-PLUS)
CAN PC/104 Plus Adapter (PCAN-PC104-PLUS): 2 Channels / 500V Isolated
Regular price: $469.00
Manufacturer: Peak System Technik
Select Channels / Isolation
We've Got You Covered
The CAN PC/104 Plus card is a high-performance solution for connecting High-Speed CAN networks with a PC/104 Plus (Based on the PCI Bus Architecture) system. This card is equipped with the SJA1000 CAN controller and the 82C251 driver. Up to four cards can be stacked within one system. The position of the card in the stack is set with jumpers.
Connection to the CAN bus is via a 10-pin upright connector. A cable from the 10 pin connector to a slot bracket with a 9-pin D-SUB connector (pin assignment in accordance with standard recommendation CiA DS 102-1) is provided. The opto-decoupled version (optional) guarantees galvanic isolation of up to 500 volts between the PC/104-Plus and the CAN using an integrated DC/DC converter and optocoupler.
The PCAN-PC/104-Plus card includes software for Windows® and sample source-code for do-it-yourself programming. Driver sources for LINUX are also available.
Number of Channels
Manufacturer Part # (MPN)
|GC-CAN-PC104PL-1-ISO||1 Channel||500V Isolated||IPEH-002096|
|GC-CAN-PC104PL-1||1 Channel||No Isolation||IPEH-002094|
|GC-CAN-PC104PL-2-ISO||2 Channel||500V Isolated||IPEH-002097|
|GC-CAN-PC104PL-2||2 Channel||No Isolation||IPEH-002095|
|GC-CAN-PC104PL-4||4 Channel||500V Isolated||IPEH-002099|
- Baud rate settings up to 1 Mbit/s
- 1, 2, or 4 Channel versions available
- 500V Opto-Decoupled Isolation available
- 120-pin connection for the PCI bus
- Up to four cards can be used in one system
- Electrical adjustment to slot position via jumper
- Philips CAN controller SJA10000 with 16 MHz frequency
- CAN transceiver 82C251
- Hardware reset possible via software
- CAN bus connection in accordance with CiA DS 102-1
Documents and Drivers
PCAN-PC/104-PLUS 1 & 2 Channel User Manual
PCAN-PC/104-PLUS 4 Channel User Manual
PCAN-PC/104-PLUS Windows Drivers, PCAN-VIEW, PCAN-BASIC DLL/APIs
PCAN-PC/104-Plus Linux Drivers
CAN: max. 1 Mbit/s
10-pin Upright Connector
CAN: NXP / Philips SJA1000
96 x 91 x 15 mm
- EN 55024:2003-10
- EN 55022:2007-04
- EC directive 89/336/EEC
- PC: PC/104-Plus (version 2.0), 32 bit PCI-bus, for 3.3V and 5V
- CAN: ISO 11898-2, complies with CiA-recommendation DS 102
IO and IRQ
Automatically assigned via "plug n play"
500 VDC (optional)
IPEH-002094, IPEH-002095, IPEH-002096, IPEH-002097, IPEH-002099
C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)
- 1 channel - max. 150 mA
- 2 channel - max 280 mA
- 1 channel isolated - max 260 mA
- 2 channel isolated - max 490 mA
- 4 channel isolated - max 300 mA
- 1 channel - 46g
- 2 channel - 50g
- 1 channel isolated - 47g
- 2 channel isolated - 53g
- 4 channel isolated - 56g
- Driver: Windows® 7, Vista, XP; Linux
- Tools: PCAN-View for Windows®
CAN: 2.0A (Standard format) and 2.0B (extended format)
Temperature: -40°C to +125°C (-40°F to +257°F)
- Operating: -40°C to +85°C (-40°F to +185°F )
- Humidity: 15% to 90% (non-condensing)
CAN: NXP / Philips PCA82C251
