CANedge2 with GNSS/IMU: 8 GB SD Card

$699.95

Leave a review

SKU: GC-CSS-CANEDGE2-8GB-GNSS/IMU

MPN: D014

Manufacturer: CSS Electronics ApS

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the continental US

SD Card

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

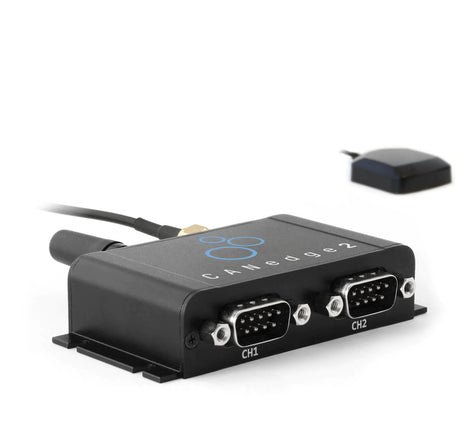

The CANedge2 with GNSS/IMU 2x CAN/LIN logger records timestamped CAN/CAN FD data to an extractable 8 GB or 32 GB industrial SD card. This compact device connects via WiFi access points to securely push data to your own server, and it supports over-the-air updates.

With GNSS/IMU, additional data is provide, e.g., such as position, speed, altitude, and acceleration.

Ideal for telematics, R&D field tests, diagnostics and predictive maintenance.

Pro specs CAN logger

The CANedge2 combines innovative design, cutting-edge components and is low cost:

  • 2 x CAN (incl. CAN FD) + 2 x LIN channels
  • Extractable 8-32 GB industrial SD card (= months of data)
  • Popular binary MDF4 log file format
  • Advanced message filtering & transmit functionality
  • Start/stop logging triggers based on CAN ID & databytes
  • Silent mode, bit rate auto-detection, cyclic logging
  • Data compression & encryption (e.g. for GDPR, CCPA)
  • Support for CAN/LIN error frame logging
  • Fast boot time. Safely disconnect during use (power safe)

 Reinventing telematics

Software/APIs are free & open source with no subscription fees or vendor lock-in.

  • Upload data to your own local/dedicated/cloud server
  • Simply add WiFi access point & server details to the config
  • Log data to the SD and auto-upload when connected to WiFi
  • Configure file split size/period to control upload frequency
  • 100% secure: HTTPS, credential encryption and more
  • Manage via over-the-air updates (firmware & configuration)
  • Power e.g. sensor-to-CAN modules via the 2nd port
  • Zero fees. Zero lock-in. Interoperable. Open source tools

 GPS & 3D IMU can enrich your data with cutting-edge GNSS/IMU functionality

  • Add 40+ GNSS/IMU signals to your 2 x CAN/LIN data
  • Full GNSS support (GPS, Galileo, BeiDou, GLONASS)
  • Built-in gyroscope (roll, pitch, yaw) and accelerometer (X, Y, Z)
  • High precision via sensor fusion - even in GNSS hostile areas
  • Signals encoded as 'internal' CAN frames (separate channel)
  • Configurable message inclusion/frequency (up to 5 Hz)
  • DBC file included for easy decoding to human-readable form
  • Optionally sync the CANedge RTC via precise GNSS time
  • Flexible deployment via external GNSS antenna

 Open source software/API

The CANedge2 uses open formats (MDF4 data, JSON config, S3 server). All software/APIs are 100% free and open source.

The software toolbox includes:

  • Editors: Easily modify your device config (online/offline)
  • CANcloud: Manage connected CANedge2 devices & data
  • S3 drive: Mount your S3 server as a 'local drive'
  • Converters: Convert data to Vector ASC, PEAK TRC, CSV, ...
  • asammdf GUI: DBC decode, plot and export your data
  • Python API: Automate your data processing & integrations
  • Dashboards: Visualize data in custom browser dashboards


Order Summary


SKU

SD Card

Manufacturer Part # (MPN)
GC-CSS-CANEDGE2-8GB-GNSS/IMU 8 GB SD Card
 #178 CANedge2 8GB + GNSS/IMU
GC-CSS-CANEDGE2-32GB-GNSS/IMU 32 GB SD Card #180 CANedge2 32GB + GNSS/IMU

Features


  • SIMPLE SETUP: Log data out-the-box. Standalone - no PC required. Power via CAN connector
  • PRO SPECS: Extractable 8-32 GB SD. 2xCAN/LIN. CAN FD. Zero data loss. 50 µs RTC. Error frames. MF4
  • COMPACT: Only 8 x 5 x 2 CM. 100G. Aluminium enclosure. 4 LEDs. Configurable 5V power out (CH2)
  • CONFIGURABLE: Advanced filters. Transmit lists. Triggers. Cyclic logging. Silent mode. Encryption
  • GNSS + 3D IMU: Built-in GNSS/IMU. 3X accuracy via sensor fusion. Position, speed, acceleration & more
  • INTEROPERABLE: Free & open source software/API. MF4 to ASC/CSV. DBC support. Python. Dashboards

Documents and Drivers

Documentation

CANedge2 with GNSS/IMU Product Manual

CANedge2 with GNSS/IMU Datasheet

CSS Datalogger Comparison - CL1000, CL2000 & CANedge Series

Specifications

Accuracy

  • Position: 2.0 m CEP (Circular Error Probable)
  • Heading: 0.3 deg | Pitch: 0.4 deg | Roll: 0.6 deg (68% at 30 m/s)
  • Velocity: 0.08 m/s

Certifications

CE, FCC, IC, KC and RoHS

Channels

  • 2 x CAN channels (incl. CAN FD support)
  • 2 x LIN channels

Connector(s)

2 x Standard D-sub 9 (DB9) connectors

Dimensions

Compact aluminum enclosure: 75 x 47 x 20 mm (2.95 x 1.85 x .79 in)

Indicators LED

Logger status via 4 external LEDs: Power, CH1, CH2, Memory

Input

Supply: +7V to +32V DC via the Channel 1 DB9 (e.g. via CAN connector power pin)

Module

Professional-grade u-blox NEO-M9V sensor module (92-channel) with built-in gyroscope and accelerometer

Power Consumption

Extremely low (~1 W) - no risk of battery drainage

Protocols

Log raw data from CAN based protocols (J1939/FMS, CANopen, NMEA 2000, OBD2, CAN FD, UDS, ...)

Real Time Clock

CAN frames are date & timestamped with 50 microsecond resolution (battery backup)

Standards

  • ISO 11898: Compliant with CAN (up to 1 Mbit/s) and ISO & Bosch CAN FD (up to 4 Mbit/s payload rate)
  • Compliant with LIN 2.0 up to 20 Kbit/s (support for Classic & Enhanced checksum format)

Temperature Range

-25°C to +70°C (-13°F to +158°F)

Weight

100 Grams
