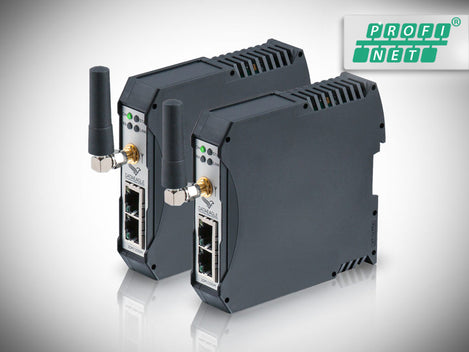

DATAEAGLE 4732 Compact - 300m Wireless PROFINET

$2,250.00

Leave a review

SKU: GC-SCH-DE-CPT-4732

MPN: 11282

Manufacturer: Schildknecht AG

Delivery: Ships within 10 to 13 business days
Qualifies for Free shipping
Antenna not included.
Please contact sales for help selecting the correct antenna for your application.

Call for information or to order.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The use of modern Bluetooth 5 radio technology inside the DATAEAGLE 4732 enables the highest requirements in terms of speed and latency to be met. This makes the DATAEAGLE 4732 perfect for high speed and safety applications.

The patented technology guarantees a highly available and reliable radio connection without radio interruptions preventing system downtimes.

An antenna is not included.  Contact sales to select the correct antenna for your application.

Features

Features of the DATAEAGLE Compact 4732


  • 2 times faster data transmission with minimized latency
  • State-of-the-art security through 128 bit AES encryption
  • Increased range up to 1 km through integrated optimization functions
  • Patented filter technology
  • Optimized for PROFINET IO and PROFIsafe
  • Plug and Play – no device or controller configuration required

Documents and Drivers

Documentation

DATAEAGLE Compact 4732 Product Guide View (PDF)

Specifications

ANTENNAS

Antenna connection: SMA Connection - 50 Ohm

CERTIFICATIONS

CE, FCC

CONNECTOR(S)

RJ 45

DIMENSIONS

99 mm x 22.5 mm x 114.5 mm (HxWxD)

FREQUENCY

2,4 GHz Bluetooth 5

MOUNTING

DIN rail mounting

MPN

11282

POWER CONSUMPTION

150 mA

PRODUCT WEIGHT

130 g

PROTOCOLS

PROFINET

RANGE

  • Range Indoor: 100 m
  • Range Outdoor: 300m

    • SECURITY/PROTECTION

    IP20

    TEMPERATURE RANGE

    -20°C to +60°C (-4°F to +140°F)

    TRANSMIT POWER

    8 dBm

    VOLTAGE

    Voltage supply: 24 V DC
    Connection Voltage supply: Terminal clamps
