$789.00

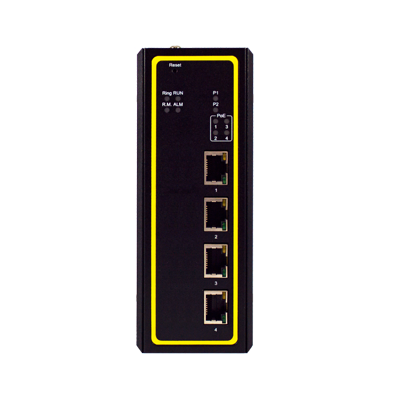

EHG7604 - 4 Port Managed Gigabit PoE Switch, PROFINET certified
EHG7604 - 4 Port Managed Gigabit PoE Switch, PROFINET certified
Product Images
EHG7604 - 4 Port Managed Gigabit PoE Switch, PROFINET certified: Non POE
$749.00
SKU: GC-ATOP-EHG7604
MPN: 1P1EHG76040001G
Manufacturer: Atop Technologies Inc.
Switch Options
-
$749.00
-
$749.00
-
$749.00
-
$849.00
-
$869.00
We Have You Covered
Product Information
Product Description
The EHG7604 series is an Industrial Grade Layer-3 Managed Gigabit Ethernet PoE Switch. It is designed to provide a highly reliable, fault-tolerant, extremely fast network connection in a harsh environment. It is also designed specifically for Automation with Profinet CC-B, MAC-based Black List/White List, IEEE 802.1x, RADIUS, TACACS+, etc., to keep your network safe.
Equipped with two terminal blocks for providing dual redundant power inputs with Reverse Polarity Protection, this switch allows field engineers to build up a stand-alone fault alarm system.
The EHG76XX family is UL, CE, FCC and NEMA TS-2 certified, allowing the use in Traffic Control Applications.
Within its compact DIN-Rail housing design, the EHG7604 series allows you to choose between different port combinations:
- 10/100/1000 BASE-T(X) RJ45 port,
- 1000 BASE-X SFP port
- IEEE 802.3af/at complaint PoE RJ45.
The 4-PoE-Port version of the EHG7604 provides up to 120W power budget. Layer-3 Features support IPv4, RIP v1/v2, OSPF v1/v2 and many more.
This switch is the right choice if you want to set up a reliable network environment with its intelligent features and keep equipment connected all the time, even in case of temporary network breakdowns through RSTP, ERPS Rings and MRP (Manager/ Client) redundancy.
Automation and IoT ready: Conforming with Profinet CC-B v2.33 makes EHG76XX the perfect candidate for being the backbone of your Industrial automation.
EN50155 and EN50121-4 Certified: Having undergone environmental testing to ensure reliable performance under a variety of power supply conditions, such as voltage variations, power interruptions, and supply changeovers, this switch series is fully EN50155-certified for today’s demanding railway applications, as well as complying with essential sections of EN50121-4 for ground equipment.
Order Summary
SKU |
RJ45 (NON-POE) |
RJ45 (POE) |
SFP |
Manufacturer Part # (MPN) |
GC-ATOP-EHG7604 | 4 | 0 | 0 | 1P1EHG76040001G |
GC-ATOP-EHG7604-2POE-2SFP | 0 | 2 | 2 | 1P1EHG76040005G |
GC-ATOP-EHG7604-2SFP | 2 | 0 | 2 | 1P1EHG76040003G |
GC-ATOP-EHG7604-4SFP | 0 | 0 | 4 | 1P1EHG76040004G |
GC-ATOP-EHG7604-4POE | 0 | 4 | 0 | 1P1EHG76040002G |
Features
- Up to 4 x 10/100/1000 BASE-T(X) RJ45 ports or 1000 BASE-X SFP slots.
- Up to 4 x 802.3af/ 802.3at Power over Ethernet ports, with maximum 30W PoE power per port and maximum 120 W device power budget.
- Powerful Layer-3 Switching, supporting IPv4 Static, RIPv1/v2 and OSPFv2
- Layer-2 Redundancy, with ERPS, RSTP, STP, MRP (Manager/ Client) and more.
- Profinet CC-B conformance
- IEEE 1588v2 Precision Time Protocol HW-based End-to-End Transparent clock
- EN50155 / EN50121-4 certified for Railway applications
- CE/FCC/UL and NEMA TS-2 Certified for Traffic Control Applications
- Works from -20°C ~ 70°C (-4°F ~ 158°F), in 4000m (2.48 miles) elevation
Documents and Drivers
Documentation
EHG7604 Series Datasheet
EHG7604 User Manual
EHG7604 Hardware Installation Guide
UKCA-Declaration of Conformity
Specifications
Standards
- IEEE 802.3af / 802.3at for Power-over-Ethernet
- IEEE 802.3/802.3u for 10BASE-T/100BASE-T(X)
- IEEE 802.3ab for 1000BASE-T
- IEEE 802.3z for 1000BASE-X
- IEEE 802.3x for Flow Control
- IEEE 802.1d-2004 for Spanning Tree Protocol
- IEEE 802.1w for Rapid Spanning Tree Protocol
- IEEE 802.1s for Multiple Spanning Tree Protocol
- IEEE 802.1q/p for VLAN Tagging and Class of Service
- IEEE 8021x for Authentication
- IEEE 802.3ad for Port Trunk with LACP
- IEEE 802.3az for Energy Efficient Ethernet
Protocols
IPv4, IPv6, IGMPv1/v2/v3, IGMP Snooping, GARP, GMRP, GVRP, SNMPv1/v2c/
v3, SNMP Inform, ICMP, Telnet, SSH, DHCP Server/Relay/Client, DHCP Option
66/67/82, BootP, RARP, TFTP, SMTP, SMTP (Gmail), RMON, HTTP, HTTPS,
Syslog, MRP (Manager/ Client), LLDP,802.1x,EAP,RADIUS,TACACS+,Mirror port, QoS, ACL
Layar 3 Protocols
- Routing: IPv4 Unicast static routing, RIP v1/v2, OSPFv2,
- Multicast: IGMPv1/v2/v3, DVMRP, PIM-DM, PIM-SM, PIM-SSM
- Routing Redundancy: VRRP (Virtual Router Redundancy Protocol)
Redundancy
ITU-T G.8032 ERPS Ring, STP, RSTP, MSTP, Compatible Ring/Chain, U-Ring
Input Voltage
- 9-57 VDC for Non-PoE models
- 45-57 VDC for 802.3af mode
- 51-57 VDC for 802.3at mode
Input Current (system)
- Max. 1.4 A @ 9 VDC (without PoE)
- Max. 3.1A @ 45VDC (Support up to 8 ports at 15.4 W per PoE port)
- Max. 5.1A @ 51VDC (Support up to 8 ports at 30 W per PoE port)
Power Connector
5-Pin 5.08mm Lockable Terminal Block
Interfaces
- RJ45 Ports: Up to 8 10/100/1000BASE-T(X) auto negotiation speed
- Fiber Optics Ports: Up to 4 1000BASE-X SFP slot
- LED Indicators: PWR1, PWR2, Alarm, Run, Ring, Ring Master, RJ-45 Link/Speed, SFP Link, PoE
- Console: RS232 (RJ45 connector)
- Relay Output: 2 relay outputs with current carrying capacity of 1A @ 24 VDC
- DIP Switches: Ring Control and Profinet Setting
- Button: Reset Button
Enclosure
IP30 aluminum housing
Dimensions
54 x 113 x 145 mm (2.1 x 4.5 x 5.7 in)
Weight
800g (1.8 lb)
Mounting
DIN-Rail
Temperature
- Operating: -20°C~70°C (-4°F~158°F)
- Storage: 40°C~85°C (-40°F~185°F)
- Ambient Relative Humidity: 5% to 95% (Non-condensing test @55°C)
Reverse Polarity Protection
Yes
