EHG7604 - 4 Port Managed Gigabit PoE Switch, PROFINET certified: 2 POE & 2 SFP Fiber Slots

$849.00

Leave a review

SKU: GC-ATOP-EHG7604-2POE-2SFP

MPN: 1P1EHG76040005G

Manufacturer: Atop Technologies Inc.

Delivery: Ships within 6-7 weeks
Qualifies for Free shipping to the US

Switch Options

We Have You Covered

Price Match delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The EHG7604 series is an Industrial Grade Layer-3 Managed Gigabit Ethernet PoE Switch. It is designed to provide a highly reliable, fault-tolerant, extremely fast network connection in a harsh environment. It is also designed specifically for Automation with Profinet CC-B, MAC-based Black List/White List, IEEE 802.1x, RADIUS, TACACS+, etc., to keep your network safe.

Equipped with two terminal blocks for providing dual redundant power inputs with Reverse Polarity Protection, this switch allows field engineers to build up a stand-alone fault alarm system.

The EHG76XX family is UL, CE, FCC and NEMA TS-2 certified, allowing the use in Traffic Control Applications.

Within its compact DIN-Rail housing design, the EHG7604 series allows you to choose between different port combinations:

  • 10/100/1000 BASE-T(X) RJ45 port,
  • 1000 BASE-X SFP port
  • IEEE 802.3af/at complaint PoE RJ45.

The 4-PoE-Port version of the EHG7604 provides up to 120W power budget. Layer-3 Features support IPv4, RIP v1/v2, OSPF v1/v2 and many more.

This switch is the right choice if you want to set up a reliable network environment with its intelligent features and keep equipment connected all the time, even in case of temporary network breakdowns through RSTP, ERPS Rings and MRP (Manager/ Client) redundancy.

Automation and IoT ready: Conforming with Profinet CC-B v2.33 makes EHG76XX the perfect candidate for being the backbone of your Industrial automation.

EN50155 and EN50121-4 Certified: Having undergone environmental testing to ensure reliable performance under a variety of power supply conditions, such as voltage variations, power interruptions, and supply changeovers, this switch series is fully EN50155-certified for today’s demanding railway applications, as well as complying with essential sections of EN50121-4 for ground equipment.


Order Summary

SKU

RJ45 (NON-POE)

RJ45 (POE)

 SFP

Manufacturer Part # (MPN)
GC-ATOP-EHG7604 4 0 0 1P1EHG76040001G
GC-ATOP-EHG7604-2POE-2SFP 0 2 2 1P1EHG76040005G
GC-ATOP-EHG7604-2SFP 2 0 2 1P1EHG76040003G

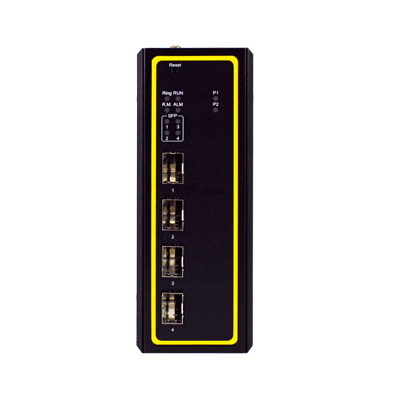

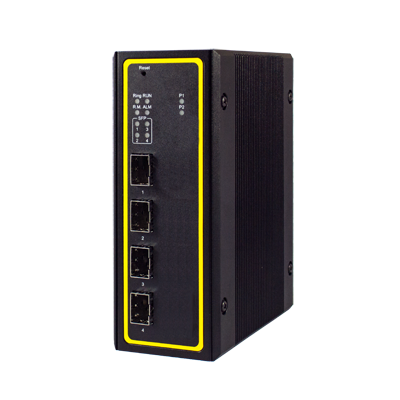

GC-ATOP-EHG7604-4SFP 0 0 4 1P1EHG76040004G

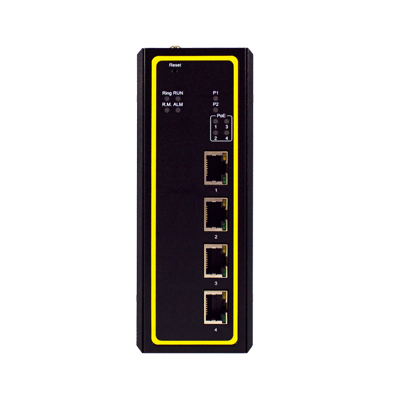

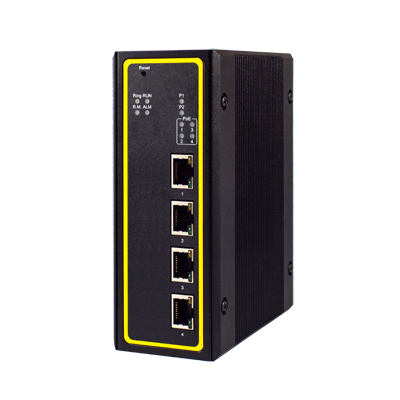

GC-ATOP-EHG7604-4POE 0 4 0 1P1EHG76040002G


Features

  • Up to 4 x 10/100/1000 BASE-T(X) RJ45 ports or 1000 BASE-X SFP slots.
  • Up to 4 x 802.3af/ 802.3at Power over Ethernet ports, with maximum 30W PoE power per port and maximum 120 W device power budget.
  • Powerful Layer-3 Switching, supporting IPv4 Static, RIPv1/v2 and OSPFv2
  • Layer-2 Redundancy, with ERPS, RSTP, STP, MRP (Manager/ Client) and more.
  • Profinet CC-B conformance
  • IEEE 1588v2 Precision Time Protocol HW-based End-to-End Transparent clock
  • EN50155 / EN50121-4 certified for Railway applications
  • CE/FCC/UL and NEMA TS-2 Certified for Traffic Control Applications
  • Works from -20°C ~ 70°C (-4°F ~ 158°F), in 4000m (2.48 miles) elevation

Documents and Drivers

Documentation

EHG7604 Series Datasheet

EHG7604 User Manual

EHG7604 Hardware Installation Guide

UKCA-Declaration of Conformity

Specifications

Standards

  • IEEE 802.3af / 802.3at for Power-over-Ethernet
  • IEEE 802.3/802.3u for 10BASE-T/100BASE-T(X)
  • IEEE 802.3ab for 1000BASE-T
  • IEEE 802.3z for 1000BASE-X
  • IEEE 802.3x for Flow Control
  • IEEE 802.1d-2004 for Spanning Tree Protocol
  • IEEE 802.1w for Rapid Spanning Tree Protocol
  • IEEE 802.1s for Multiple Spanning Tree Protocol
  • IEEE 802.1q/p for VLAN Tagging and Class of Service
  • IEEE 8021x for Authentication
  • IEEE 802.3ad for Port Trunk with LACP
  • IEEE 802.3az for Energy Efficient Ethernet

Protocols

IPv4, IPv6, IGMPv1/v2/v3, IGMP Snooping, GARP, GMRP, GVRP, SNMPv1/v2c/

v3, SNMP Inform, ICMP, Telnet, SSH, DHCP Server/Relay/Client, DHCP Option

66/67/82, BootP, RARP, TFTP, SMTP, SMTP (Gmail), RMON, HTTP, HTTPS,

Syslog, MRP (Manager/ Client), LLDP,802.1x,EAP,RADIUS,TACACS+,Mirror port, QoS, ACL

Layar 3 Protocols

  • Routing: IPv4 Unicast static routing, RIP v1/v2, OSPFv2,
  • Multicast: IGMPv1/v2/v3, DVMRP, PIM-DM, PIM-SM, PIM-SSM
  • Routing Redundancy: VRRP (Virtual Router Redundancy Protocol)

Redundancy

ITU-T G.8032 ERPS Ring, STP, RSTP, MSTP, Compatible Ring/Chain, U-Ring

Input Voltage

  • 9-57 VDC for Non-PoE models
  • 45-57 VDC for 802.3af mode
  • 51-57 VDC for 802.3at mode

Input Current (system)

  • Max. 1.4 A @ 9 VDC (without PoE)
  • Max. 3.1A @ 45VDC (Support up to 8 ports at 15.4 W per PoE port)
  • Max. 5.1A @ 51VDC (Support up to 8 ports at 30 W per PoE port)

Power Connector

5-Pin 5.08mm Lockable Terminal Block

Interfaces

  • RJ45 Ports:  Up to 8 10/100/1000BASE-T(X) auto negotiation speed
  • Fiber Optics Ports:  Up to 4 1000BASE-X SFP slot
  • LED Indicators: PWR1, PWR2, Alarm, Run, Ring, Ring Master, RJ-45 Link/Speed, SFP Link, PoE
  • Console:  RS232 (RJ45 connector)
  • Relay Output: 2 relay outputs with current carrying capacity of 1A @ 24 VDC
  • DIP Switches:  Ring Control and Profinet Setting
  • Button: Reset Button

Enclosure

IP30 aluminum housing

Dimensions

54 x 113 x 145 mm  (2.1 x 4.5 x 5.7 in)

Weight

800g (1.8 lb)

Mounting

DIN-Rail

Temperature

  • Operating:  -20°C~70°C (-4°F~158°F)
  • Storage: 40°C~85°C (-40°F~185°F)
  • Ambient Relative Humidity:  5% to 95% (Non-condensing test @55°C)

Reverse Polarity Protection

Yes
