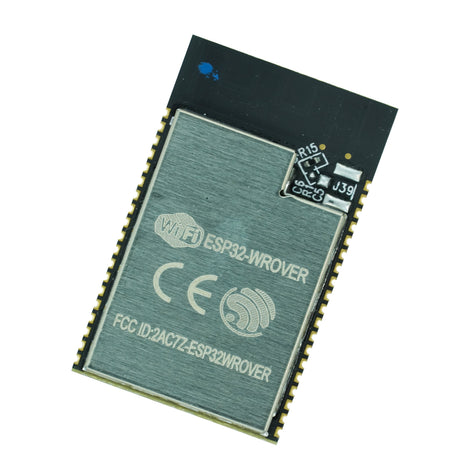

ESP32-WROVER - Combo Wi-Fi/BT/BLE Module with PCB Antenna
ESP32-WROVER - Combo Wi-Fi/BT/BLE Module with PCB Antenna
Product Images
ESP32-WROVER - Combo Wi-Fi/BT/BLE Module with PCB Antenna: 4MB FLASH
$4.30
SKU: GC-ESP32-WROVER-N4R8
MPN: ESP32-WROVER-N4R8
Manufacturer: Espressif Systems
FLASH MEMORY
-
$4.30
-
$3.09
We Have You Covered
Product Information
Product Description
The ESP-WROVER-32-INT is a powerful combination Wi-Fi, Bluetooth (BT), and Bluetooth Low Energy (BLE) module designed around the ESP32-D0WDQ6 chip. It features up to 8 MB Pseudo Static RAM (PSRAM) that makes it particularly well suited for RAM intensive applications like:
- Internet of Things (IoT) solutions
- Wearable electronics
- Home automation
- Voice encoding
- Music streaming
- MP3 decoding
- Sensor networks
Having a combination of Bluetooth, BLE, and Wi-Fi on board makes the module suitable for a variety of wireless networks, allowing for both Wi-Fi based internet connections and local BLE connections to a smart phone or tablet.
The WROVER-32 utilizes the freeRTOS operating system with LwIP and a built-in TLS 1.2 with hardware acceleration. It also offers secure, encrypted over-the-air (OTA) updates so that the module firmware can be updated remotely without manual or physical intervention. The system is completely open-source with a large collection of example code and information on GitHub.
The module has two CPU cores that can be individually controlled and a clock frequency that is adjustable from 80 MHz to 240 MHz. The ESP32 also has a sleep mode processor that allows for sleep current of less than 5 µA, making it suitable for battery powered applications.
The module also offers an easy process to gather sensor data or communicate with another microcontroller using a variety of peripherals, such as:
- I²S
- I²C
- High-speed SPI
- UART
- Hall sensors
- SD card interface
- Ethernet
- Capacitive touch sensors
Order Summary
SKU |
Flash Memory |
Manufacturer Part # (MPN) |
---|---|---|
GC-ESP32-WROVER-N4R8 | 4 MB | ESP32-WROVER-N4R8 |
GC-ESP32-WROVER-N8R8 | 8 MB | ESP32-WROVER-N8R8 |
GC-ESP-WROVER-32-16M-INT Limited Quantities Available |
16 MB | ESP32-WROVER (16MB) |
Features
- Combo Wi-Fi, Bluetooth (BT), and Bluetooth Low Energy (BLE) module
- Integrates with the ESP32-D0WDQ6 chip
- Internal PCB antenna
- 4 MB, 8 MB, or 16 MB SPI flash memory
- Two independently controlled CPU cores with adjustable clock frequency from 80MHz to 240MHz
- 4 MB or 8 MB external PSRAM
- Sleep current is less than 5 μA, making it suitable for battery-powered and wearable-electronics applications
- FCC, CE (RED), TELEC, SRRC certified
- Bluetooth Low Energy (BLE) connects to smart phones, broadcasting low-energy beacons for easy detection
- freeRTOS with LwIP operating system
- Secure (encrypted) over the air (OTA) upgrades
Documents and Drivers
Documentation
ESP-WROVER-32 Datasheet
ESP32-D0WDQ6 Datasheet
ESP-WROVER-32-INT CE Certification
ESP-WROVER-32-INT SRRC Certification
ESP-WROVER-32 FCC (BT) Certification
ESP-WROVER-32 FCC (Wi-Fi + BT4.0) Certification
Downloads
ESP-WROVER-32 AT Bin
Specifications
Antennas
Internal On-Board PCB antenna
Audio
Bluetooth Audio: CVSD and SBC
Certifications
- RF: FCC/ CE-RED/ SRRC/ TELEC
- Wi-Fi: Wi-Fi Alliance
- Bluetooth: BQB
- Green: RoHS/ REACH
Dimensions
18 mm x 31.4 mm x 3.3 mm
Firmware
- Upgrade: UART Download / OTA (via network)
- Download and write firmware via host
Frequency Band
Wi-Fi frequency: 2.4 GHz ~ 2.5 GHz
Interface(s)
SD card, UART, SPI, SDIO, I²S, LED PWM, Motor PWM, I²C, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC
Memory
- 4 MB, 8 MB, or 16 MB Flash
- 4 MB or 8 MB PSRAM
MPN
ESP32-WROVER
Pins
38
Power
500 mA
Protocols
- Wi-Fi: 802.11 b/g/n (802.11n up to 150 Mbps)
- Bluetooth: Bluetooth v4.2 BR/EDR and BLE specification
Radio
Bluetooth Radio:
- NZIF receiver with –97 dBm sensitivity
- Class-1, class-2 and class-3 transmitter
- AFH
Security/Protection
- Security: WPA/WPA2/WPA2-Enterprise/WPS
- Encryption: AES/RSA/ECC/SHA
Sensors
On Chip Hall Sensor
Software
- Supports Cloud server development
- SDK for custom firmware development
Temperature Range
-40ºC to 85ºC (-40ºF to 185ºF)
