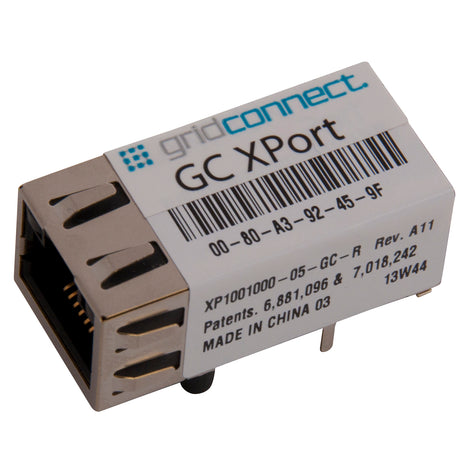

GC-Enhance XPort Angle Connector Image
GC Enhanced XPort Side Image
GC Enhanced XPort Connector Image
GC Enhanced XPort Top Image
GC Enhanced XPort Angle Image
GC Enhanced XPort - Serial to Ethernet Embedded Device Server (EDS)
Product Images
GC Enhanced XPort - Serial to Ethernet Embedded Device Server (EDS)
$53.95
SKU: GC-XPORT-ENH
MPN: GC-XPORT-ENH
Manufacturer: Grid Connect Inc.
Stock Status: In stock
We Have You Covered
Product Information
Product Description
Building on the strengths of the XPort - Serial to Ethernet RJ45 EDS, the Grid Connect Enhanced firmware version adds configuration flexibility and improved email triggers to a networked serial device design. The GC Enhanced firmware XPort supports multiple TCP connections, DNS addressing, and allows for mixed TCP and UDP access to the serial port. Add expanded remote notification capabilities with the updated email serial trigger capabilities included in the GC Enhanced XPort.
The GC Enhanced XPort - Serial to Ethernet RJ45 EDS is a compact and cost effective hardware/software solution for adding networking to any device with a serial interface. Powered by a DSTini-EX enhanced 16-bit x86 class processor, the XPort is an integrated solution offering a complete device server application with a full IP stack and web server. All of this functionality is contained within the body of a single 10Base-T/100Base-TX Ethernet RJ45 connector.
The GC Enhanced XPort is designed to support one serial port with data rates up to 921 Kbps. Additionally, an extended temperature range of -40° to + 85°C makes the GC Enhanced XPort ideal for a wide range of environmental applications. With virtually no need to write additional software, the XPort can reduce development costs and shorten time to market while adding robust networking capabilities to a serial device.
The built-in web server allows for custom designed web pages that interface with the device for remote configuration and monitoring. Additionally, three Programmable I/O pins can be used as general purpose inputs or outputs with expanded email triggers.
Support:
The knowledgeable and experienced engineers at Grid Connect provide complete technical support for the Lantronix XPort family of embedded devices. We specialize in customizing XPort and offer phone support and on-line chat support during regular business hours.
Features
- Multiple TCP Connections (max. 4, connection 3 and 4 passive TCP only)
- Mixed TCP and UDP access to the serial port
- DNS Addressing for Remote Host
- Email authentication with password support
- Expanded Idle Gap Time Options (3 ms)
- UDP Datagram Mode 2 and 12 Support
Existing XPort features:
- Compact and Economical RJ45 Networked Embedded Device Server
- Complete Device Server Application with full IP Stack and Web Server
- Remote Notification with Email Serial Trigger Capabilities
- Supports (1) Serial Channel with Data Rates up to 921 Kbps
- DSTni-EX Enhanced 16-bit x86 class processor with 512KB Flash and 256KB SRAM
- 3 Programmable I/O (PIO) pins
- Extended Temperature Range: -40° to + 85° C
- 2-Year Limited Warranty
Documents and Drivers
Documentation
GC Enhanced Firmware User Guide
XPort Product Brief
XPort Datasheet
XPort User Guide
XPort Integration Guide
Web Enabling Your Device Server
Downloads
Current DeviceInstaller
Current Com Port Redirector
Specifications
Certifications
RoHS, EMC/EMI
Characters 2
7 or 8 data bits
CPU
DSTni-EX Enhanced 16-bit x86 Class Processor
Data Rate
up to 921 Kbps
Dimensions
33.9 x 16.25 x 13.5 mm
Flow Control
XON/XOFF, CTS/RTS
Interface(s)
- Inputs: 3 PIO
- Outputs: 3 PIO
Management
SNMP, Telnet, Serial, Web, Utility
Memory
512 KB Flash, 256 KB SRAM, 384 KB for Web
MPN
GC-XPORT-ENH
Parity
odd, even, none
Ports
(1) Serial Port
Product Weight
9.6 g
Programmable IO
3 Programmable I/O Pins
Protocols
ARP, UDP/IP, TCP/IP, ICMP, SNMP, DHCP, Auto IP, DNS, HTTP, TFTP
Security/Protection
Email Authentication
Stop Bits
1-2
Software
- GC Enhanced Firmware Version
- MS Windows based DeviceInstaller™
- MS Windows based Com Port Redirector
Temperature Range
- Operational: -40ºC to 85ºC (-40º to 185ºF)
- Storage: -40ºC to 85ºC (-40º to 185ºF)
Voltage
3.3 Vdc input voltage
Warranty
2-year limited
