XPort EtherNet/IP To MODBUS Serial

$82.00

2.5 stars 2.5 (2) See customer reviews

SKU: GC-XPORT-EIP-MB

MPN: GC-XPORT-EIP-MB

Manufacturer: Grid Connect Inc.

Stock Status: In stock

Delivery: Ships within 1-2 business days
Free shipping to the US on orders over $100
Not recommended for new designs

We Have You Covered

Price Match delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

This product is NOT recommended for new designs.


Note: EtherNet/IP (Ethernet Industrial Protocol) is a specific application layer protocol used in advanced industrial automation environments and is not short-hand for Ethernet Internet Protocol. Grid Connect engineers are available to answer your EtherNet/IP questions.

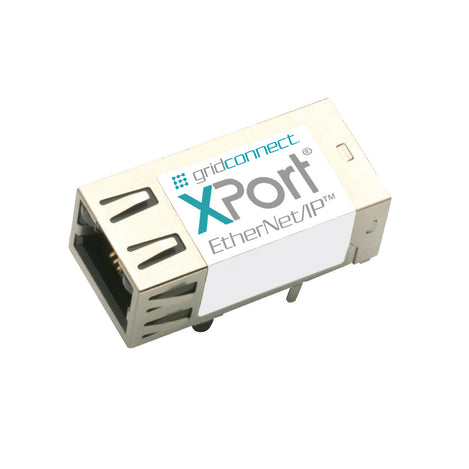

Bridge the protocols of Modbus RTU/ASCII and EtherNet/IP with a Grid Connect integrated embedded device server. The XPort-EIP-MB is an intelligent RJ45 connector with Modbus master and EtherNet/IP slave software built-in. Integrate this compact XPort-EIP-MB with custom Grid Connect firmware to your printed circuit board design to convert a Modbus RTU/ASCII serial TTL port to an EtherNet/IP interface.

The XPort-EIP-MB is configured using standard EtherNet/IP explicit messaging from any EtherNet/IP configuration tool (not included). During configuration, Modbus register data is mapped to EtherNet/IP assembly data. Meaning after the XPort-EIP-MB is integrated, the end-product appears to be an EtherNet/IP slave with all Modbus Serial communications hidden from the end-user.

The XPort-EIP-MB supports Modbus RTU/ASCII TTL serial connections with data rates up to 231 kbps. A standard RJ45 network connection supports auto-sensing 10BASE-T and 100BASE-TX Ethernet. Ideal for industrial applications, the XPort-EIP-MB is powered by +3.3 Volts and has an extended -40ºC to +85ºC temperature range.

Grid Connect also offers a finished versions of the XPort-EIP-MB. The NET485-EIP-MB is a panel/DIN rail mountable Modbus Serial to EtherNet/IP adapter.

Support:
We provide complete technical support for this product with knowledgeable engineers that designed and know how to use the product. We offer phone support and on-line chat during regular business hours.

Features

  • Compact Embedded Modbus Serial to EtherNet/IP Interface
  • Modbus RTU or ASCII Serial Client
  • EtherNet/IP Server (See Data Sheet for Details)
  • Connects to TTL Serial Port on Printed Circuit Board
  • +3.3 Volt Operation
  • 10BASE-T and 100BASE-TX Ethernet (auto-sensing)
  • Serial Data Rates up to 231 kbps
  • Configuration via BOOTP and EtherNet/IP Explicit Messaging
  • Industrial Temperature Range -40ºC to +85ºC
  • Small RJ45 Size Device (33.9 x 16.25 x 13.5 mm)
  • OEM and Grid Connect Custom Versions Available
  • RoHS Compliant

Documents and Drivers

Documentation

XPort EIP MB User Guide

XPort EIP Modbus Getting Started Guide

XPort Device Server Integration Guide

Specifications

Certifications

RoHS

Characters T

7 or 8 data bits

Connector(s)

RJ45

CPU

Lantronix DSTni-EX Class Processor

Data Rate

  • Serial: Up to 231 kbps
  • Ethernet: 10/100M

Dimensions

33.9 x 16.25 x 13.5 mm

Firmware

Upgradeable via TFTP

Interface(s)

  • Network: 10/100M Ethernet/IP
  • Inputs/Outputs: PIO Pins Not Available

MPN

GC-XPORT-EIP-MB

Parity

odd, even, none

Product Weight

9.6g

Security/Protection

Configuration Locking Features

Serial Types

376

Stop Bits

Always 1

Temperature Range

-40ºC to +85ºC (-40ºF to +185ºF)

Voltage

3.3 Volts
