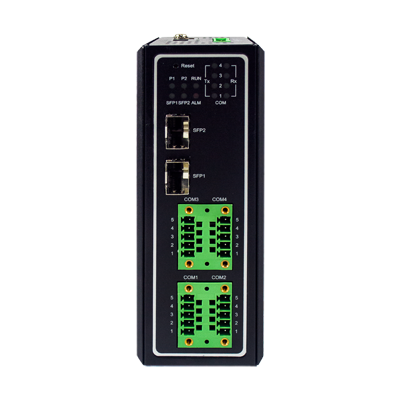

MB5904D-G - 4-Port Industrial Modbus Serial Gigabit Fiber
MB5904D-G - 4-Port Industrial Modbus Serial Gigabit Fiber
Product Images
MB5904D-G - 4-Port Industrial Modbus Serial Gigabit Fiber: DB9
$669.00
SKU: GC-ATOP-MB5904D-4P-DB
MPN: 1P1MB5904D0004G
Manufacturer: Atop Technologies Inc.
Serial Connector & Isolation Options
-
$669.00
-
$669.00
-
$789.00
We Have You Covered
Product Information
Product Description
Diverse Hardware Infrastructure
Modbus Gateway supports the four most commonly used communication standards, RS-232/485/422, and Ethernet. The ease-of use configuration utility provides Modbus Gateway with a quick way to select the hardware interface and easily switch to the existing communication infrastructure. Industrial EMC protection and wide temperature operation capability make MB5904D ready for every mission.
Advanced embedded security and advanced features
The MB5904D Modbus Gateway supports OpenVPN and IPsec VPN encryption, allowing you to safely use the device over the internet without worrying about malicious attacks, data sniffing or unintentional remote control of your Modbus slaves. On your LAN, RSTP protocol will provide an additional layer of security in case of link losses.
Switching between Modbus Protocols
Supporting the standard Modbus protocol, this gateway is capable of converting any Modbus protocols between Modbus TCP, Modbus RTU, and Modbus ASCII for all supported hardware interfaces. All of this, in bidirectional mode: select Ethernet and Serial ends to be either master or slave Modbus ID Routing.
The MB5904D supports various types of hardware communication interfaces, Modbus protocol conversion, and Modbus ID routing. Therefore the Modbus Gateway can integrate your existing and complex Modbus hardware configuration into a simple network that can be easily managed.
Order Summary
SKU | Serial Connector | Isolation | Manufacturer Part # (MPN) |
GC-ATOP-MB5904D-4P-DB | DB9 | No | 1P1MB5904D0004G |
GC_ATOP-MB5904D-4P-TB | TB5 | No | 1P1MB5904D0005G |
GC-ATOP-MB5904D-4P-Sis | TB5 | Isolation | 1P1MB5904D0006G |
Features
- Industrial EMC protection, wide temperature operation,-40°C ~ 85°C (-40°F ~ 185°F)
- 2 Fast-Ethernet ports or 100/1000 SFP slots
- 4 Software-selectable RS-232/RS-485/RS-422 serial ports, up to 921kbps
- Bi-Directional Modbus TCP/RTU/ASCII conversion from Serial to Ethernet and vice-versa, VirtualCOM support, advanced Modbus Options available
- Isolated Redundant 12~48 VDC Power Inputs
- Embedded security with PPTP, IPsec or OpenVPN (client/server)
- Configuration via Web Browser/ Serial Console/ Telnet Console/ Utility
- Rugged metal case with DIN-Rail mount
Documents and Drivers
Documentation
MB5904D Datasheet
MB5904D User Manual
MB5904D Hardware Installation Guide
MB5904D UKCA-Declaration of Conformity
Specifications
Network Speed
- IEEE 802.3 10BaseT
- IEEE 802.3u 100BaseT(X)
Network LAN Mode
Dual Subnets or Network Redundancy
Network Connector Ports
2x 10/100BASE-T(X) RJ-45
Serial Connector
1x2 5 pin 3.81mm Terminal Block, or D-sub9 connector
Serial Ports
4
Serial Mode
RS-232/422/485, software selectable
Serial Baud Rate
1,200~921,600 bps
Serial Parity
None, Odd, Even
Serial Data Bits
7,8
Serial Stop Bits
1,2
Serial Isolation
2 KV
USB Ports
1
USB Speed
USB 2.0
USB Connector
USB A Type
Protocols
IPv4, ICMP, TCP, UDP, DHCP Client, SNMPv1,v2c,v3, HTTP, HTTPS, Telnet, RFC2217, RSTP, Security via PPTP, OpenVPN Client/Server or IPsec (peer-to-peer or peer-to-side) with up to 37.9Mbps VPN throughput,SMTP/TLS
Configuration
Atop Management Utility, Web UI, Telnet
VirtualCOM
Windows/Linux redirection software
Modbus Gateway Supported Modes
Ethernet: Modbus TCP Server/Client(or VCOM)
Serial: Modbus RTU/ASCII (master/slave)
Input Voltage
Dual 12 - 48VDC
Input Current
0.65 A @ 12 VDC
Power Consumption
Approximately 8 W (Max)
Power Connector
7-Pin 5.08mm Lockable Terminal Block
Power Redundancy
Yes
Reverse Polarity Protection
Yes
Relay Output
1A @ 30 VDC (normal open)
Enclosure
IP30 SPCC housing
Dimensions
54 x 145 x 113 mm (2.1 x 5.1 x 4.4 in)
Weight
1000g (2.2 lbs)
Installation
DIN Rail
Reset Button
Yes
Temperature
- Operating: -40°C ~ 85°C (-40°F ~ 185°F)
- Storage: -40°C ~ 85°C (-40°F ~ 185°F)
- Ambient Relative Humidity: 5%~95%, 55°C (Non-condensing)
