NetDirect - Serial to Ethernet Cable: RS232 - 110V - U.S./North America - DCE (female)

$97.95

5.0 stars 5.0 (1) See customer reviews

SKU: GC-ND-232-DCE-110

MPN: GC-ND-232-DCE-110

Manufacturer: Grid Connect Inc.

Stock Status: In stock

Delivery: Ships within 1-2 business days
Free shipping to the US on orders over $100

Serial Type

Power Supply

Connector

Product Information

Product Description

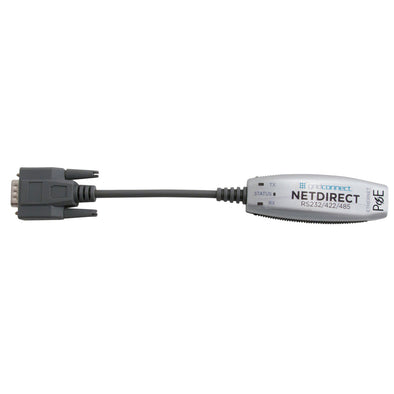

NetDirect is a simple to use Serial to Ethernet Cable allowing for plug and play conversion of RS232, RS422, or RS485 signals over an ethernet network.

The NetDirect Device Service is a small compact cable that allows you to simply convert your RS232 or RS422 or RS485 device to an Ethernet port. This conversion allows you to put you devices on a network and have access to them over a wide range via the Internet or local Ethernet network. The NetDirect can be purchased in several different configurations. First the serial port side can be either RS232 only or RS232/422/485. Second the NetDirect can be powered using a wall supply, through the DB9 connector on Pin 9, or the USB port.

As a Serial Device Server, the NetDirect converts your standard RS232, RS422, or RS485 serial port to an Ethernet Port. The baud rates supported by the NetDirect are from 300 to 921.6K baud and the various data formats, 7 or 8 data bits, 1 or 2 stop bits, parity of none, even, odd, mark, hardware flow control using RTS/CTS signals or software control using XON/XOFF and modem controls signals DTR/DSR/DCD.

The NetDirect has supports either DTE (male pins) or DCE (female no pins) on the serial side of the cable. The power for the NetDirect can be supplied from the cable power plug, from pin 9 of the DB9 connector or through the USB port. The NetDirect has an Ethernet isolation value of 1500 volts and an ESD protection on the serial port of 15KV.

The NetDirect is industrially tough and is designed for operating temperature of -40C to +85C, it has also be approved for worldwide use by UL, CE, RoHS, IEC, CSA , CAN and FCC.

The NetDirect uses a simple install program and a virtual COM port redirector to map your PC serial port to Ethernet IP addresses.

NetDirect models include:

  • RS232 only version DCE or DTE with or without 110VAC or 220VAC wall power supply
  • RS232/422/485 version DCE or DTE with or without 110VAC or 220VAC wall power supply



Order Summary



SKU

Serial Type

Power Supply

Connector

Manufacturer Part # (MPN)

GC-ND-232-DCE-110 RS232 110V - U.S./North America DCE (female) GC-ND-232-DCE-110
GC-ND-232-DCE-220 RS232 220V - Europe DCE (female) GC-ND-232-DCE-220
GC-ND-232-DCE-NOPS RS232 No Power Supply DCE (female) GC-ND-232-DCE-NOPS
GC-ND-232-DTE-110 RS232 110V - U.S./North America DTE (male) GC-ND-232-DTE-110
GC-ND-232-DTE-220 RS232 220V - Europe DTE (male) GC-ND-232-DTE-220
GC-ND-232-DTE-NOPS RS232 No Power Supply DTE (male) GC-ND-232-DTE-NOPS
GC-ND-485-DCE-110 RS232/RS422/RS485 110V - U.S./North America DCE (female) GC-ND-485-DCE-110
GC-ND-485-DCE-220 RS232/RS422/RS485 220V - Europe DCE (female) GC-ND-485-DCE-220
GC-ND-485-DCE-NOPS RS232/RS422/RS485 No Power Supply DCE (female) GC-ND-485-DCE-NOPS
GC-ND-485-DTE-110 RS232/RS422/RS485 110V - U.S./North America DTE (male) GC-ND-485-DTE-110
GC-ND-485-DTE-220 RS232/RS422/RS485 220V - Europe DTE (male) GC-ND-485-DTE-220
GC-ND-485-DTE-NOPS RS232/RS422/RS485 No Power Supply DTE (male) GC-ND-485-DTE-NOPS
GC-ND-232-DCE-U RS232 Universal DCE (female) GC-ND-232-DCE-U
GC-ND-232-DTE-U RS232 Universal DTE (male) GC-ND-232-DTE-U
GC-ND-485-DCE-U RS232/RS422/RS485 Universal DCE (female) GC-ND-485-DCE-U
GC-ND-485-DTE-U RS232/RS422/RS485 Universal DTE (male) GC-ND-485-DTE-U

Features

  • RS232 Only or RS232 / RS422 / RS485 Version
  • DB9 DCE (female) and DB9 DTE (male) Versions
  • Included AC Power adapter, 500mA @ 9VDC
  • Serial baud rates up to 921.6K
  • 128.192/256 bit AES Encryption
  • Plastic housing
  • 10/100M Ethernet Connection
  • OEM versions available for small minimum quantity
  • Includes CD with Manuals, PC Setup and Virtual COM Port Redirector Software
  • Supports Windows 7/Vista/XP/Server (32/64 bit)
  • 5 Year Limited Warranty

Documents and Drivers

Documentation

NetDirect Datasheet

RS485 Converter Comparison Chart

NetDirect User Manual

Downloads

Latest DeviceInstaller

Latest Com Port Redirector

Specifications

Certifications

  • UL
  • CSA/CAN
  • CE
  • FCC Part 15 Subpart B, Class B
  • IEC
  • VCCI
  • C-Tick

Characters T

7 or 8 data bits

Connector(s)

  • Serial Connector: DB9 - DCE (female) or DB9 - DTE (male) and custom cables/connectors (call) also available.
  • Network Connector: RJ45

Data Rate

up to 921,600 bps

Dimensions

  • Plastic Body: 86.6x30x29mm
  • With Cable: 242x33x29mm

Flow Control

XON/XOFF, RTS/CTS

Humidity

0 to 90% non-condensing

Indicators LED

  • TX
  • RX
  • Status

Interface(s)

Network: Ethernet 10Base-T or 100Base-TX (Auto-Sensing)

Isolation

  • Ethernet: 1500VAC
  • Serial: 15KV ESD protection

Management

SNMP, Telnet, serial, internal web server, and Microsoft Windows-based utility configuration

Modem Control

DTR, DSR/DCD

Power

  • DB9 Pin 9 input voltage 5-15VDC
  • Power supply voltage 9VDC
  • USB input voltage 5VDC

Power Consumption

1.3 watt

Protocols

TCP/IP, UDP/IP, ARP, IMCP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP

Security/Protection

128/192/256 bit AES Encryption

Serial Interfaces

374,373,369

Serial Types

372,370,371

Software

Windows-based Installer and Virtual Comm Port Redirector, Support for Windows 7/Vista/XP/Server (32/64 bit)

Stop Bits

1 or 2

Temperature Range

-40 to +85°C (-40 to + 185°F)
