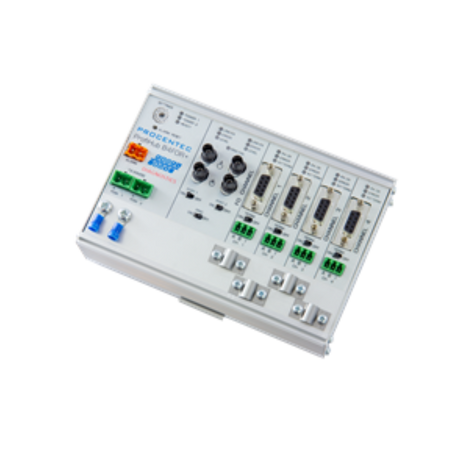

ProfiHub B4FOR+ - Fiber Optic Ring with RS485 Redunancy: Multi-Mode

$2,395.00

Leave a review

SKU: GC-PB-PROFIHUB-B4-FOR-MM

MPN: 17430

Manufacturer: Anybus Diagnostics

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the US

Mode

Product Information

Product Description

Authorized North America Distributor StampThe ProfiHub B4FOR+ is a PROFIBUS DP RS485 copper cable to Fiber Optic Link module that can be used to create Multi-Mode or Single-Mode Fiber Optic Rings for PROFIBUS networks. Single-Mode allows for 50km fiber optic cable lengths, while Multi-Mode allows for 5km cable lengths. Status of the rings can be remotely monitored via ComBricks.

At the same time, this module supports RS485 cable redundancy for 2 cables and provides 4 copper segments. These PROFIBUS segments can be used with other ProfiHubs or ComBricks to create redundant copper cable runs on 2 cables between the hubs. If 2 copper cables are used for redundancy, then the remaining 2 segments can be used for PROFIBUS DP field devices.

Order Summary

SKU

Mode

Manufacturer Part # (MPN)

GC-PB-PROFIHUB-B4-FOR-MM Multi-Mode 17430
GC-PB-PROFIHUB-B4-FOR-SM Single-Mode 17440

Features

  • Create Multi-Mode or Single Mode Fiber Optic Rings for PROFIBUS networks
  • Supports RS485 Cable redundancy for 2 cables
  • Provides 4 copper segements
  • High integrity telegram checking

Documents and Drivers

Documentation

ProfiHub B4FOR+ Datasheet

ProfiHub B4FOR+ User Manual

Specifications

Cascading Depth

No limit

Certifications

CE, FCC

Channels

  • 2 Fiber Optic
  • 4 galvanic isolated

Connector(s)

Screw terminals and DB9

Dimensions

167 x 111 x 38 mm

Enclosure

Rated IP 20

MPN

17430, 17440

Power Supply

Redundant 12 to 24 VDC

Temperature Range

-25°C to +70°C (-13°F to +158°F)

Transmission Speed

9.6 kbps to 12 Mbps (automatic detection)
