This product is discontinued and no longer available.

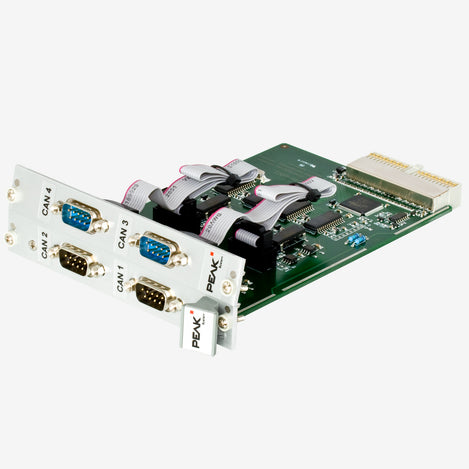

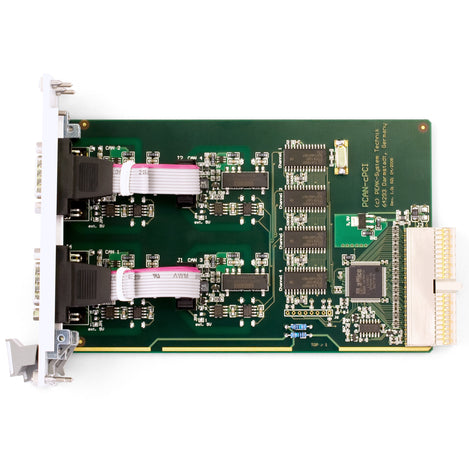

CAN Compact PCI Adapter with 2 or 4 Channels (PCAN-cPCI): 2 Channels / 500V Isolated

Leave a review

SKU: GC-CAN-CPCI-2-ISO

MPN: IPEH-003021

Manufacturer: Peak System Technik

Select Channels / Isolation

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

The PCAN-cPCI dual or quad channel card is a 3U card that can monitor a CAN network, write a CAN programs and communicate with industrial, medical, automotive or other CAN based devices. The PCAN-cPCI USB adapter connects a CANbus to the 3U compactPCI slot.

Order Summary



SKU

Select Channels/Isolation

Manufacturer Part # (MPN)
GC-CAN-CPCI-2-ISO 2 Channels / 500V Isolated IPEH-003021
GC-CAN-CPCI-4-ISO 4 Channels / 500V Isolated IPEH-003022

Features

  • Baud rates up to 1MBaud
  • 9-pin Male SUB-D
  • Supports all interrupt and port addresses configurations
  • 500V isolation
  • Metal face plates
  • Windows and Linux drivers

Documents and Drivers

Documentation

PCAN-cPCI CAN Interface for CompactPCI User Manual

Downloads

PCAN-cPCI 32/64 bit drivers, CAN & LIN MonitorS, API Interfaces

PCAN-cPCI Linux Drivers

PEAK-System PCAN Download Support

Specifications

Baud Rate

CAN: max. 1 Mbit/s

Certifications

CE, RoHS

Connector(s)

10-pin Upright Connector

Controller(s)

CAN: NXP / Philips SJA1000T

Dimensions

160 x 100 mm

EMC Directive

  • EN 55024:2003-10
  • EN 55022:2007-04
  • EC directive 89/336/EEC

Interface(s)

  • PC: Compact PCI 3U J1 (110 pin, 32 bits)
  • CAN: ISO 11898-2, complies with CiA-recommendation DS 102

IO and IRQ

Automatically assigned via "plug n play"

Isolation

500 VDC (optional)

MPN

IPEH-003021, IPEH-003022

Pinout

C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)

Power Consumption

  • 2 channel isolated max. 490 mA / 5V
  • 4 channel isolated max. 980 mA / 5V

Product Weight

120 g (2ch), 188 g (4ch)

Software

  • Driver: Windows® 7, Vista, XP; Linux
  • Tools: PCAN-View for Windows®

Specifications

CAN: 2.0A (Standard format) and 2.0B (extended format)

Storage Specifications

Temperature: -40°C to +125°C (-40°F to +257°F)

Temperature Range

  • Operating: -40°C to +85°C (-40°F to +185°F)
  • Humidity: 15% to 90% (non-condensing)

Transceiver

CAN: NXP / Philips PCA82C251
