$335.00
This product is discontinued and no longer available.

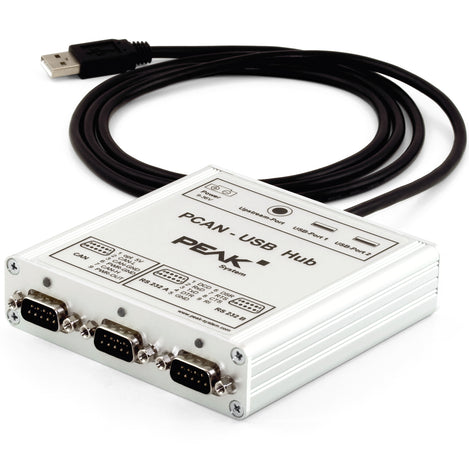

CAN USB Adapter with CAN, 2 Serial Ports and USB Port (PCAN-USB Hub)
PCAN-USB Hub

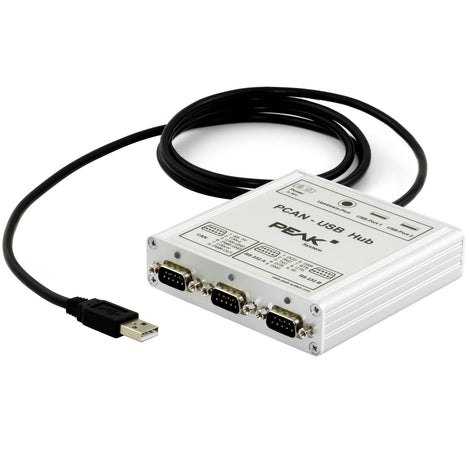

PCAN-USB Hub 2
CAN USB Adapter with CAN, 2 Serial Ports and USB Port (PCAN-USB Hub)
Product Images
CAN USB Adapter with CAN, 2 Serial Ports and USB Port (PCAN-USB Hub)
SKU: GC-CAN-USB-HUB
MPN: IPEH-002004
Manufacturer: Peak System Technik
We Have You Covered
Product Information
Product Description
The PCAN-USB-Hub (IPEH-002004) is an all-in-one CAN-USB Adapter, providing a high performance CAN adapter, two full functional RS232 Serial Ports, and two more expansion USB. Since serial COM ports are no longer available on PCs, but they are needed to communicate with many devices. The CAN-USB-HUB combines both a CAN interface and two RS232 serial ports to program and monitor industrial devices. Of course, the serial ports can be used for any standard RS232 device as well.
Features
- One (1) high performance CAN channel
- Two (2) RS232 ports
- Two (2) USB interfaces
- Robust aluminum casing makes the PCAN-USB Hub suitable for both stationary and mobile applications
- Free PCAN-View CAN software and application API (dll) provided
- Powered by USB Port; Mating connector for external Power supply also provided (for "active USB hub")
- Can also be configured to receive external power on Pin 9 of CAN Bus connector
Documents and Drivers
Documentation
PCAN-USB Hub User Manual
Downloads
PCAN-USB Hub Installation Package
Contains device drivers and tools for Windows® 10, 8.1, 7 (32/64-bit)
PCAN-USB-HUB Linux Drivers
CAN Download Support
View the available Peak System downloads:
Specifications
Baud Rate
CAN / RS232: max. 1 MBit/s / 300 – 120 kbit/s
Certifications
CE, RoHS
Controller(s)
CAN: NXP / Philips SJA1000T
Dimensions
105 x 26 x 110 mm
EMC Directive
- EN 55024:2003-10
- EN 55022:2007-04
- EC directive 2004/108/EG
Interface(s)
- PC: USB plug type A, USB 2.0, compatible to USB 21.1 2x USB expansion slots type A
- CAN / RS232: ISO 11898-2, complies with CiA-recommendation DS 102 EIA-232E
IO and IRQ
automatically assigned via "plug n play"
MPN
IPEH-002004
Pinout
C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)
Power Consumption
1 channel max. 300 mA 5V
Product Weight
300 g
Software
- Driver: Windows® 7, Vista, XP; Linux
- Tools: PCAN-View for Windows®
Specifications
CAN: 2.0A (Standard format) and 2.0B (extended format)
Storage Specifications
Temperature: -40°C to +105°C (-40°F to +221°F)
Temperature Range
- Operating: -30°C to +85°C (-22°F to +185°F)
- Humidity: 5% to 95% (non-condensing)
Transceiver
NXP / Philips PCA82C251
