The PCAN router is a dual channel CAN module whose NXP LPC21 series programmable microcontroller provides the option of using the CAN messages on both channels on a flexible basis. This gives a whole range of options for configuration, manipulation, evaluation, filtering and routing of CAN messages.
The Yagarto software provided (contains the GNU Compiler Collection (GCC) for C and C++) can be used to produce your own firmware and then transfer it to the module via CAN. The PCAN-Router is shipped with demonstration firmware which performs one-to-one forwarding of the CAN messages between the two CAN channels at 500 kbit/s. The corresponding source code is included.

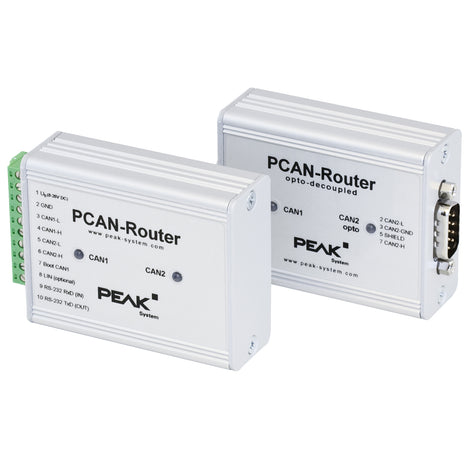

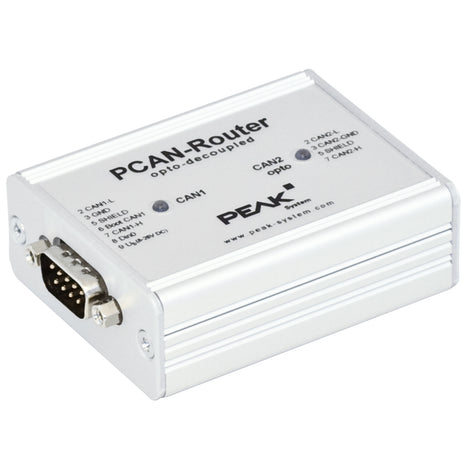

The module is installed in an sectional aluminum casing, and is shipped in versions with two D-Sub connectors or a screw-terminal strip.
NOTE: To configure or transfer firmware via CAN, a Peak CAN interface is required.
|Channels||Two high-speed CAN channels (ISO 11898-2) with transmission rates from 40 kbit/s to 1 Mbit/s (slower transmission rates available on request)|
|Cpu||NXP LPC21 series microcontroller (16/32 bit ARM CPU)|
|Enclosure||Aluminum casing with spring terminal connectors or D-Sub connectors|
|Firmware||New firmware can be loaded via serial or CAN interface|
|Memory||External 32 kbyte EEPROM|
|Mounting||Optional DIN Rail fixing option available|
|Mpn||IPEH-002210, IPEH-002210-P, IPEH-002211|
