CANedge1 - CAN BUS Data Logger: 32GB SD Card

$439.95

Leave a review

SKU: GC-CSS-CANEDGE1-32GB

MPN: #99 CANEDGE1-32GB

Manufacturer: CSS Electronics ApS

Stock Status: Out of stock (more on the way)

Delivery: Order now and we'll deliver when available
Qualifies for Free shipping to the US

SD Card

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

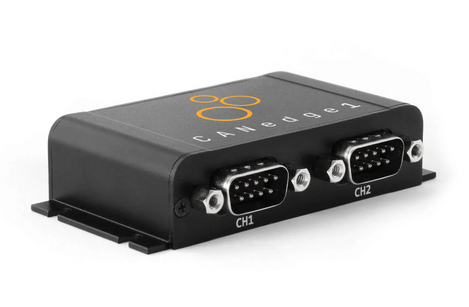

The CANedge1 is a CAN bus logger with 2 parallel CAN/LIN channels including CAN FD. After being configured, this CAN logger will start extracting raw data directly to an industrial 8 GB SD card upon connection to an active CAN bus.  This data is stored in the MDF4 standard so it can be converted to other popular formats with free open source software.

With records timestamped, the CANedge1 is optimal for long term monitoring in areas such as:

  • maintenance
  • vehicle development
  • diagnostics
  • research

Order Summary



SKU

SD Card

Manufacturer Part # (MPN)
GC-CSS-CANEDGE1-8GB 8GB SD Card #97 CANEDGE1-8GB
GC-CSS-CANEDGE1-32GB 32GB SD Card #99 CANEDGE1-32GB




Features

  • Extractable 8 GB industrial SD card
  • Dual high sped CAN/CAN FD/LIN channels
  • Data encryption and compression
  • Binary MDF4 log file format
  • Advanced message filtering & transmit functionality
  • Start/stop logging triggers based on CAN ID & databytes
  • Silent mode, bit rate auto-detection, cyclic logging
  • Fast boot time. Safely disconnect during use

Documents and Drivers

Documentation

CANedge1 Getting Started Introduction

CANedge1 Manual

Specifications

Certifications

  • CE, FCC, IC and RoHS certified (see the manual)
  • Tested for voltage transients (emissions/immunity), ISO 7637-2:2011, by TÜV SÜD (see the manual)

Connector(s)

2 x Standard D-sub 9 (DB9)

Dimensions

52.5 x 81.4 x 24.5 mm

Enclosure

Aluminum - IP 40

Encryption

Log files can be encrypted at rest on the SD card for security/GDPR/CCPA purposes

Firmware

Supports free firmware updates for adding features

Indicators LED

Logger status via 4 external LEDs: Power, CH1, CH2, Memory

Interface(s)

SD card: 8 GB extractable Class 10 industrial micro SD (SDHC)

MPN

CANedge1

Protocols

Log raw data from CAN based protocols (J1939, FMS, CANopen, NMEA 2000, OBD2, ...)

Software

  • Free open source editor tool for device configuration (offline/online version available)
  • Free open source asammdf software & API for editing, DBC converting & plotting MDF4 data
  • Free open source C++ MDF4 converters - drag & drop log files to convert into e.g. CSV, ASC, PCAP

Standards

  • CAN bus: ISO 11898: Compliant with CAN (up to 1 Mbit/s) and ISO & Bosch CAN FD (up to 5 Mbit/s)
  • LIN bus: Compliant with LIN 2.0 up to 20 Kbit/s ("enhanced" checksum format)

Temperature Range

-25̊ C to +70̊ C (-13° F to 158° F)
