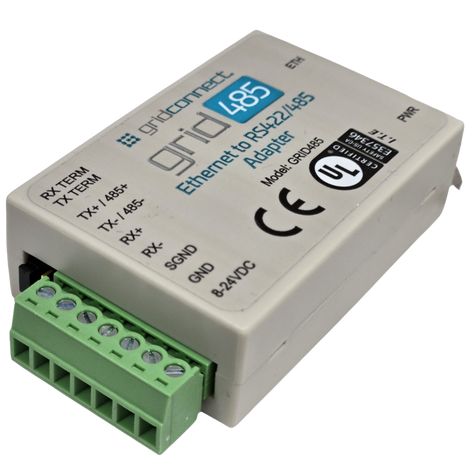

GRID485-MB - Modbus TCP to Modbus RTU/ASCII RS485 Device Server: No Mount

$169.95

Leave a review

SKU: GRID485-MBTCP

MPN: GRID485-MBTCP

Manufacturer: Grid Connect Inc.

Stock Status: Out of stock (more on the way)

Delivery: Order now and we'll deliver when available
Qualifies for Free shipping to the US
Contact us for information
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

Mounting Option

Product Information

Product Description

Assembled

GRID485-MB  is an all in one intelligent RJ45 connector with same compact form, versatility, low cost, and certifications as its popular predecessor NET485-MB. New features include optional Wi-Fi with 10/100 Ethernet, and Modbus TCP master and slave capability.  Using the new GRID45 module, there is now more memory and a high speed processor.

The GRID485 is designed for industrial use and can operate in -30 to +65 degree Celsius temperature range. It uses a wide power supply input, 8-24VDC. The terminal block connects the physical RS422 or RS485 serial port signals and power supply. Both DIN Rail and Surface mount brackets are available for mounting inside a cabinet.



Applications include:

  • Fire and security panels
  • Vending machines
  • Remote equipment management
  • Access control
  • Industrial control
  • Bridging
  • Power Management



Pinout Information

GRID485 has 7-pin removable Phoenix connector for wiring power and RS485 communication lines. Has pinout chart.



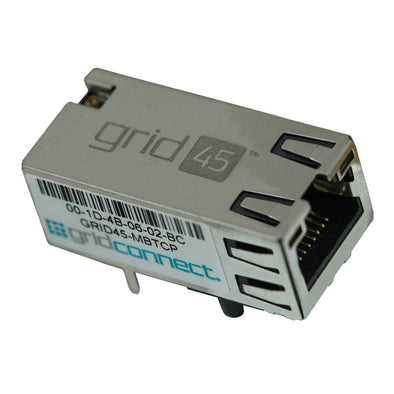

GRID45 Product Family:

Learn more about the GRID45 product family, the ultimate multi-protocol solution for industrial automation.



Order Summary


SKU Mount Type Manufacturer Part # (MPN)
GRID485-MBTCP No mount GRID485-MBTCP
GRID485-MBTCP-DIN DIN Rail & Strap GRID485-MBTCP-DIN

Features

  • Bluetooth simple serial, Ethernet, WiFi Bridging
  • Support for Modbus TCP, WiFi (option)
  • Compact size
  • Panel mount or DIN rail options
  • Built-in web server
  • 7 pole terminal block for all signals and power connections
  • Both RS-422 and RS-485 support
  • Wide temperature range -30°C to +60°C (-22°F  to 140°F)
  • External jumpers to enable TX/RX termination resistors
  • UL, CE, RoHS certified
  • OEM and custom versions available (Call for information)

Documents and Drivers

Documentation

GRID485 User Guide

GRID485 Product Comparison Guide

GRID485 Pinout Information

GRID45 Modbus User Guide

GRID45: The Ultimate Multi-Protocol Solution for Industrial Automation

Downloads

Grid Connect Device Manager Software

Specifications

CPU

32-bit microprocessor

Firmware

Upgradeable via HTTP

Interfaces

  • Serial:  RS485/422. Baudrate software selectable (300 to 921600)
  • Ethernet:  IEEE802.3/802.3u, 10Base-T or 100Base-TX (Auto-sensing, Auto-MDIX), RJ45
  • Wi-Fi:  802.11 b/g/n, 2.4 GHz, Client Station and SoftAP,  PCB antenna standard

Serial Line Formats

7 or 8 data bits,  1-2 Stop bits, Parity: odd, even, none

Protocols Supported

IPv4, ARP, UDP, TCP, Telnet, ICMP, DHCP, BOOTP, Auto IP, and HTTP. Optional industrial protocols.

Power Input

8VDC to 24VDC, approximately 2.5 W

LEDs

Ethernet activity, link and power

Management

Internal web server, Telnet login, HTTP

Security

  • Access: Password protection
  • Encryption: Configurable 128, 192, 256-bit

Internal Web Server

Server configuration and diagnostic web pages

Weight

 1.8oz

Dimensions

2.9 x 1.7 x 0.83 in (74.5 x 43 x 21 mm)

Material

Case: Flame Retardant

Temperature range

Operating range: -30°C to +60°C (-22°F  to 140°F)

Relative Humidity

Operating: 5% to 95% non-condensing

Included Software

Windows™/Mac/Linux based Device Manager tool

UL Certification E357346-A1

IEC 62368-1:2018
