RFID Swing Handle Lock Sensor
RFID Swing Handle Lock Sensor
Product Images
Handles
-
$205.00
-
$400.00
We Have You Covered
Product Information
Product Description

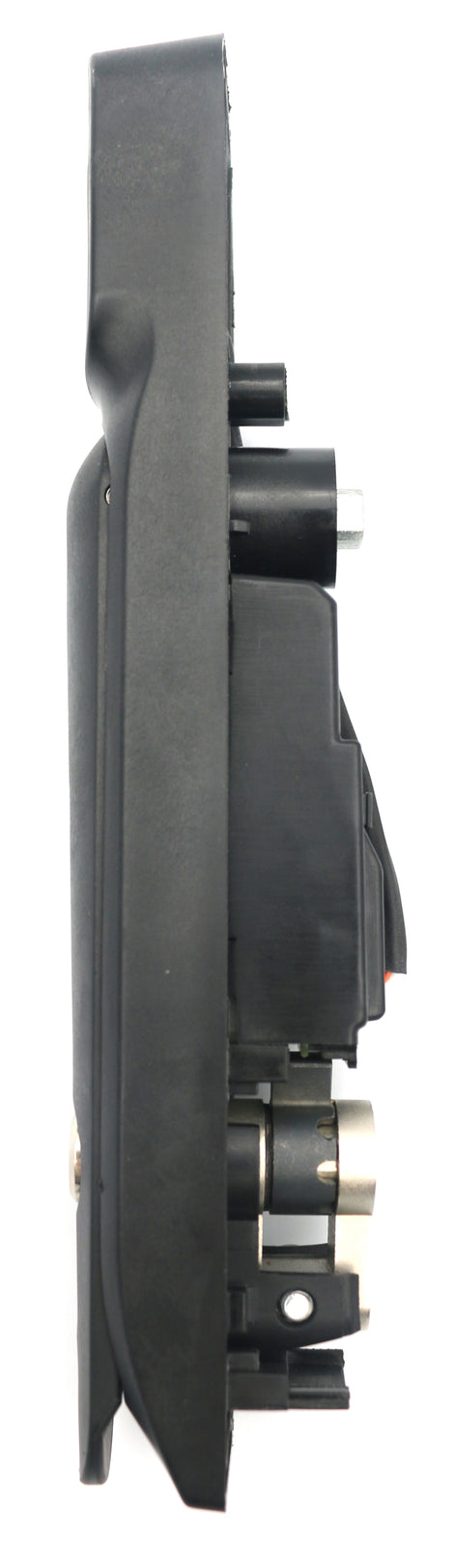

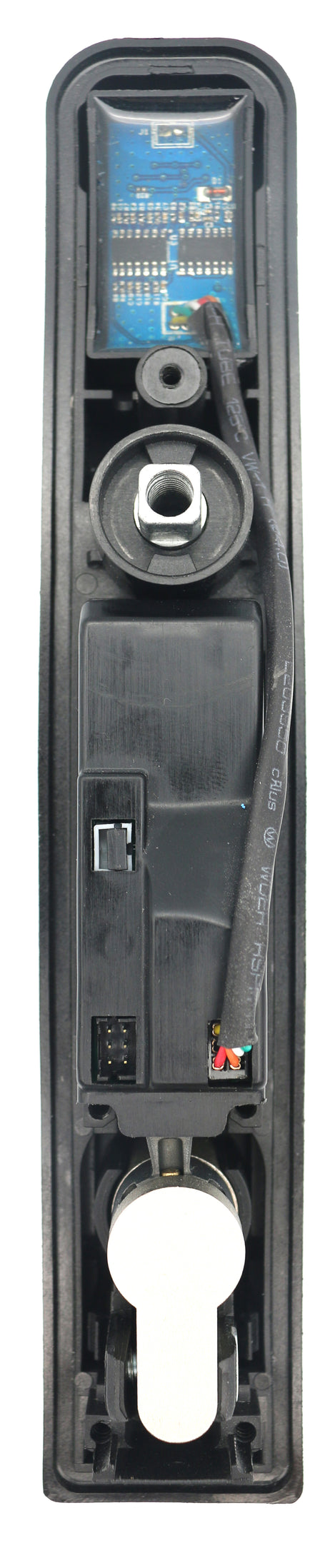

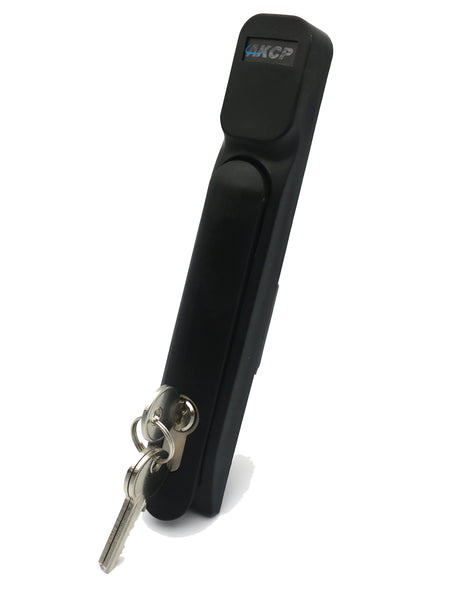

The Swing Handle Lock is compatible with a wide range of industry standard computer cabinets, making it a simple to install upgrade for a data center. Equipped with an RFID reader, you can control and monitor access to your computer cabinets from the centralized software platform (AKCPro Server).
Keep an audited trail of who entered what cabinet and when, how long they were there and be alerted if cabinets are left unlocked. The security sensor can monitor side panels. A manual keylock override is provided and also monitored for use.
Swing Handle Lock is compatible with all sensorProbe+ base units, with a maximum of 12 handles per device. Use 2 handles for controlling access to both front and rear of the cabinet.
1 Handle Package includes
- 1x RFID Swing Handle Lock
- Security Sensor
- 2x RFID Cards
2 Handle Bundle Package includes
- 2x RFID Swing Handle Locks
- Security Sensor
- 2X RFID Cards
Order Summary
SKU |
Handles
|
Manufacturer Part # (MPN) |
---|---|---|
GC-AK-SHL | 1 Handle | SHL |
GC-AK-SHL01 | 2 Handle Bundle | SHL01 |
Features
- Backlit AKCP logo displays lock status (normal, access granted, access denied)
- RFID Proximity card reader
- Single CAT5 cable connection provides communication and power
- Industry standard size. Fits most computer cabinets from major manufacturers
- Manual keylock override gives access in the event of power failure
Documents and Drivers
Documentation
RFID Swing Handle Lock Sensor Datasheet
Specifications
Access Control
Up to 500 users
Cable Length
Maximum: Run length is 12 feet (5 meters) with approved low capacitance shielded cable or UTP
Communications Cable
RJ-45 jack to sensor using UTP CAT5e/6 cable
Dimensions
210.6 x 37.0 x 43.8 mm (8.29 x 1.46 x 1.72 in)
Humidity
Ambient: 10%-90%
Indicator LED
RGB Color LED : Lock status and Access Control status
Power
Powered by the sensorProbe+ familiy units. No additional power needed
Power Consumption
- Typical 0.35 mWatt, 70 mA
- Peak 1.75 mWatt, 350 mA
Proximity Reading Range
0-3cm
Supported Cards
EM-Card, 125Khz Proximity cards, 26bits K4100/EM4100/EM4200/T5577
Temperature Range
Ambient: -25°C to +75°C (-13°F to +167°F)
Voltage
Working: DC 5V
